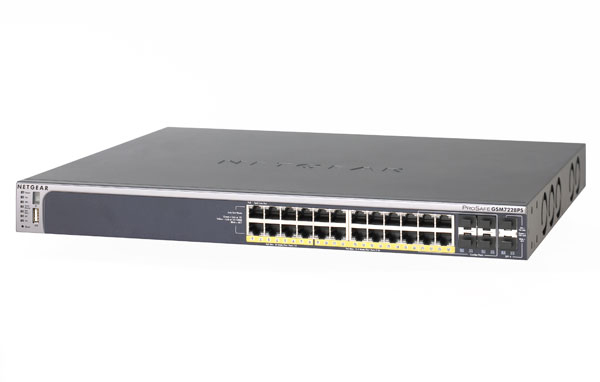

NETGEAR GSM7228PS-100EU network switch Managed L2+ Power over Ethernet (PoE) 1U Grey

Model GSM7228PS-100EU

82 specifications

ProcessorPowerPC MPC8633
Memory256 MB
Speed10 Gbit/s
ConnectivityWired
Noise44 dB
Type1U

See all specifications

Overview

Processor: PowerPC MPC8633
Memory: 256 MB
Speed: 10 Gbit/s
Connectivity: Wired
Noise: 44 dB
Type: 1U

Brand: NETGEAR
Category: Network Switch
Model: GSM7228PS-100EU
Part number: GSM7228PS-100EU
Also known as: NETGEAR GSM7228PS-100EU network switch Managed L2+ Power over Ethernet (PoE) 1U Grey

Specifications

82 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	MIB-II, Bridge MIB, Eth-like MIB, MIB-SMI v2, VLAN MIB, SMON MIB, Client MIB, Entity MIB v2, RMON 1/2/3/9, PAE-MIB, LLDP MIB, LLDP-MED MIB

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Fiber ports quantity	4
Fiber optic connector	SFP
Console port	RS-232
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Number of VLANs	1024

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX, 100BASE-FX

Data transmission

Specification	Value
MAC address table	8000 entries
Supported data transfer rates	10/100/1000 Mbps
Switching capacity	144 Gbit/s
Throughput	107.1 Mpps
Store-and-forward	Yes
Number of trunks	64
Number of queues	8
Number of static routes	224
Maximum data transfer rate	10 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	6 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, EAP, HTTPS, SSL/TLS, WPA-AES
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	IGMP v1/v2/v3, SNMP v1/v2c/v3, SMI v1/v2, HTTP/1.1, CLI
Data link protocols	LLDP, TLP
Supported network protocols	IP, IPv4, IPv6, TCP/UDP, TFTP, DoS, ICMP, ARP, BOOTP, SNTP, SFTP, BSD, Telnet

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey
LED indicators	LAN, Link, Power, Status, Yes
Safety	CE, CSA, UL/cUL, EN

Performance

Specification	Value
Built-in processor	Yes
Processor model	PowerPC MPC8633
Processor frequency	666 MHz
Memory type	RAM
Internal memory	256 MB
Flash memory	32 MB
Noise level	44 dB
Mean time between failures (MTBF)	211069 h

Power

Specification	Value
Number of power supply units	1
Input voltage	100 - 240 V
Power consumption (typical)	545 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes

Other features

Specification	Value
Latency	2.0 - 35.2μs
Dimensions (WxDxH)	440 x 391 x 43 mm
Connectivity technology	Wired
Input frequency	50/60 Hz
Networking features	Gigabit Ethernet
Packet transfer speed	9000
Power LED	Yes
Wi-Fi	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Operating temperature (T-T)	32 - 122 °F
Heat dissipation	260.49 BTU/h

Weight & dimensions

Specification	Value
Weight	6.3 kg

Packaging content

Specification	Value
Cables included	Serial

Certificates

Specification	Value
Certification	CE, FCC, VCCI, EN (CISPR 22), C-Tick
