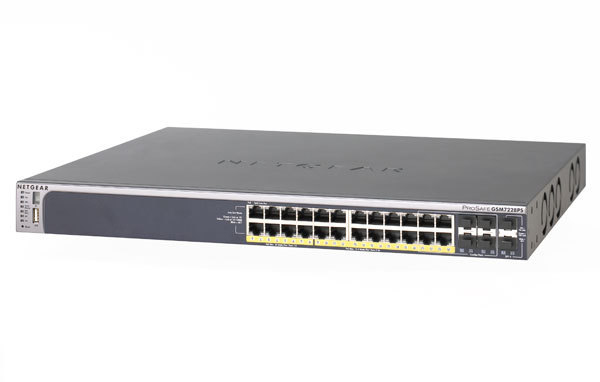

NETGEAR GSM7228PS Managed L2+ Power over Ethernet (PoE)
Model GSM7228PSPart no. GSM7228PS-100NASEAN 606449071696
54 specifications
- ProcessorPowerPC MPC8633
- Speed1000 Gbit/s
- ConnectivityWired
- Noise44 dB
- Weight6.3 kg
- Switch typeManaged
Overview
- Processor
- PowerPC MPC8633
- Speed
- 1000 Gbit/s
- Connectivity
- Wired
- Noise
- 44 dB
- Weight
- 6.3 kg
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM7228PS
- Part number
- GSM7228PS-100NAS
- EAN / UPC
- 606449071696, 6064490716968
- Also known as
- NETGEAR GSM7228PS Managed L2+ Power over Ethernet (PoE)
Specifications
54 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RFC 1724, 1850, 2096, 2787 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX, 100BASE-FX, 10GBASE-LR, 10GBASE-SR |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 144 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1000 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 6 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Safety | CE, CSA, UL |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8633 |
| Processor frequency | 666 MHz |
| Noise level | 44 dB |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 545 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 391 x 42 mm |
| Connectivity technology | Wired |
| Input frequency | 50 - 60 Hz |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
