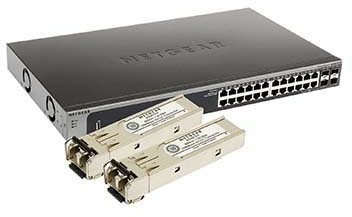

NETGEAR GSM7224SK Managed L2+ Black
Model GSM7224SKPart no. GSM7224SK-200EUSEAN 606449084580
64 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise38.6 dB
- Weight3.65 kg
- ColourBlack
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 38.6 dB
- Weight
- 3.65 kg
- Colour
- Black
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM7224SK
- Part number
- GSM7224SK-200EUS
- EAN / UPC
- 606449084580, 606449084597, 6064490845804
- Also known as
- NETGEAR GSM7224SK Managed L2+ Black
Specifications
64 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4093 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Throughput | 35.7 Mpps |
| Store-and-forward | Yes |
| Number of trunks | 12 |
| Number of queues | 8 |
| Number of static routes | 32 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, HTTP, SMI |
| Supported network protocols | LACP, STP, MSTP, RSTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 333 MHz |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Noise level | 38.6 dB |
| Mean time between failures (MTBF) | 239032 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 38.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 131 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 205 mm |
| Height | 43 mm |
| Weight | 3.65 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, CSA, UL/cUL, FCC, VCCI |
