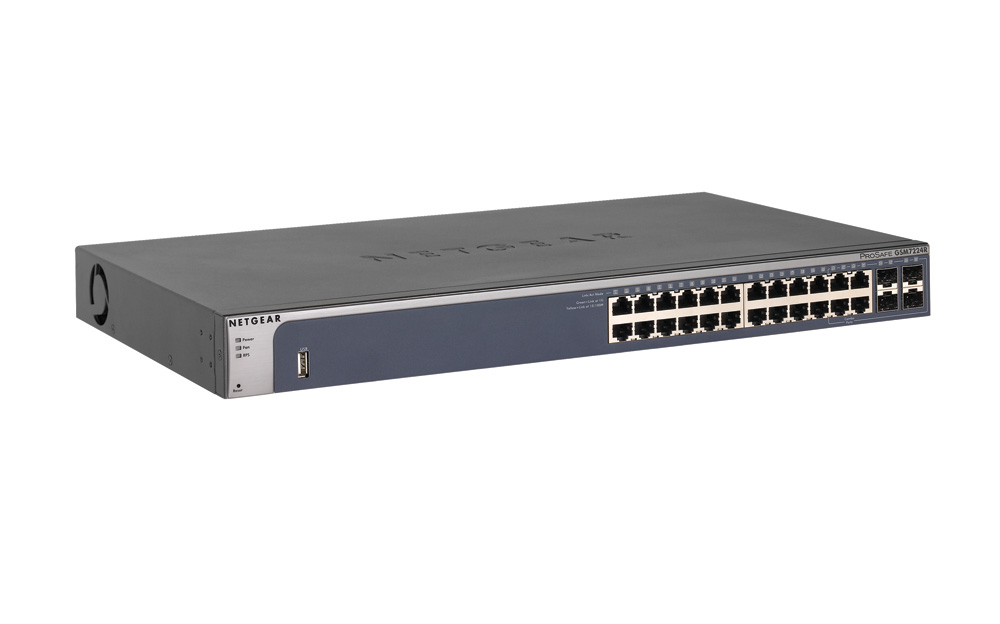

NETGEAR GSM7224-200EUS network switch Managed L2+
Model GSM7224-200EUSEAN 8978467415687
61 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise38.6 dB
- Weight3.65 kg
- Switch typeManaged
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 38.6 dB
- Weight
- 3.65 kg
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM7224-200EUS
- Part number
- GSM7224-200EUS
- EAN / UPC
- 8978467415687, 606449054682, 606449069143, 4054318204083 +3 more
- Also known as
- NETGEAR GSM7224-200EUS network switch Managed L2+
Specifications
61 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC 1213, RFC 1493, RFC 1643 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1024 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.75 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1, v2c, v3, IGMP v1, v2, v3, DHCP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | SNTP, RMON 1, 2, 3, 9, BOOTP, HTTP & HTTPS, LLDP, LLDP-MED, GARP, GVRP, GMRP, TFTP, SFTP, SCP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Safety | CE, EN 60950-1, UL/cUL 60950-1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Noise level | 38.6 dB |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 20 us |
| Dimensions (WxDxH) | 440 x 205 x 43 mm |
| Connectivity technology | Wired |
| Bandwidth | 48 Gbit/s |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power supply | 38.5 W |
| Connectivity LEDs | Yes |
| Dimensions (W x D x H) (imperial) | 439.4 x 205.7 x 40.6 mm (17.3 x 8.1 x 1.6") |
| Electromagnetic emissions | CE, EN 55022 Class A, EN 55024, FCC Part 15 Class A, VCCI Class A, C-Tick |
| Weight (imperial) | 3.64 kg (8.03 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 131 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.65 kg |
