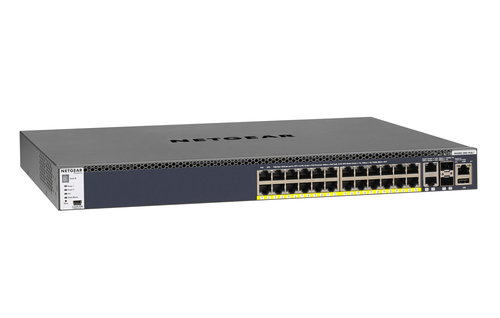

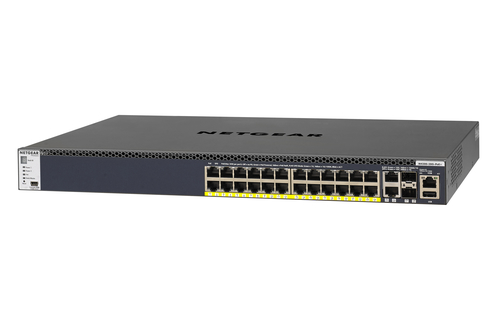

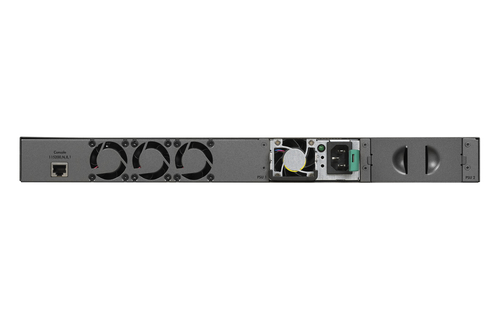

NETGEAR GSM4328PA Managed L2/L3/L4
10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Model GSM4328PAPart no. GSM4328PA-100NESEAN 606449112771
55 specifications
- Memory1024 MB
- Noise39.8 dB
- Type1U
- Weight5.09 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 1024 MB
- Noise
- 39.8 dB
- Type
- 1U
- Weight
- 5.09 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM4328PA
- Part number
- GSM4328PA-100NES
- EAN / UPC
- 606449112771, 10606449112778
- Also known as
- NETGEAR GSM4328PA Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Specifications
55 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| IP routing | Yes |
| Auto-sensing | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 357 Mpps |
| Latency (10 Gbps) | 2.74 µs |
| Number of static routes | 64 |
| Jumbo frames support | Yes |
| Packet buffer memory | 16 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 1 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 39.8 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 110 - 240 V |
| Power consumption (typical) | 577 W |
| Power consumption (max) | 833.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 480 W |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 196988 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.09 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
