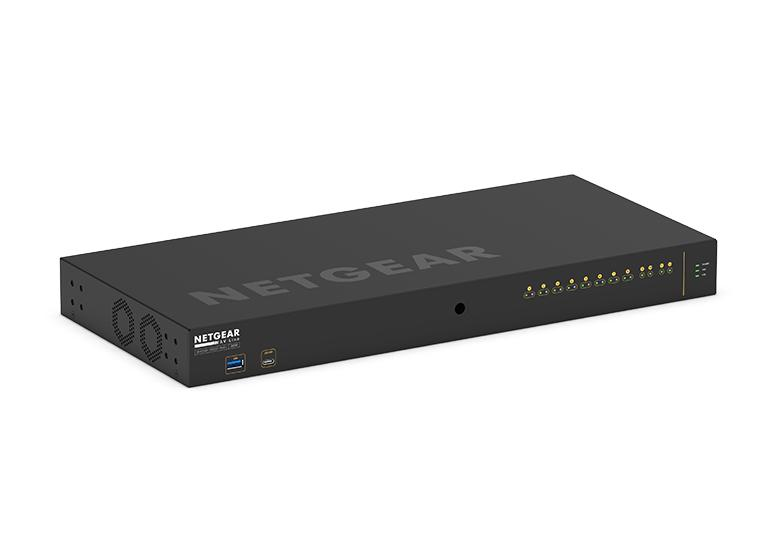

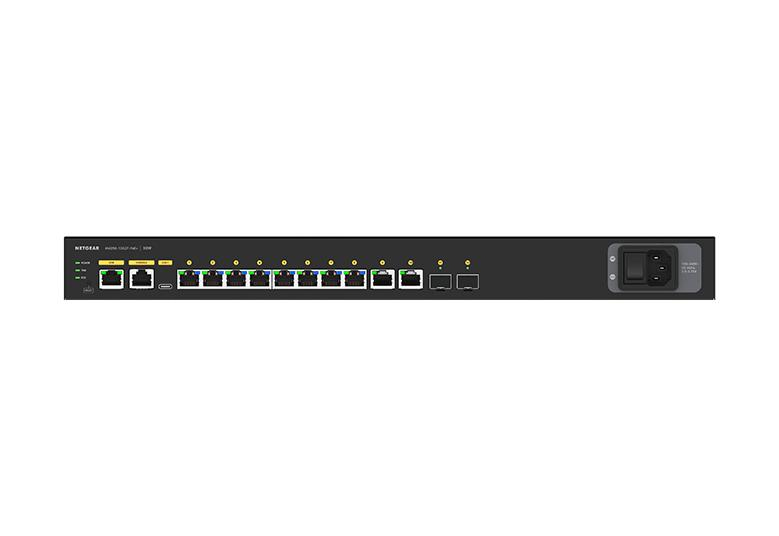

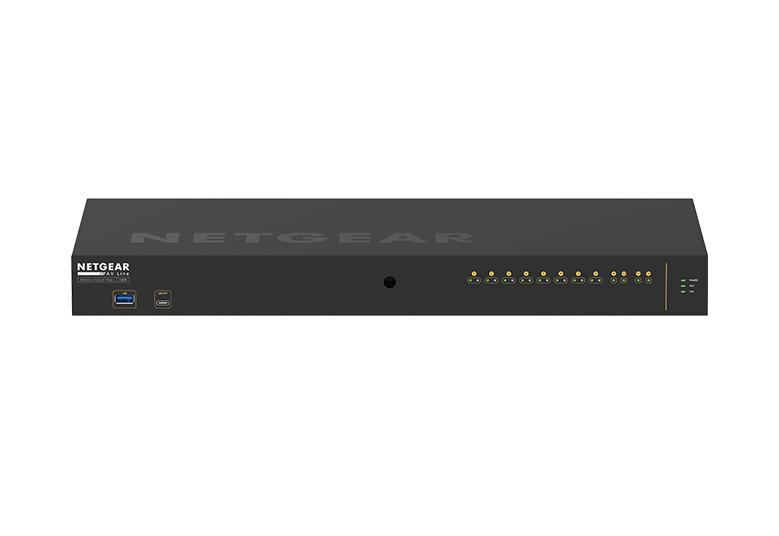

8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch
Model GSM4212P-111EUSEAN 606449159691
61 specifications
- ProcessorARM Cortex-A9
- Memory2048 MB
- Noise30.06 dB
- Type1U
- Weight2.85 kg
- ColourBlack
Overview
- Processor
- ARM Cortex-A9
- Memory
- 2048 MB
- Noise
- 30.06 dB
- Type
- 1U
- Weight
- 2.85 kg
- Colour
- Black
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GSM4212P-111EUS
- Part number
- GSM4212P-111EUS
- EAN / UPC
- 606449159691
- Also known as
- NETGEAR 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch
Specifications
61 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Throughput | 17.86 Mpps |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 2.27 µs |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | PoE, Power, Status |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 30.06 dB |
| Mean time between failures (MTBF) | 778769 h |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 559.555 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 43.2 mm |
| Weight | 2.85 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
