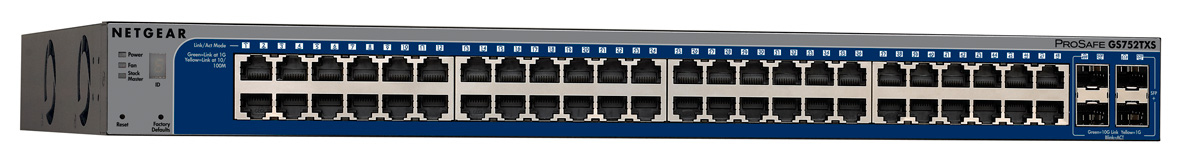

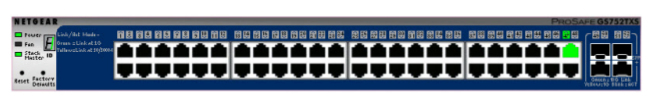

NETGEAR GS752TXS Managed L3
Model GS752TXSPart no. GS752TXS-100EUSEAN 606449079869
60 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight4.5 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 4.5 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS752TXS
- Part numbers
- GS752TXS-100EUS, GS752TXS
- EAN / UPC
- 606449079869, 5054629265413, 6064490798698
- Also known as
- NETGEAR GS752TXS Managed L3
Specifications
60 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC 1213, RFC 1643, RFC 1493 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP/SFP+ slots quantity | 4 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LRM |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, v2c, v3; SNTP, DNS, HTTPS, IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| LED indicators | Fan fail, Link, Power, Status |
| Safety | CE, CUL 60950/EN 60950 |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 256119 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 77 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 20 ms |
| Dimensions (WxDxH) | 440 x 257 x 43 mm |
| Connectivity technology | Wired |
| Bandwidth | 176 Gbit/s |
| Authentication method | TACACS+ |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 95 |
| Storage relative humidity (H-H) | 95 |
| Operating altitude | 3000 |
| Non-operating altitude | 3000 |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 A, VCCI A, EN 55022 (CISPR 22), EN 55024 (CISPR 24), C-Tick |
What people say
Reviews & ratings
NETGEAR GS752TXS Managed L3
No reviews yet
Be the first to tell others how NETGEAR GS752TXS Managed L3 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR GS752TXS Managed L3
All network switch comparisons- NETGEAR GS752TXS Managed L3 vsNETGEAR ProSafe GS752TXSCompare specs
- NETGEAR GS752TXS Managed L3 vsNETGEAR GS110T Managed BlackCompare specs
- NETGEAR GS752TXS Managed L3 vsNETGEAR ProSafe FS752TPCompare specs
- NETGEAR GS752TXS Managed L3 vsNETGEAR GS108PE KitCompare specs

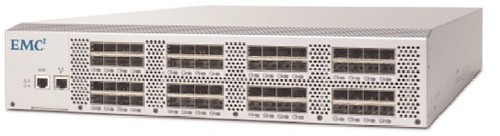

- NETGEAR GS752TXS Managed L3 vsEMC DS-4900B SilverCompare specs

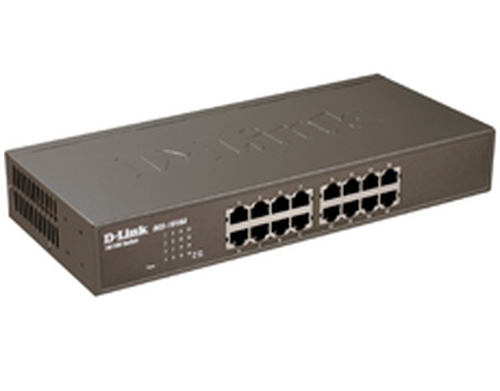

- NETGEAR GS752TXS Managed L3 vsD-Link DES-1016A network switch Unmanaged BrownCompare specs
