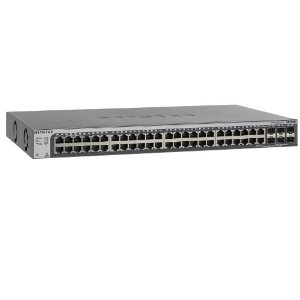

NETGEAR GS752TSB Managed L3 Gigabit Ethernet (10/100/1000) Black

NETGEAR GS752TSB Managed L3 Gigabit Ethernet (10/100/1000) Black

Model GS752TSBPart no. GS752TSB-100EUSEAN 6064490848010

60 specifications

Memory128 MB
Speed1 Gbit/s
Weight4.31 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48

See all specifications

Overview

Memory: 128 MB
Speed: 1 Gbit/s
Weight: 4.31 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48

Brand: NETGEAR
Category: Network Switch
Model: GS752TSB
Part number: GS752TSB-100EUS
EAN / UPC: 6064490848010, 606449048995, 606449084801, 3578223132787 +2 more
Also known as: NETGEAR GS752TSB Managed L3 Gigabit Ethernet (10/100/1000) Black

Specifications

60 specifications in 14 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	RFC 1213, RFC 1643, RFC 1493, RFC 2131

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
Combo SFP ports quantity	2
SFP module slots quantity	4
SFP/SFP+ slots quantity	6
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroring	Yes
Full duplex	Yes
Auto-negotiation	Yes
Auto-sensing	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	256

Data transmission

Specification	Value
MAC address table	16000 entries
Supported data transfer rates	10/100/1000 Mbps
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Packet buffer memory	2 MB

Security

Specification	Value
DHCP features	DHCP client
IGMP snooping	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS

Protocols

Specification	Value
Management protocols	SNMP v1, v2c, v3

Design

Specification	Value
Stackable	Yes
Product colour	Black
LED indicators	Link

Performance

Specification	Value
Memory type	DDR-SDRAM
Internal memory	128 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	303220 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.4 A
Power consumption (typical)	77 W

Other features

Specification	Value
Bandwidth	56 Gbit/s
Power LED	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	257 mm
Height	43 mm
Weight	4.31 kg

Certificates

Specification	Value
Certification	CE, FCC, VCCI, EN 55022 (CISPR 22), EN 55024 (CISPR 24)

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
