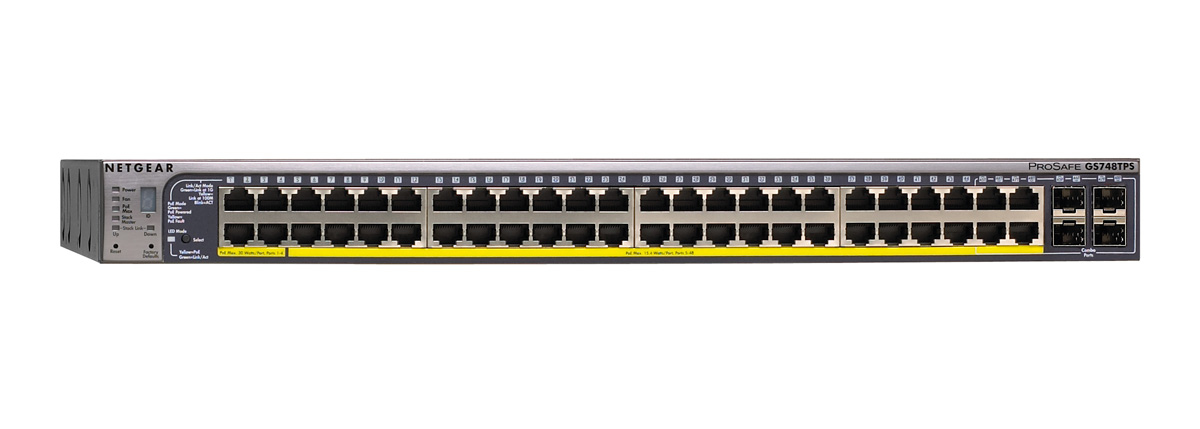

NETGEAR GS748TS3U Managed L3 Power over Ethernet (PoE) Grey
Model GS748TS3UPart no. GS748TS3U-100NASEAN 8032976086551
59 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise43 dB
- Weight7.28 kg
- ColourGrey
- Switch typeManaged
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 43 dB
- Weight
- 7.28 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS748TS3U
- Part numbers
- GS748TS3U-100NAS, GS748TS3U-100EUS
- EAN / UPC
- 8032976086551, 606449085754, 6064490857548, 606449085778
- Also known as
- NETGEAR GS748TS3U Managed L3 Power over Ethernet (PoE) Grey
Specifications
59 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| HDMI stacking ports | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 128 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10, 100, 1000 |
| Switching capacity | 1000 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 6 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | TACACS+, SNMP v1, v2c, v3 |
| Supported network protocols | LLDP-MED, SNTP, RMON 1, 2, 3, 9 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Fan fail, PoE |
| Safety | CE, CUL 6095, CB, CCC |
| Electromagnetic compatibility | CE, FCC, VCCI, EN 55022, EN 55024, C-Tick, CCC |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Noise level | 43 dB |
| Mean time between failures (MTBF) | 143890 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 384 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 431 x 43 mm |
| Connectivity technology | Wired |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 431 mm |
| Height | 43 mm |
| Weight | 7.28 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
