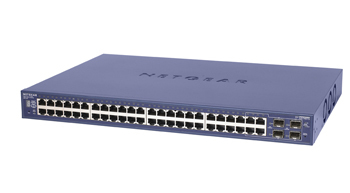

NETGEAR GS748TS Managed
Model GS748TSPart no. GS748TS-100NASEAN 606449049480
43 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight5.16 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 5.16 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS748TS
- Part number
- GS748TS-100NAS
- EAN / UPC
- 606449049480
- Also known as
- NETGEAR GS748TS Managed
Specifications
43 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 128 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.128 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 125500 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 78.36 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 20 μs |
| Dimensions (WxDxH) | 440 x 300 x 43.2 mm |
| Connectivity technology | Wired |
| Bandwidth | 96 Gbit/s |
| Authentication method | IEEE 802.1x |
| Networking features | Gigabit Ethernet |
| Power requirements | 100 - 240 V AC, 50 - 60 Hz |
| I/O ports | 2 x HDMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.16 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE mark FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22) EN 55024 (CISPR 24) C-Tick CUL 60950 EN 60950 |
