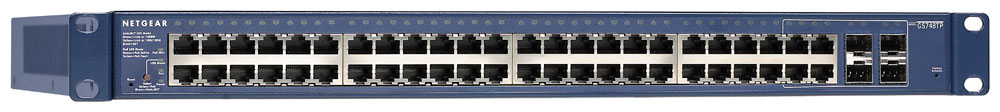

NETGEAR GS748TP Managed Power over Ethernet (PoE)
Model GS748TPPart no. GS748TP-100NASEAN 999992854206
41 specifications
- Memory3 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise44.8 dB
- Weight6.6 kg
- Switch typeManaged
Overview
- Memory
- 3 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 44.8 dB
- Weight
- 6.6 kg
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS748TP
- Part numbers
- GS748TP-100NAS, GS748TP-100EUS, GS748TP
- EAN / UPC
- 999992854206, 606449051438, 5051749447750, 5051964011699 +3 more
- Also known as
- NETGEAR GS748TP Managed Power over Ethernet (PoE)
Specifications
41 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| MIB support | RFC 1213 MIB II, RFC 1643, RFC 1493 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Safety | CE mark, cUL IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 3 MB |
| Noise level | 44.8 dB |
| Mean time between failures (MTBF) | 147559 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 465 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Latency | 2900ns |
| Dimensions (WxDxH) | 440 x 438 x 43 mm |
| Connectivity technology | Wired |
| Bandwidth | 96 Gbit/s |
| Authentication method | IEEE 802.1x |
| Networking features | Gigabit Ethernet |
| Power requirements | 100-240VAC/50-60 Hz |
| Electromagnetic emissions | CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.6 kg |
