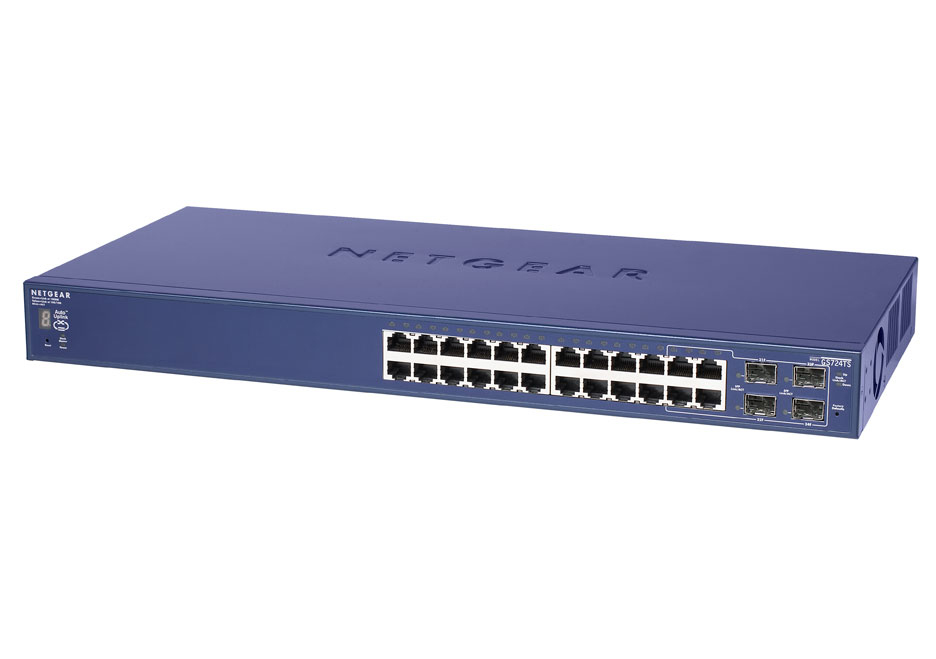

NETGEAR GS724TS-100EUS network switch Managed L3
Model GS724TS-100EUSEAN 606449049428
44 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight2.98 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.98 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS724TS-100EUS
- Part number
- GS724TS-100EUS
- EAN / UPC
- 606449049428, 5052178358518, 6064490494286
- Also known as
- NETGEAR GS724TS-100EUS network switch Managed L3
Specifications
44 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 128 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.128 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Safety | CE, CUL 60950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 35.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 20 μs |
| Dimensions (WxDxH) | 440 x 205 x 43.2 mm |
| Connectivity technology | Wired |
| Bandwidth | 20 Gbit/s |
| Authentication method | IEEE 802.1x |
| Power requirements | 100-240V / 50-60Hz |
| I/O ports | 24 x 10/100/1000 4 x SFP 2 x HDMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 95 |
| Non-operating altitude | 3000 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.98 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE mark FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22) EN 55024 (CISPR 24) C-Tick CUL 60950 EN 60950 |
