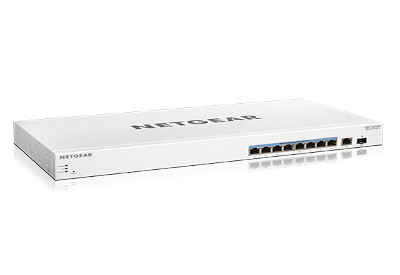

GS710TUP Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Model GS710TUPPart no. GS710TUP-100AJSEAN 10606449145981
63 specifications
- Memory128 MB
- Noise35 dB
- Weight2.99 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
Overview
- Memory
- 128 MB
- Noise
- 35 dB
- Weight
- 2.99 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS710TUP
- Part numbers
- GS710TUP-100AJS, GS710TUP-100EUS, GS710TUP-100NAS
- EAN / UPC
- 10606449145981, 606449145991, 1060644914599, 10606449145998 +2 more
- Also known as
- NETGEAR GS710TUP Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Specifications
63 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 64 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.8 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 32 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 500 MHz |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Noise level | 35 dB |
| Mean time between failures (MTBF) | 643873 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 554 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 480 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1891.36 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 204 mm |
| Height | 43 mm |
| Weight | 2.99 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
