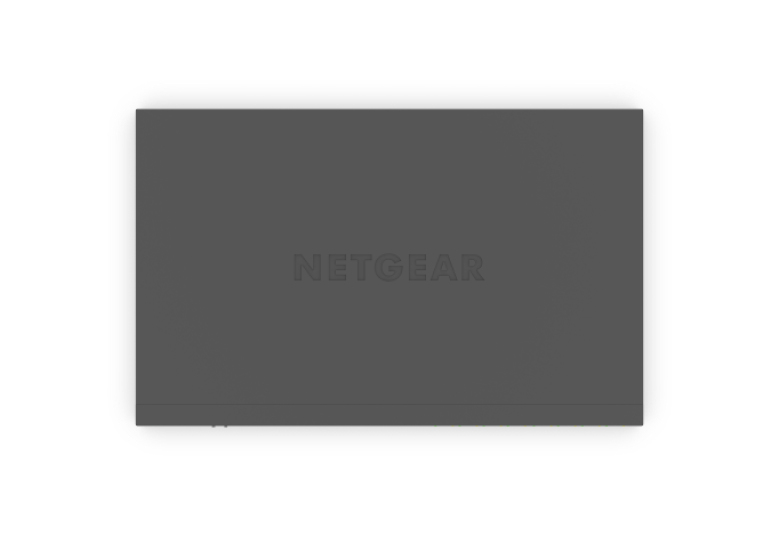

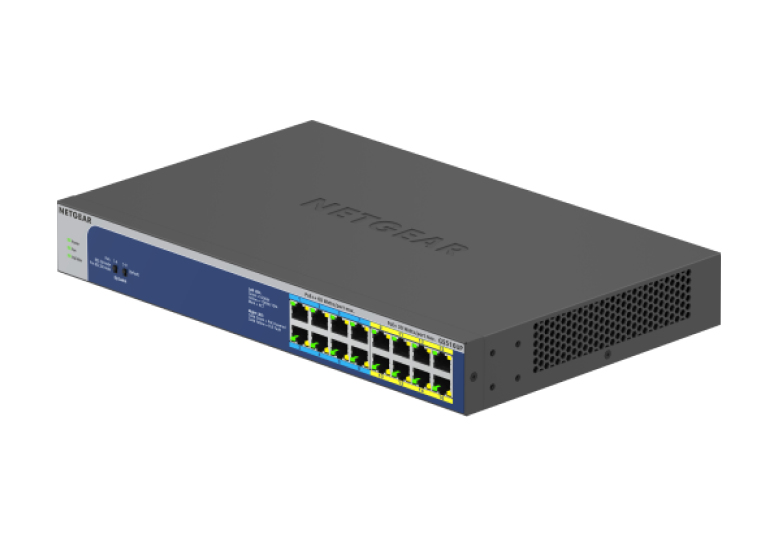

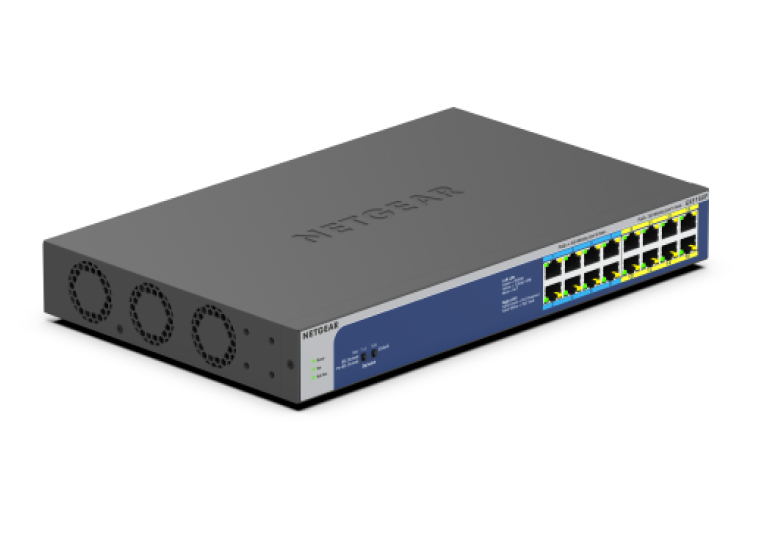

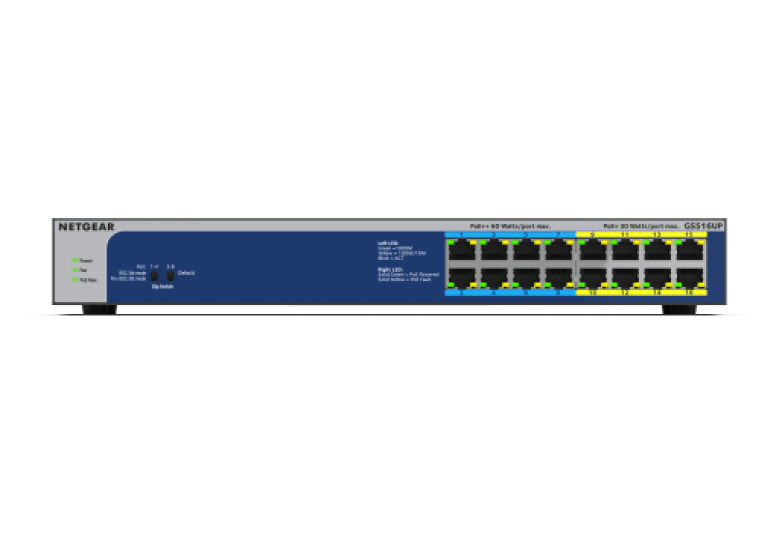

GS516UP-100AJS network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model GS516UP-100AJSEAN 10606449149750
40 specifications
- Weight2.6 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 2.6 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS516UP-100AJS
- Part number
- GS516UP-100AJS
- EAN / UPC
- 10606449149750
- Also known as
- NETGEAR GS516UP-100AJS network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
40 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 12 µs |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8/4 A |
| Power consumption (max) | 456.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 380 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1559.5152 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 390 mm |
| Depth | 220 mm |
| Height | 43 mm |
| Weight | 2.6 kg |
