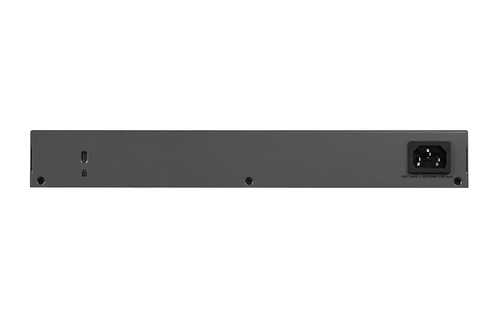

GS510TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model GS510TPPPart no. GS510TPP-100EUSEAN 606449119039
44 specifications
- Weight1.83 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 1.83 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS510TPP
- Part numbers
- GS510TPP-100EUS, GS510TPP-100NAS, GS510TPP-100AJS
- EAN / UPC
- 606449119039, 606449119015, 10606449119012
- Also known as
- NETGEAR GS510TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
44 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Latency (1 Gbps) | 3.313 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 100 |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 512 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 400 MHz |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 190 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 328 mm |
| Depth | 169 mm |
| Height | 43 mm |
| Weight | 1.83 kg |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
