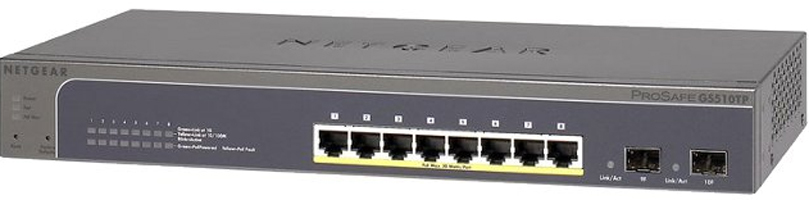

NETGEAR GS510TP Managed Power over Ethernet (PoE) Grey
Model GS510TPPart no. GS510TP-100NASEAN 606449080803
58 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise38 dB
- Weight1.68 kg
- ColourGrey
- Switch typeManaged
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 38 dB
- Weight
- 1.68 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS510TP
- Part numbers
- GS510TP-100NAS, GS510TP-100EUS
- EAN / UPC
- 606449080803, 606449080797, 6064490807970, 6064490808038 +1 more
- Also known as
- NETGEAR GS510TP Managed Power over Ethernet (PoE) Grey
Specifications
58 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| DoS attack prevention | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, HTTP, HTTPS, IGMP |
| Switching protocols | LLDP, MSTP, RSTP, STP, LACP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Grey |
| LED indicators | Link, PoE, Power, Status |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Noise level | 38 dB |
| Mean time between failures (MTBF) | 458124 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 120 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 147 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
Other features
| Specification | Value |
|---|---|
| Latency | 4μs |
| Connectivity technology | Wired |
| Bandwidth | 20 Gbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 328 mm |
| Depth | 169 mm |
| Height | 43 mm |
| Weight | 1.68 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, C-Tick |
What people say
Reviews & ratings
NETGEAR GS510TP Managed Power over Ethernet (PoE) Grey
No reviews yet
Be the first to tell others how NETGEAR GS510TP Managed Power over Ethernet (PoE) Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR GS510TP Managed Power over Ethernet (PoE) Grey

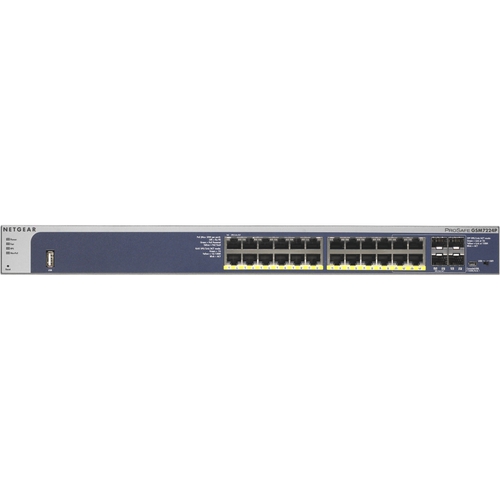

All network switch comparisons- NETGEAR GS510TP Managed Power over Ethernet (PoE) Grey vsNETGEAR ProSafe GSM7224PCompare specs
