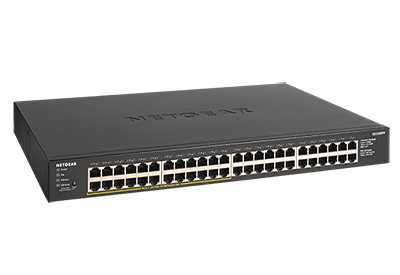

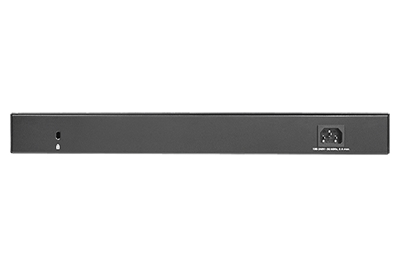

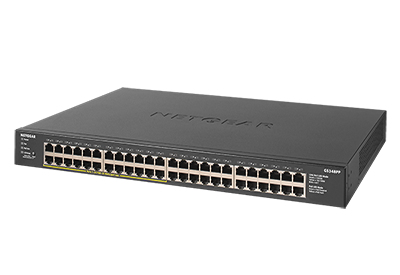

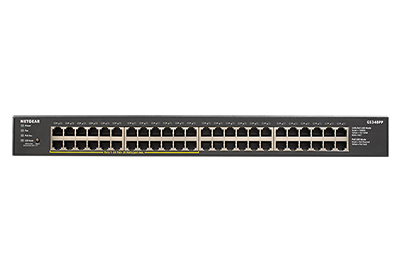

GS348PP-100AJS network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model GS348PP-100AJS
51 specifications
- Weight4.56 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 4.56 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS348PP-100AJS
- Part number
- GS348PP-100AJS
- Also known as
- NETGEAR GS348PP-100AJS network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
51 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Cable length detection | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 96 Gbit/s |
| Forwarding rate | 1.448 Mpps |
| Latency (1 Gbps) | 4 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 570972 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 410 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1402.2 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 310 mm |
| Height | 43 mm |
| Weight | 4.56 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
