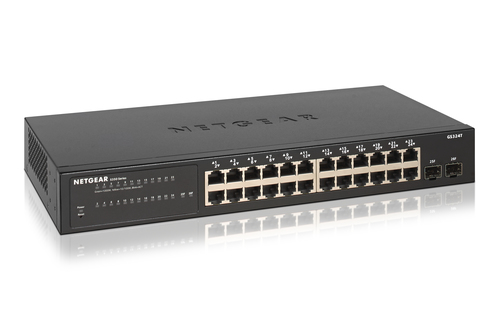

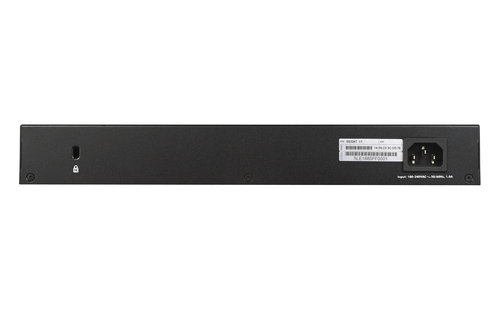

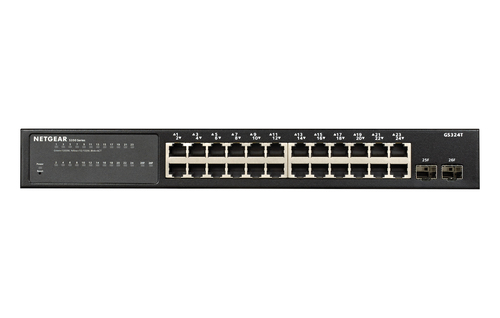

GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black
Model GS324TPart no. GS324T-100EUSEAN 606449135572
62 specifications
- Weight1.62 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Port mirroringYes
- MAC address table16000 entries
Overview
- Weight
- 1.62 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Port mirroring
- Yes
- MAC address table
- 16000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS324T
- Part numbers
- GS324T-100EUS, GS324T-100NAS
- EAN / UPC
- 606449135572, 10606449135579, 606449135558
- Also known as
- NETGEAR GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black
Specifications
62 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Virtual Cable Test (VCT) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Port-based VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| ARP attack prevention | Yes |
| DoS attack prevention | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Power consumption (max) | 13.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 328 mm |
| Depth | 169 mm |
| Height | 43 mm |
| Weight | 1.62 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Package type | Box |
| Package width | 229 mm |
| Package depth | 465 mm |
| Package height | 79 mm |
| Package weight | 2.71 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 270 mm |
| Master (outer) case length | 481 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 271 mm |
| Master (outer) case gross weight | 8.85 kg |
| Products per master (outer) case | 3 pc(s) |
