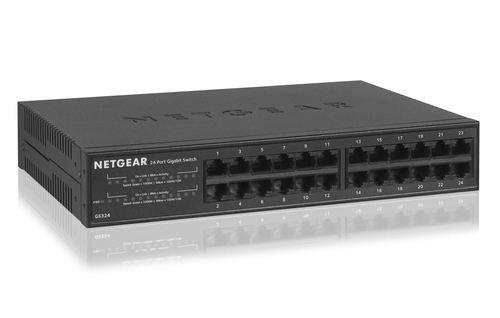

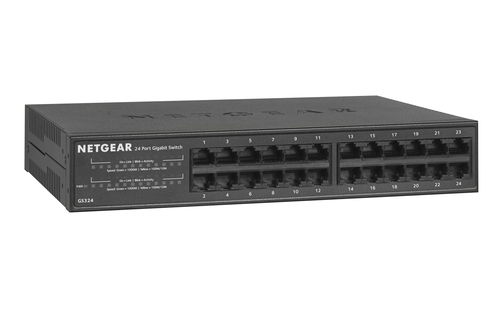

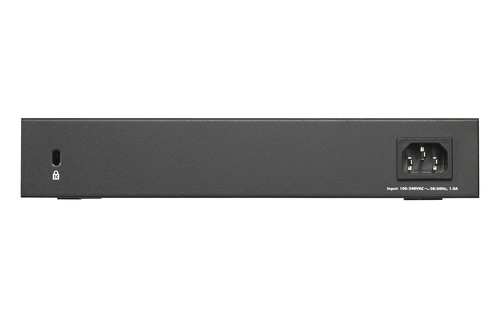

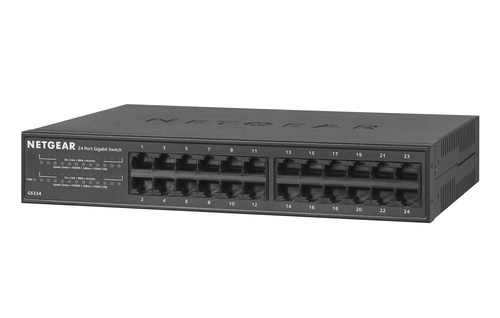

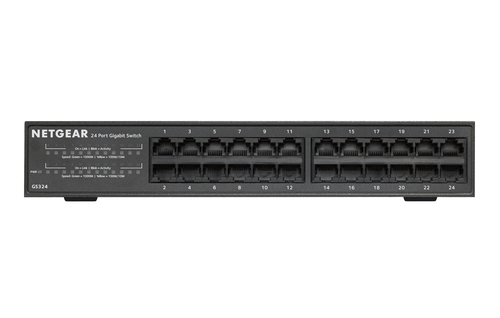

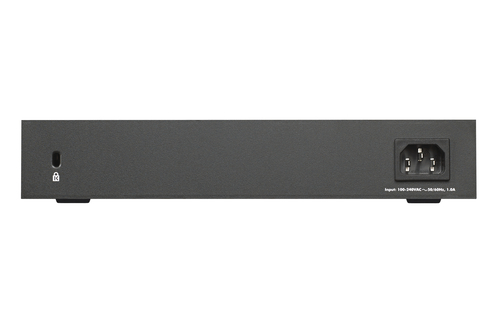

GS324 Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
Model GS324Part no. GS324-200NASEAN 606449151459
32 specifications
- Type1U
- Weight1.31 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 1.31 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS324
- Part numbers
- GS324-200NAS, GS324-100EUS, GS324-200EUS
- EAN / UPC
- 606449151459, 606449110319, 657968550070, 1401197022544 +6 more
- Also known as
- NETGEAR GS324 Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
Specifications
32 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Latency (1 Gbps) | 4.7 µs |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| On/off switch | No |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 1 A |
| Power consumption (max) | 11.1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 3796 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 252 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.31 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
