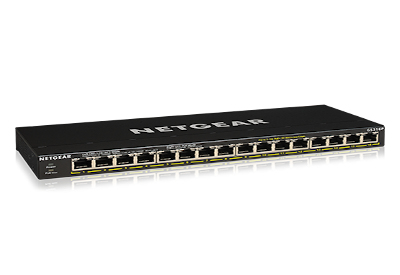

GS316P-100AJS network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model GS316P-100AJSEAN 606449146875
39 specifications
- Weight880 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 880 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS316P-100AJS
- Part number
- GS316P-100AJS
- EAN / UPC
- 606449146875
- Also known as
- NETGEAR GS316P-100AJS network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
39 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 3.7 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 2362192 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 54 V |
| Input current | 2.4 A |
| Power consumption (max) | 127.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 200 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 437.42 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 880 g |
