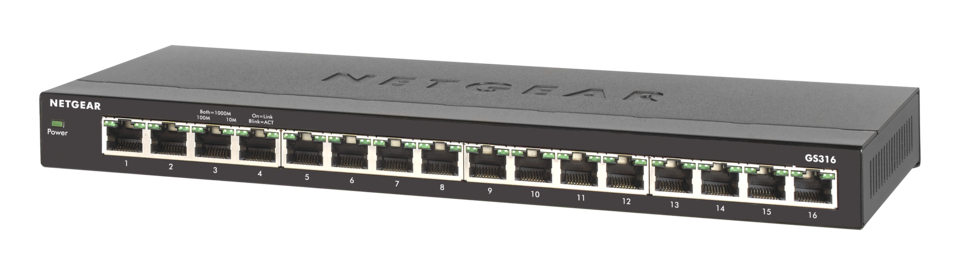

NETGEAR GS316-100NAS network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Model GS316-100NASEAN 606449113129
42 specifications
- Weight840 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 840 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS316-100NAS
- Part number
- GS316-100NAS
- EAN / UPC
- 606449113129
- Also known as
- NETGEAR GS316-100NAS network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Specifications
42 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 32 Gbit/s |
| Latency (1 Gbps) | 3.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| On/off switch | No |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 768 KB |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (max) | 8.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 28.73 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 101 mm |
| Height | 26 mm |
| Weight | 840 g |
