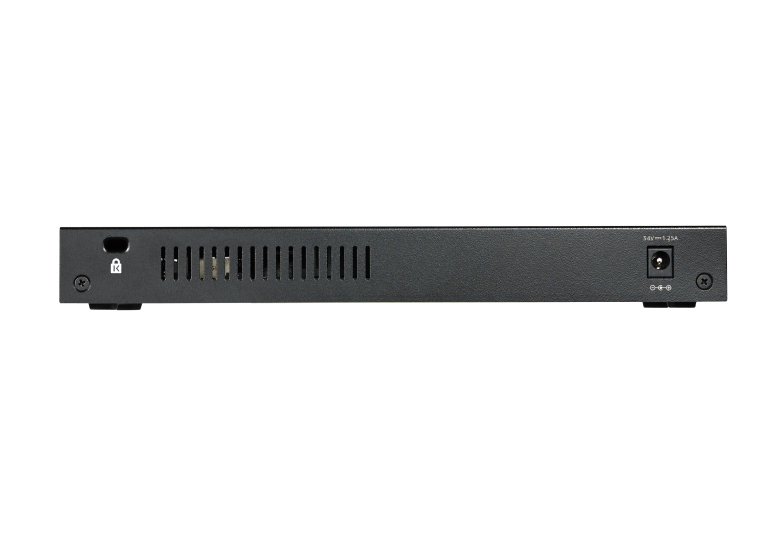

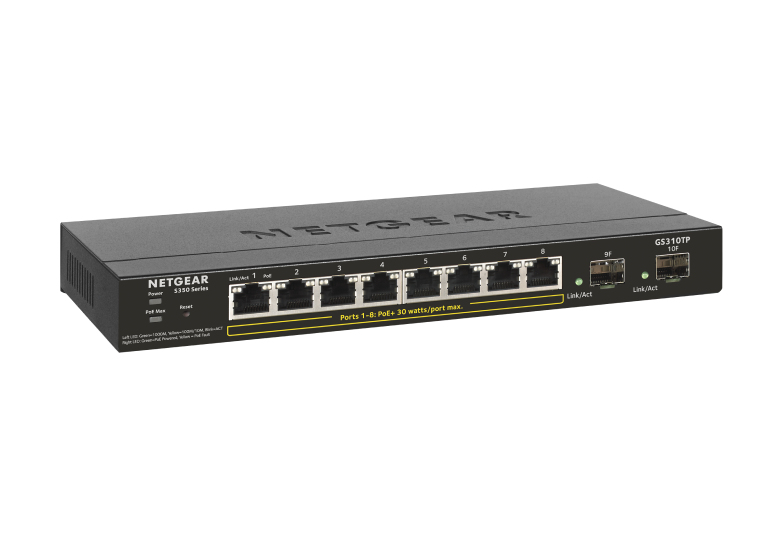

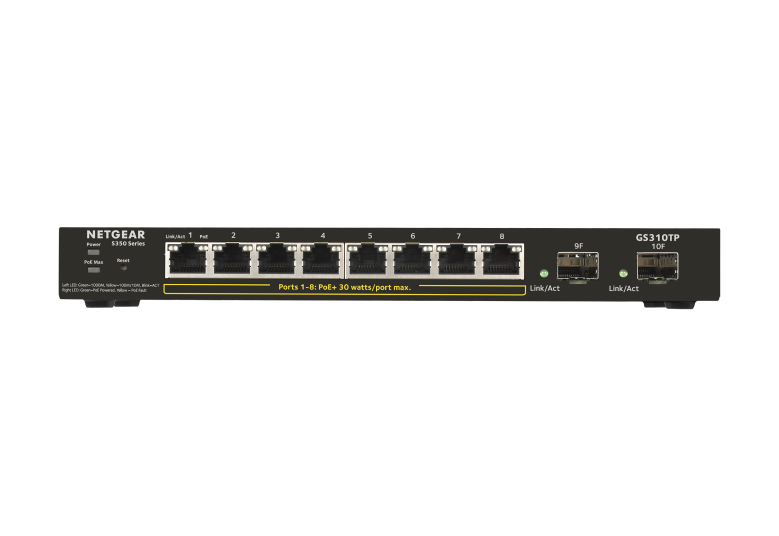

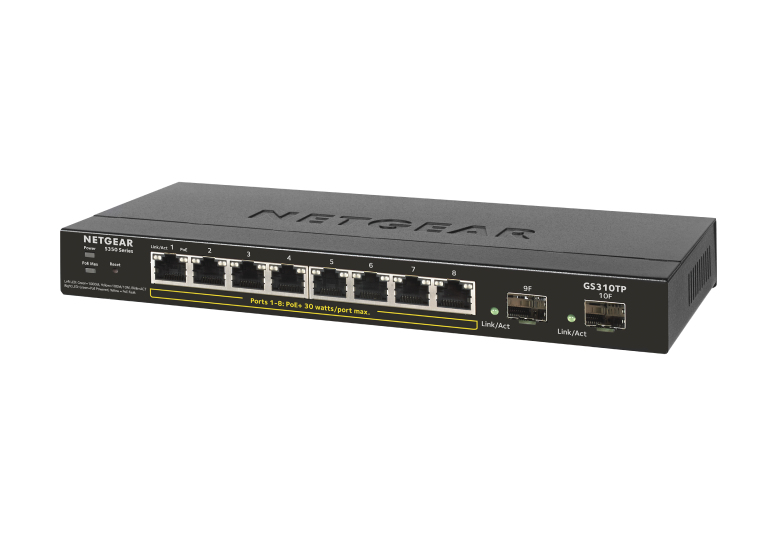

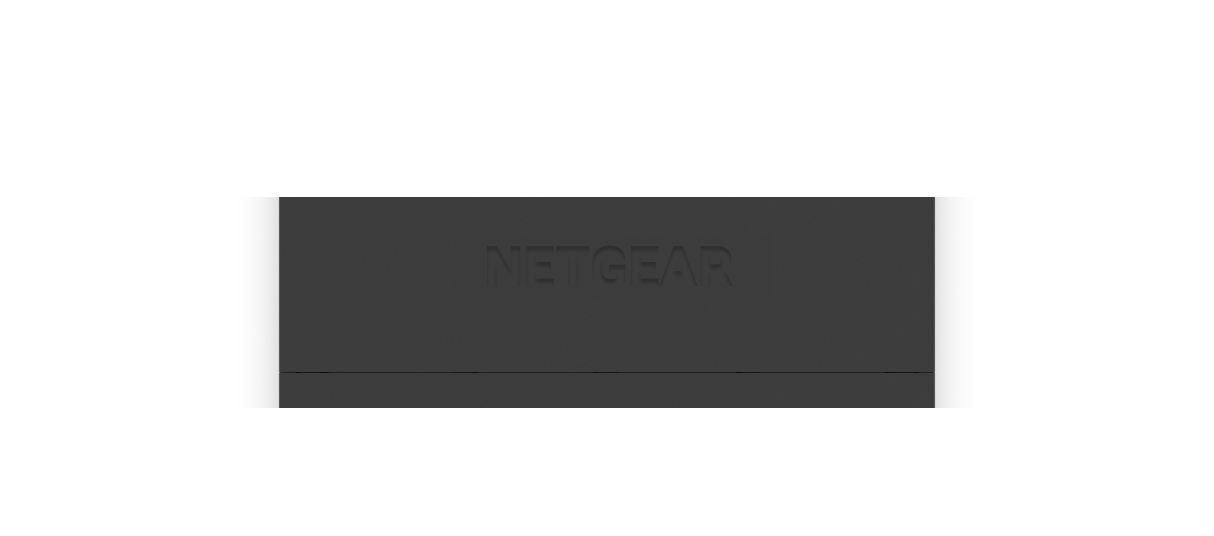

10-Port PoE Gigabit Ethernet Smart Switch (GS310TP)
Model GS310TP-100AJSEAN 10606449135500
66 specifications
- Memory128 MB
- Weight610 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
Overview
- Memory
- 128 MB
- Weight
- 610 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS310TP-100AJS
- Part number
- GS310TP-100AJS
- EAN / UPC
- 10606449135500
- Also known as
- NETGEAR 10-Port PoE Gigabit Ethernet Smart Switch (GS310TP)
Specifications
66 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC1643, RFC1493 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 64 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 100 |
| IGMP snooping | Yes |
| Authentication | Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | HWTACACS+, IEEE 802.1x |
| Loop protection | Yes |
| Password protection | Yes |
| Security algorithms | 802.1x RADIUS, EAP, HTTPS, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 500 MHz |
| Memory type | DDR-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 1081119 h |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 69.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 55 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 263 mm |
| Depth | 101 mm |
| Height | 30 mm |
| Weight | 610 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
