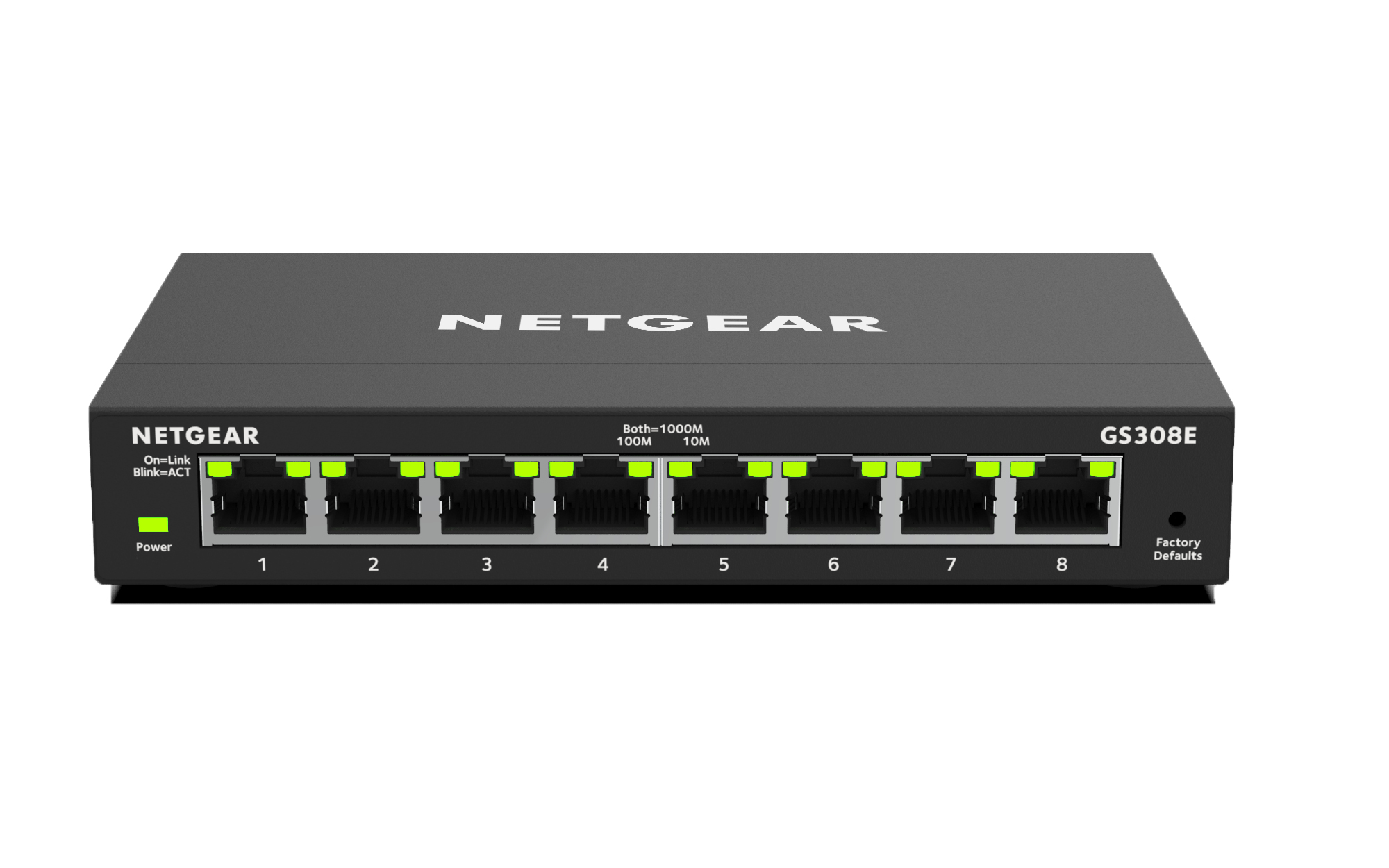

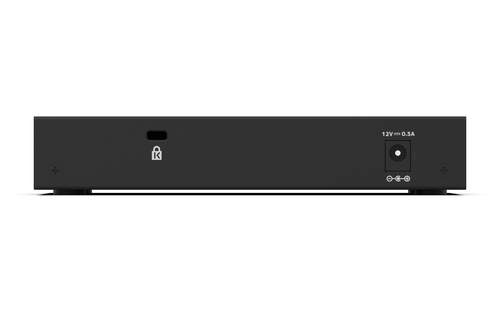

GS308E-100AUS network switch Managed Gigabit Ethernet (10/100/1000) Black
Model GS308E-100AUSEAN 606449140613
54 specifications
- Noise0 dB
- Weight500 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
Overview
- Noise
- 0 dB
- Weight
- 500 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS308E-100AUS
- Part number
- GS308E-100AUS
- EAN / UPC
- 606449140613
- Also known as
- NETGEAR GS308E-100AUS network switch Managed Gigabit Ethernet (10/100/1000) Black
Specifications
54 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Virtual Cable Test (VCT) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | No |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| DoS attack prevention | Yes |
| Loop protection | Yes |
| Password protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed, System |
Performance
| Specification | Value |
|---|---|
| Buffer size | 192 KB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 1638156 h |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 126 mm |
| Package depth | 182 mm |
| Package height | 101 mm |
| Package weight | 800 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 423 mm |
| Master (outer) case length | 448 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 236 mm |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 12 pc(s) |
