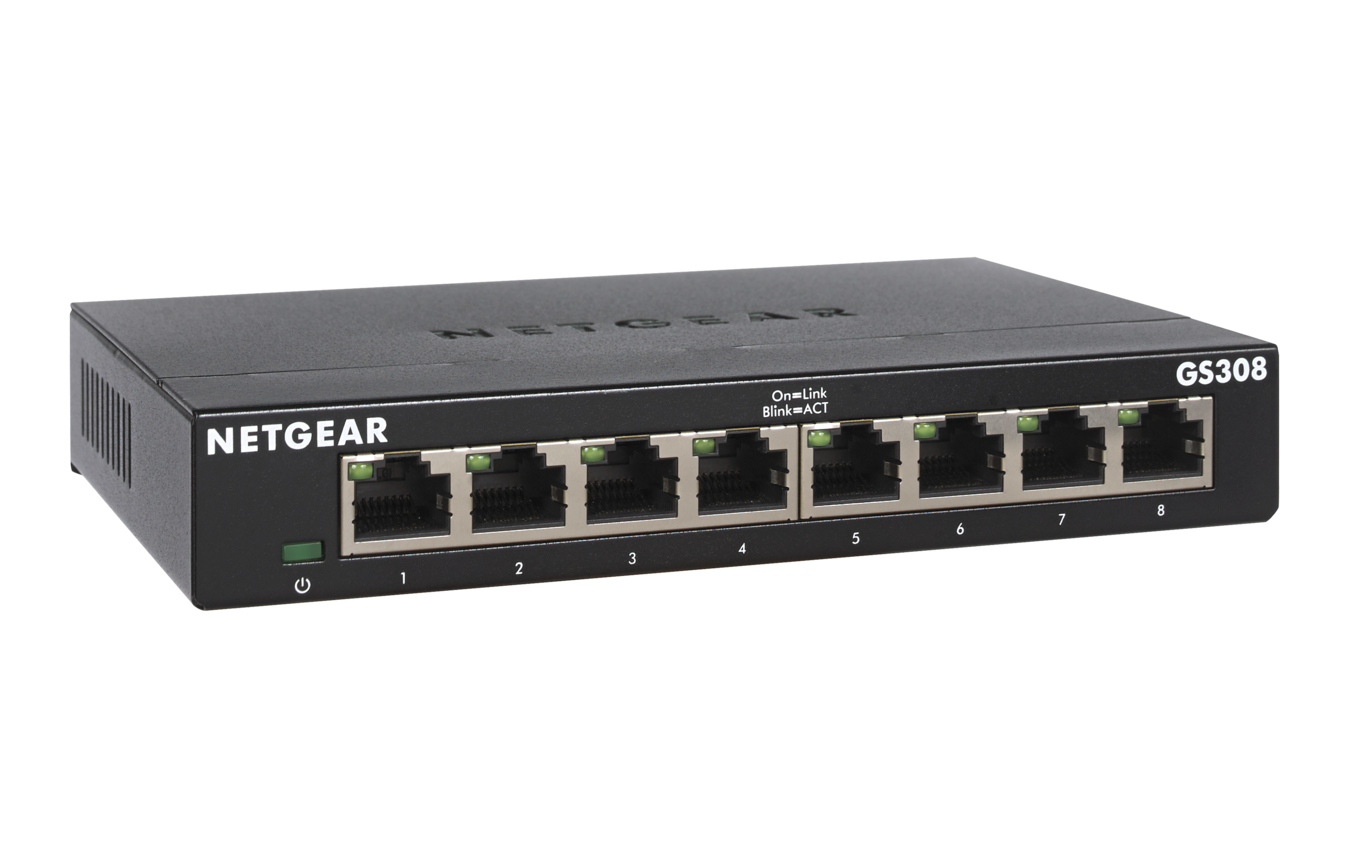

GS308-300PES network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Model GS308-300PESEAN 606449140149
49 specifications
- Weight390 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 390 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS308-300PES
- Part number
- GS308-300PES
- EAN / UPC
- 606449140149
- Also known as
- NETGEAR GS308-300PES network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Cable length detection | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 1.448 Mpps |
| Latency (1 Gbps) | 2.6 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 128 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 3711898 h |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 3.04 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 10.4 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 390 g |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case height | 43.4 cm |
| Shipping (inner) case length | 32.9 cm |
| Shipping (inner) case net weight | 14.6 kg |
| Shipping (inner) case width | 48.6 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Mark FCC Part 15 Class B IC Class B RCM CCC VCCI KC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
