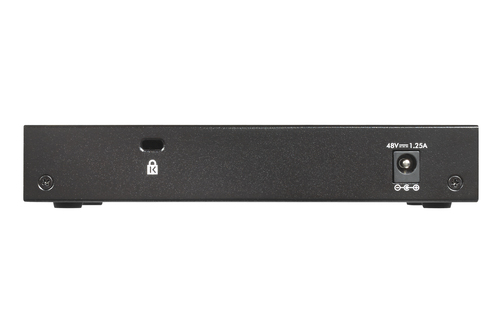

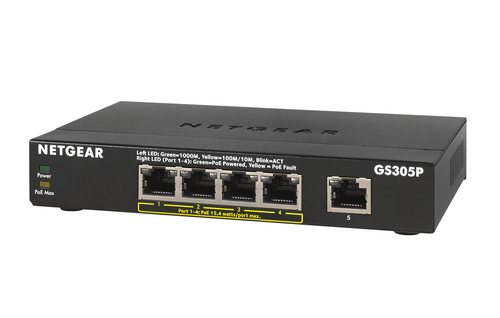

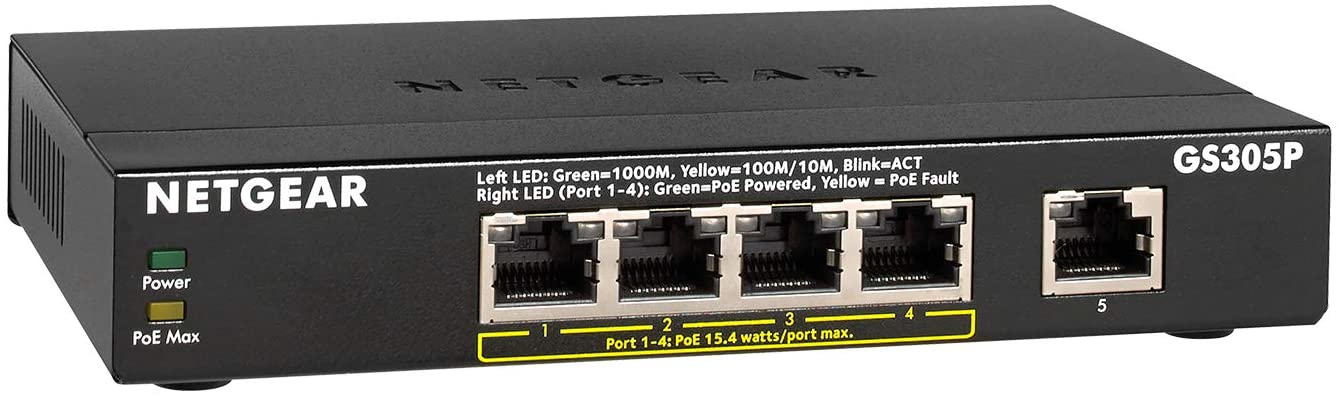

NETGEAR GS305P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

NETGEAR GS305P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model GS305PPart no. GS305P-300AUSEAN 606449163155

46 specifications
  • Weight410 g
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity4
  • 10G supportNo
  • MAC address table2000 entries
See all specifications

Overview

Weight
410 g
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
4
10G support
No
MAC address table
2000 entries
Brand
NETGEAR
Model
GS305P
Part numbers
GS305P-300AUS, GS305P-100PES, GS305P-100UKS, GS305P-100NAS, GS305P-300NAS
EAN / UPC
606449163155, 606449119909, 7227481745630, 606449119916 +1 more
Also known as
NETGEAR GS305P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

46 specifications in 12 groups

Management features

Switch typeUnmanaged
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Full duplexYes
Half duplexYes
Auto MDI/MDI-XYes

Data transmission

MAC address table2000 entries
Switching capacity10 Gbit/s
Forwarding rate1.448 Mpps
Latency (1 Gbps)2.4 µs
Jumbo frames supportYes
Jumbo frames9216
Packet forwarding rate (1 Gbps)1448000 pps
Packet buffer memory0.128 MB

Design

Rack mountingNo
Product colourBlack
LED indicatorsActivity, Link, Power
On/off switchNo

Performance

Buffer size128 KB
Mean time between failures (MTBF)3222482 h

Power

DC input voltage48 V
Input current1.25 A
Input voltage48 V
Power consumption (typical)0.96 W
Power consumption (max)60 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet (PoE) power per port15.4 W
Total Power over Ethernet (PoE) budget55.5 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Heat dissipation205.2 BTU/h

Weight & dimensions

Width158 mm
Depth101 mm
Height29 mm
Weight410 g

Packaging data

Package typeBox

Logistics data

Harmonized System (HS) code85176990
