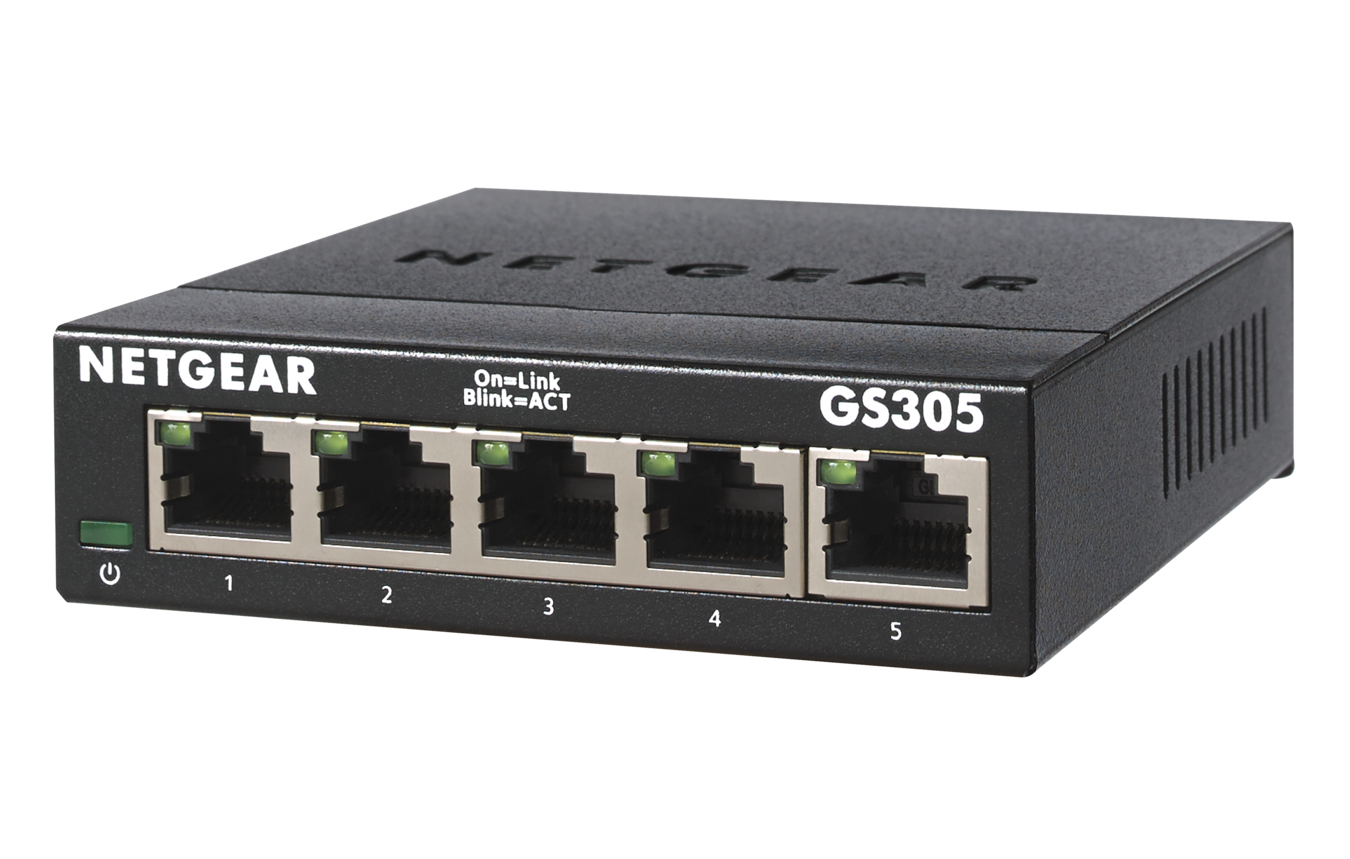

GS305-300PAS network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Model GS305-300PASEAN 606449140088
41 specifications
- Weight250 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 250 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS305-300PAS
- Part number
- GS305-300PAS
- EAN / UPC
- 606449140088
- Also known as
- NETGEAR GS305-300PAS network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Specifications
41 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

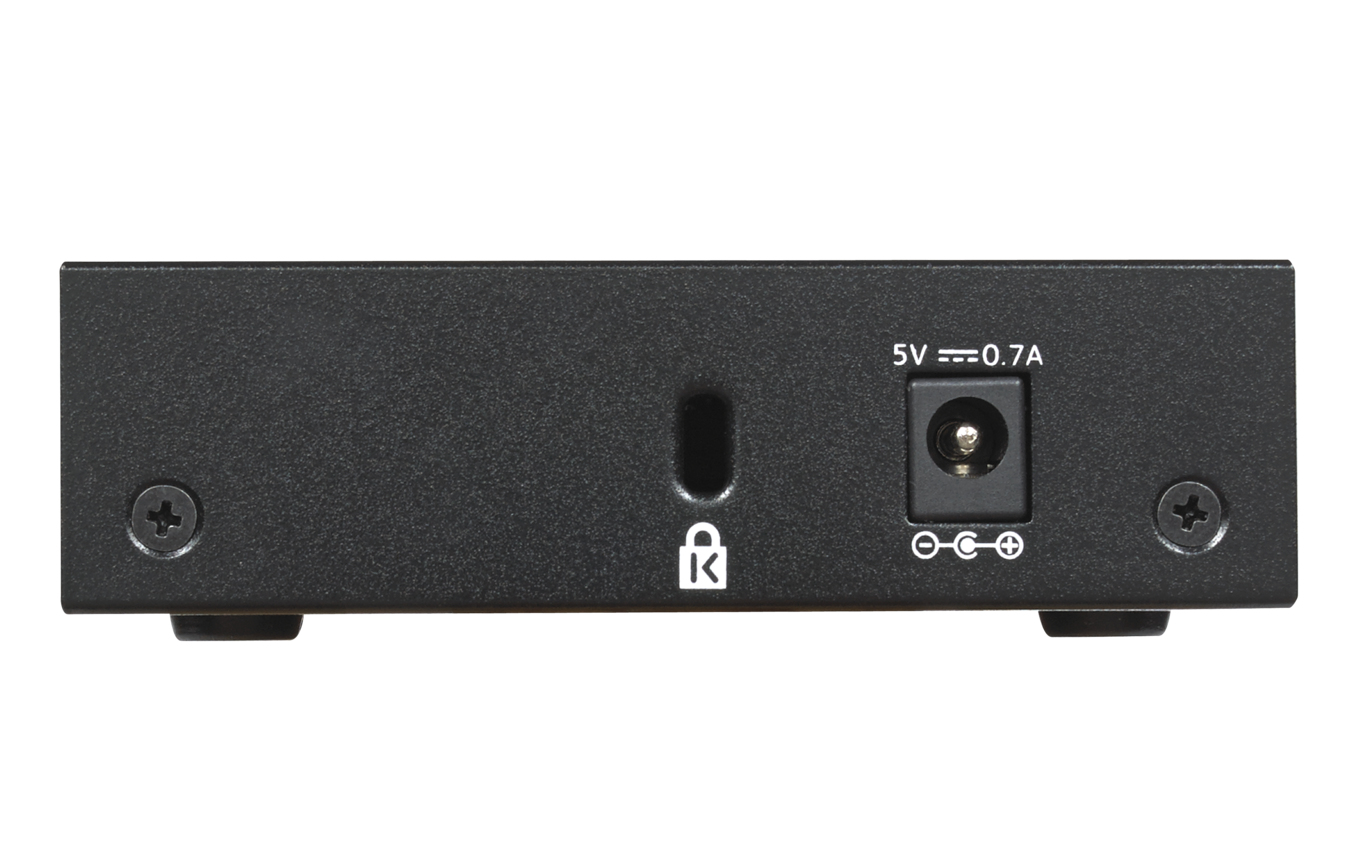

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Cable length detection | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 1.448 Mpps |
| Latency (1 Gbps) | 2.6 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 128 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 3831422 h |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 7.35 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101 mm |
| Depth | 94 mm |
| Height | 29 mm |
| Weight | 250 g |
