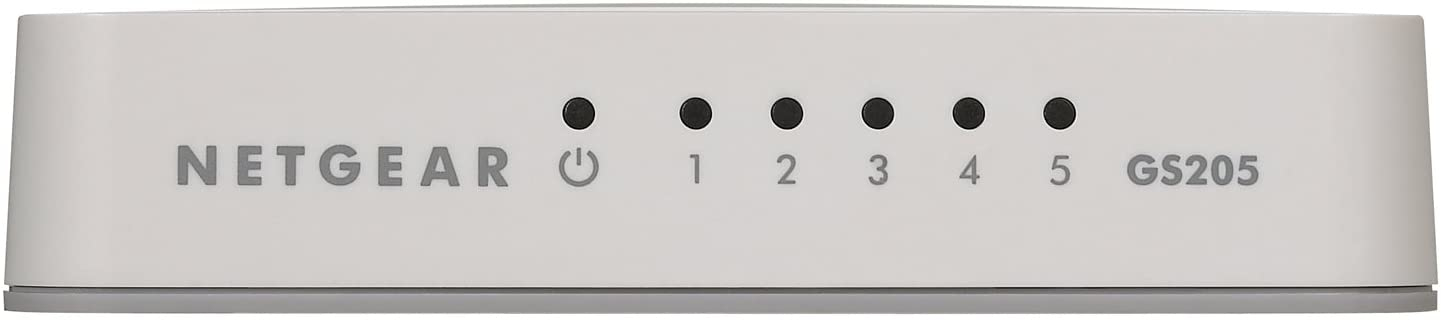

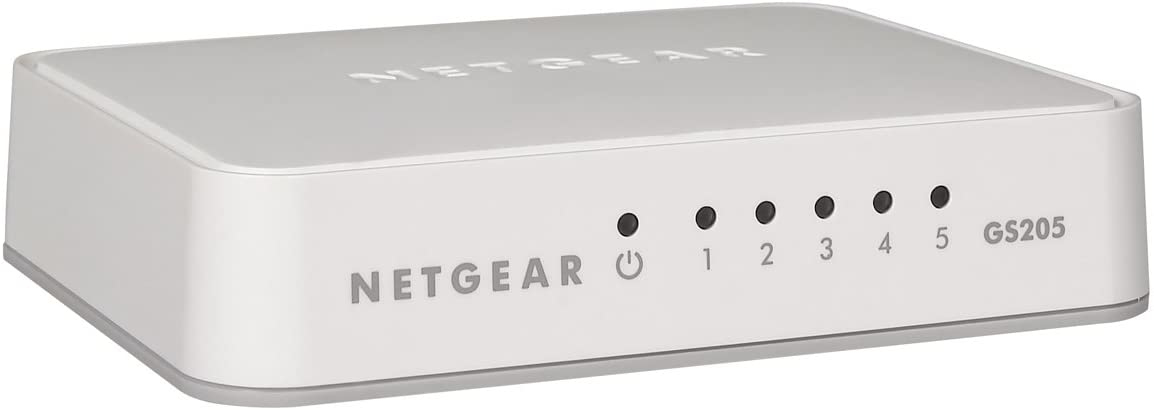

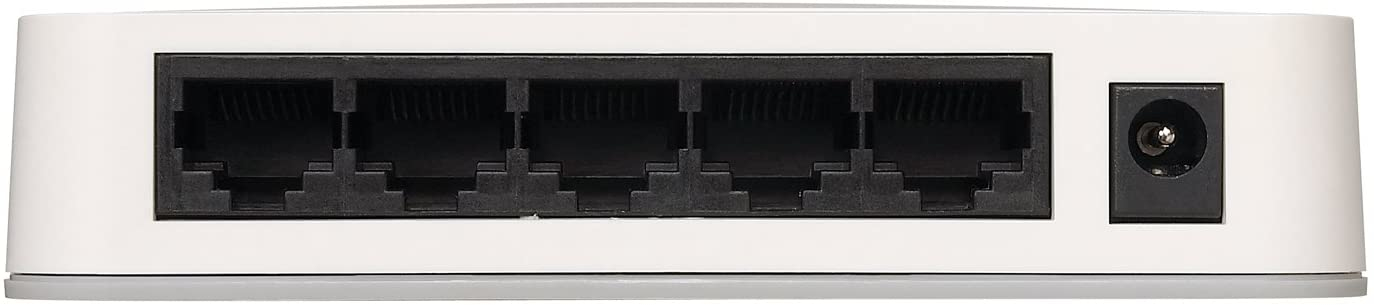

NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White
Model GS205Part no. GS205-100UKSEAN 6064490904204
51 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight120 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 120 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS205
- Part numbers
- GS205-100UKS, GS205-100PES
- EAN / UPC
- 6064490904204, 013201126639, 606449090413, 4054828230619 +8 more
- Also known as
- NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White
Specifications
51 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mb/s |
| Switching capacity | 10 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9720 |
| Packet buffer memory | 0.128 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | LAN, Power |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 3.56 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Power supply | 12 W |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 32 - 104 °F |
| Heat dissipation | 12.14 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 86 mm |
| Height | 26 mm |
| Weight | 120 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, CB |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White
No reviews yet
Be the first to tell others how NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White
All network switch comparisons- NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White vsNETGEAR XSM7224 Managed L2+ GreyCompare specs
- NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White vsNETGEAR M4100-D10-POE L2+ Power over Ethernet (PoE) BlackCompare specs
- NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White vsNETGEAR GS308 Unmanaged Gigabit Ethernet (10/100/1000) GreyCompare specs

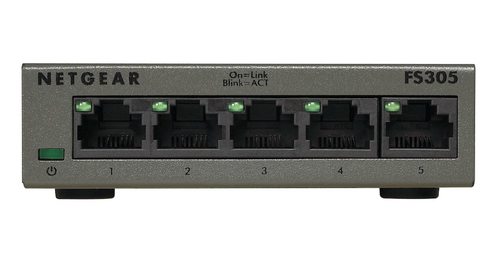

- NETGEAR GS205 Unmanaged Gigabit Ethernet (10/100/1000) White vsNETGEAR FS305 Unmanaged Fast Ethernet (10/100) GreyCompare specs
