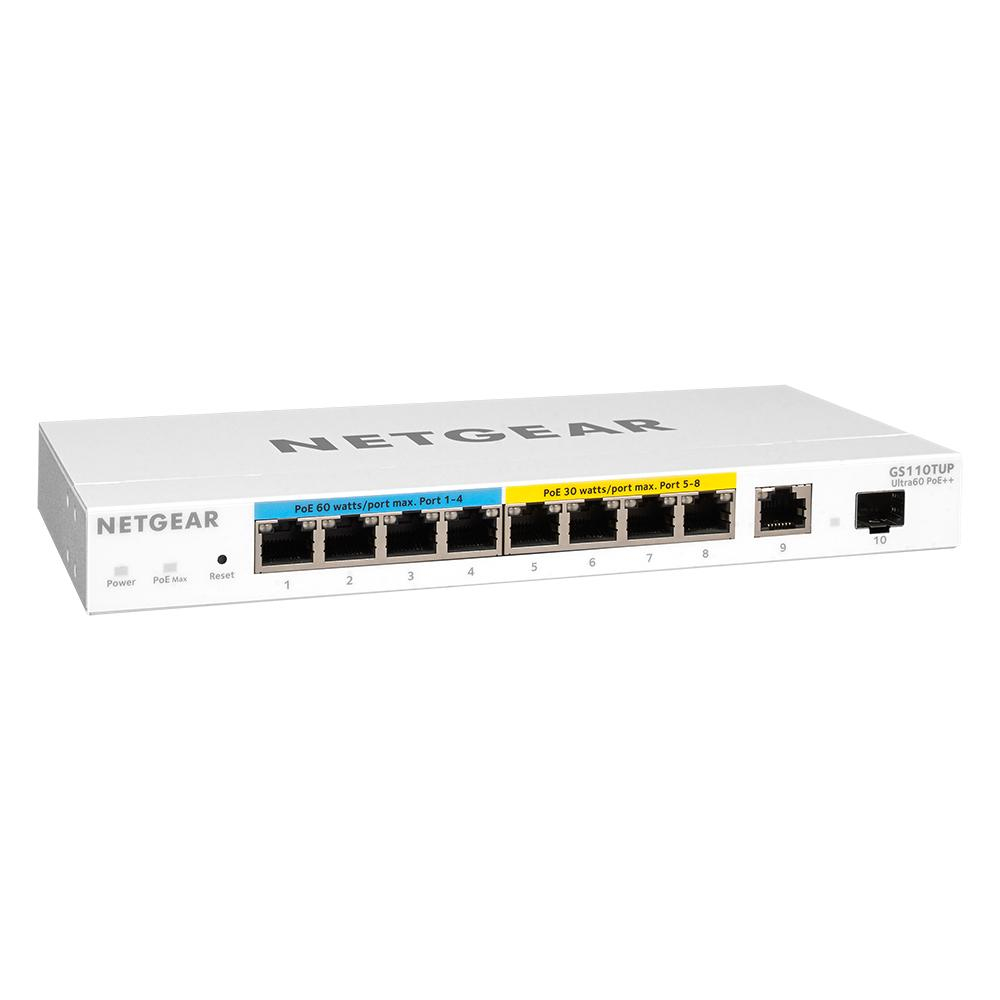

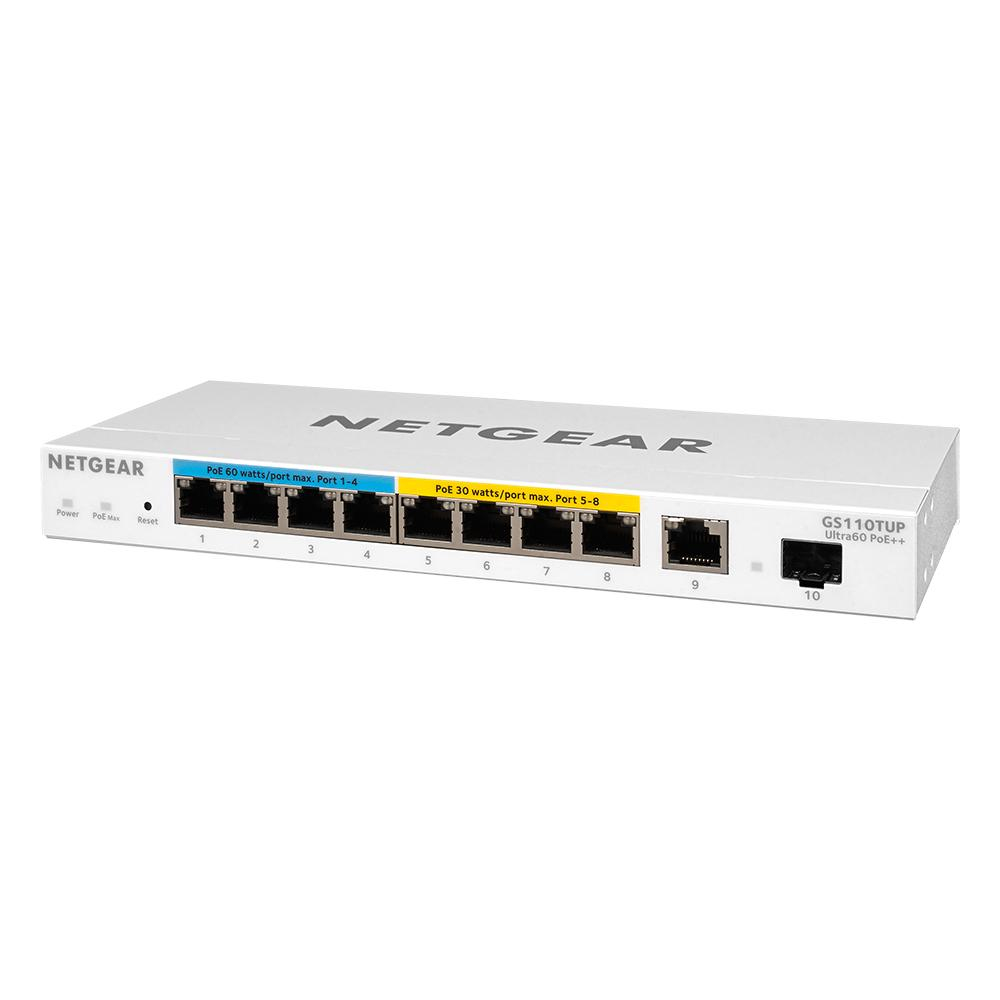

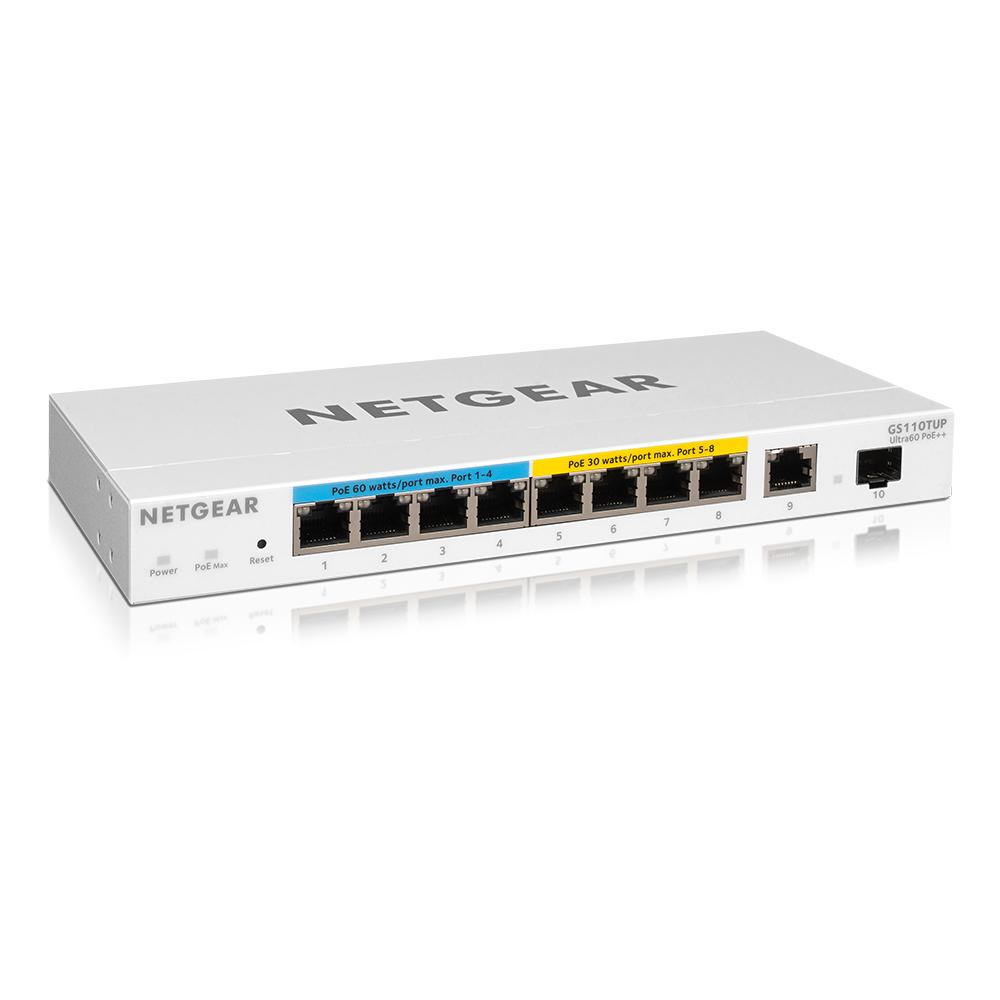

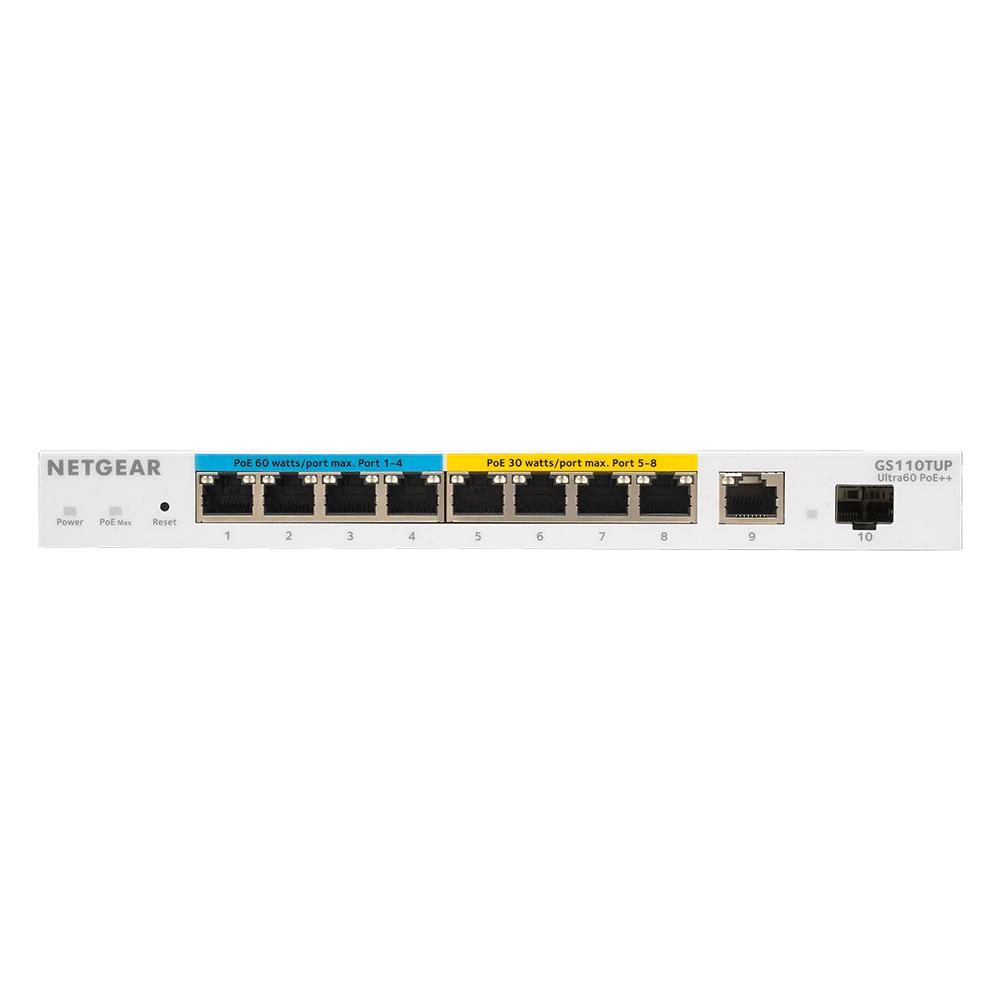

10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
Model GS110TUPPart no. GS110TUP-100EUSEAN 606449146332
60 specifications
- Noise0 dB
- Weight630 g
- ColourWhite
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
Overview
- Noise
- 0 dB
- Weight
- 630 g
- Colour
- White
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS110TUP
- Part numbers
- GS110TUP-100EUS, GS110TUP-100NAS, GS110TUP-100AJS
- EAN / UPC
- 606449146332, 606449146318
- Also known as
- NETGEAR 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
Specifications
60 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |

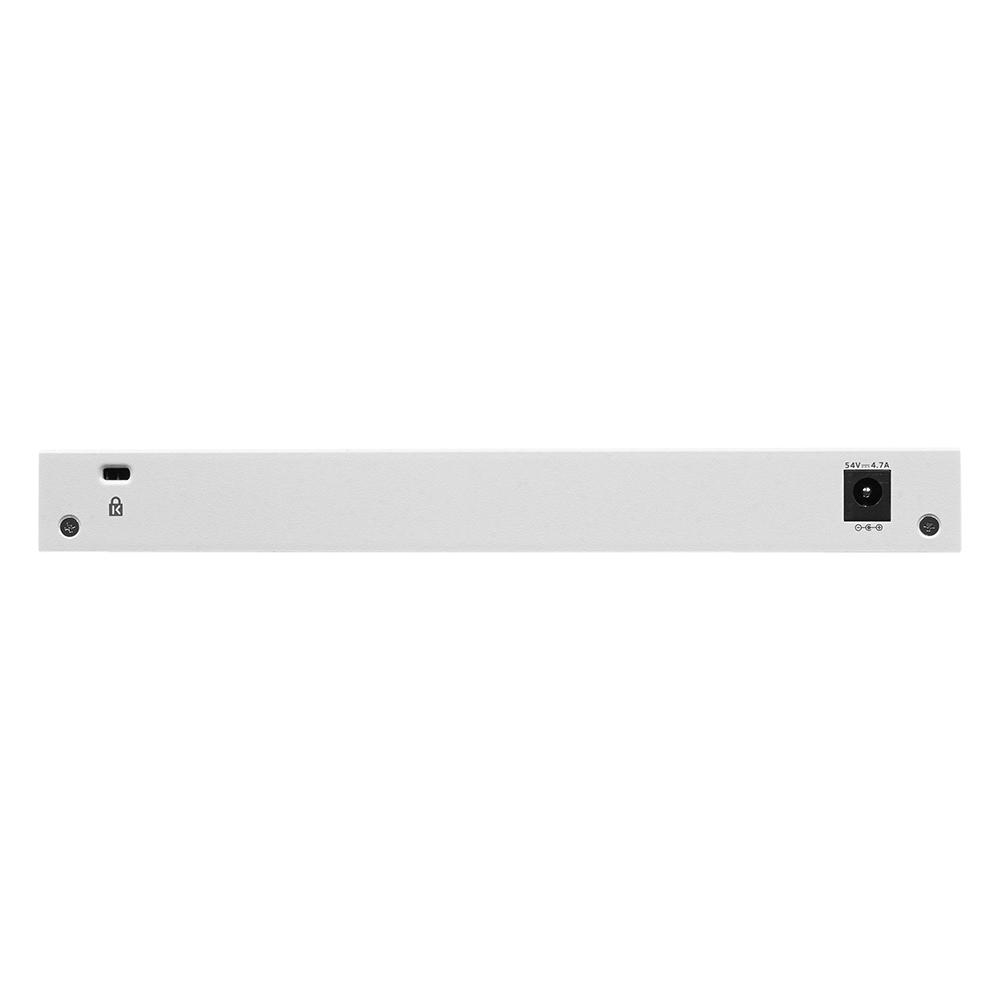

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| IP routing | Yes |
| Number of VLANs | 64 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.8 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.512 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) IPv6 entries | 100 |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Security algorithms | SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Number of multicast groups filtered | 256 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 0 fan(s) |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 695508 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 54 V |
| Input current | 4.7 A |
| Power consumption (max) | 276.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 20 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 945 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 236 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 630 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Gift box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 402 mm |
| Master (outer) case length | 453 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 357 mm |
| Master (outer) case gross weight | 20.1 kg |
| Products per master (outer) case | 6 pc(s) |
