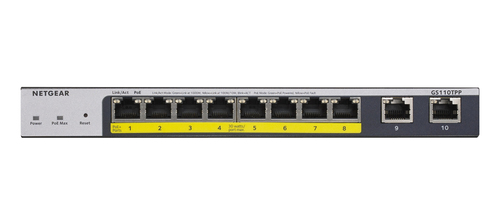

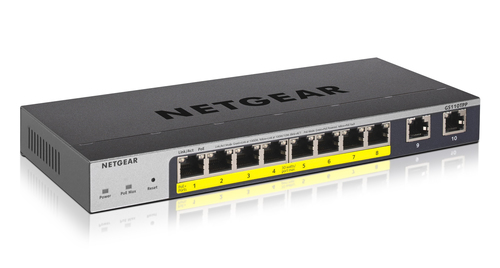

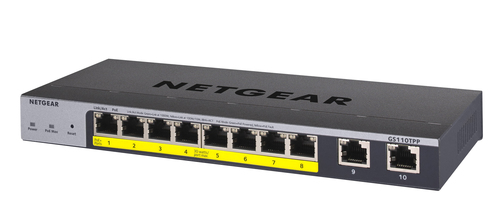

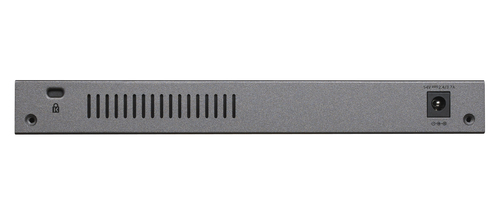

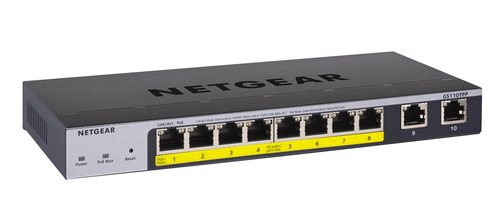

GS110TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model GS110TPPPart no. GS110TPP-100AJS-NQREAN 606449142860
65 specifications
- Memory128 MB
- Weight640 g
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
Overview
- Memory
- 128 MB
- Weight
- 640 g
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS110TPP
- Part numbers
- GS110TPP-100AJS-NQR, GS110TPP-300EUS, GS110TPP-100NAS, GS110TPP
- EAN / UPC
- 606449142860, 606449142877, 10606449142874, 5706998919410
- Also known as
- NETGEAR GS110TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
65 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 32 |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Activity, Link, PoE, Power, Speed |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 500 MHz |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 54 V |
| Input current | 2.4 A |
| Power consumption (typical) | 141.3 W |
| Power consumption (max) | 11.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 482.398 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 236 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 640 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 161 mm |
| Package depth | 267 mm |
| Package height | 86 mm |
| Package weight | 1.73 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 274 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 309 mm |
| Master (outer) case gross weight | 11.2 kg |
| Products per master (outer) case | 6 pc(s) |
