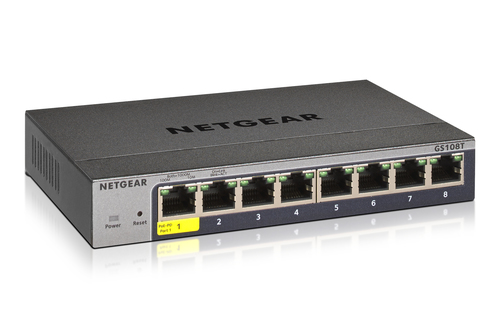

GS108T-300 Managed L2 Gigabit Ethernet (10/100/1000) Grey
Model GS108T-300Part no. GS108T-300NASEAN 606449138610
74 specifications
- Memory128 MB
- Weight43 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
Overview
- Memory
- 128 MB
- Weight
- 43 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS108T-300
- Part numbers
- GS108T-300NAS, GS108T-300UKS
- EAN / UPC
- 606449138610, 606449138641
- Also known as
- NETGEAR GS108T-300 Managed L2 Gigabit Ethernet (10/100/1000) Grey
Specifications
74 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 64 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 32 |
| Number of multicast groups filtered | 256 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Switching protocols | SNMP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | HTTP, HTTPS |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Grey |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 500 MHz |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 2388657 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 54 V |
| Input current | 1.25 A |
| Power consumption (max) | 5.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 18.66 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 43 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 226 mm |
| Package depth | 270 mm |
| Package height | 64 mm |
| Package weight | 750 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI Class B, C-Tick |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 214 mm |
| Master (outer) case length | 474 mm |
| Master (outer) case height | 312 mm |
| Master (outer) case gross weight | 5.28 kg |
| Products per master (outer) case | 6 pc(s) |
