NETGEAR GS105E Managed
Model GS105EPart no. GS105E-200JPSEAN 606449104028
24 specifications
- Speed1 Gbit/s
- Weight300 g
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- MAC address table4000 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 300 g
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GS105E
- Part numbers
- GS105E-200JPS, GS105E-100NAS, GS105E-100NAS-KIT, GS105E-200UKS, GS105E-200NAS
- EAN / UPC
- 606449104028, 071021011719, 606449066425, 606449075724 +10 more
- Also known as
- NETGEAR GS105E Managed
Specifications
24 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| LED indicators | LAN, Status, WLAN |
| Safety | UL listed (UL 1950)/CUL, CB |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 5905968 h |
Power
| Specification | Value |
|---|---|
| Power source | 12V, 1.0A |
| Power consumption (typical) | 4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 94 x 104 x 28 mm |
| Bandwidth | 10 Gbit/s |
| Networking features | Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 300 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Part 15 Class B, EN 55022 (CISPR 22)Class B, VCCI Class B, C-Tick |
What people say
Reviews & ratings
NETGEAR GS105E Managed
No reviews yet
Be the first to tell others how NETGEAR GS105E Managed works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR GS105E Managed

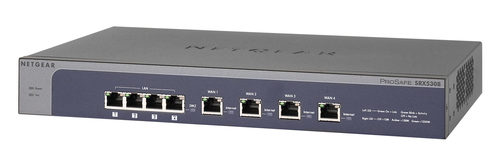

All network switch comparisons- NETGEAR GS105E Managed vsNETGEAR SRX5308 GreyCompare specs

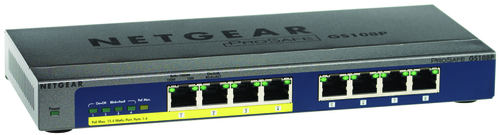

- NETGEAR GS105E Managed vsNETGEAR GS108P Managed Power over Ethernet (PoE)Compare specs
- NETGEAR GS105E Managed vsNETGEAR FS116E ManagedCompare specs

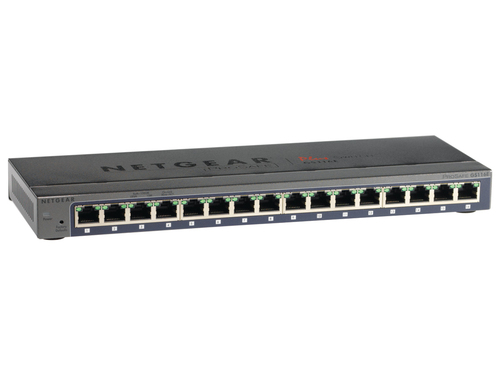

- NETGEAR GS105E Managed vsNETGEAR GS116E UnmanagedCompare specs

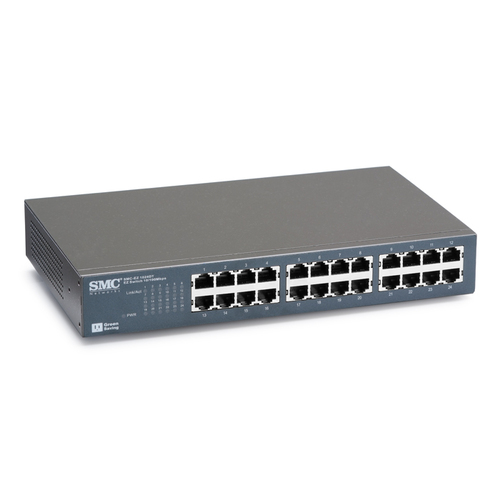

- NETGEAR GS105E Managed vsLG SMC-EZ1024DT network switch Unmanaged GreyCompare specs

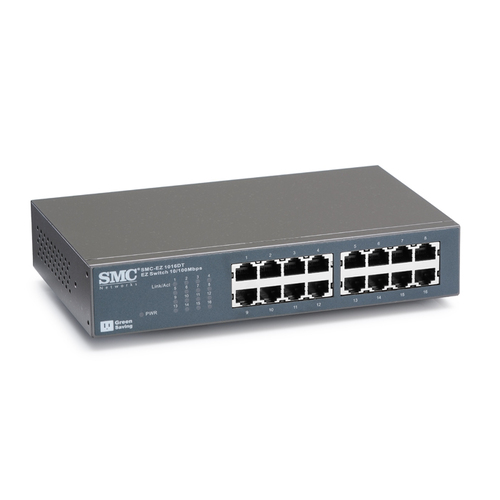

- NETGEAR GS105E Managed vsLG SMC-EZ1016DT network switch Unmanaged GreyCompare specs
- NETGEAR GS105E Managed vsZyxel ES-105S WhiteCompare specs

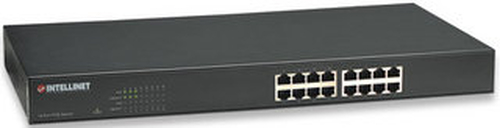

- NETGEAR GS105E Managed vsIntellinet 524155 network switch Power over Ethernet (PoE) 1U BlackCompare specs
