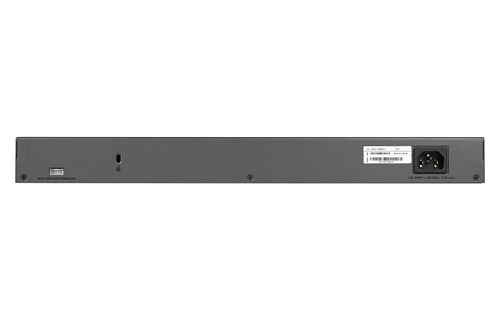

NETGEAR GC752XP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

NETGEAR GC752XP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model GC752XPPart no. GC752XP-100EUSEAN 606449122930

50 specifications

Memory512 MB
Noise30 dB
Weight4.79 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48

See all specifications

Overview

Memory: 512 MB
Noise: 30 dB
Weight: 4.79 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48

Brand: NETGEAR
Category: Network Switch
Model: GC752XP
Part numbers: GC752XP-100EUS, GC752XP-100NAS
EAN / UPC: 606449122930, 606449122947
Also known as: NETGEAR GC752XP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

50 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3/L4

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
SFP+ module slots quantity	2
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Address Resolution Protocol (ARP) entries (max)	384
VLAN support	Yes
Virtual LAN features	Multicast VLAN, Voice VLAN, Tagged VLAN
Number of VLANs	256

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	140 Gbit/s

Security

Specification	Value
DHCP features	DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL) IPv6 entries	100
IGMP snooping	Yes

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	512 entries

Design

Specification	Value
Rack mounting	Yes
Product colour	Grey
LED indicators	Yes
Number of fans	3 fan(s)
Safety	EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, 2014, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, RCM, AS/NZS 60950.1:2015, BSMI CNS14336-1, KCC K60950-1, CCC GB4943.1-2011

Performance

Specification	Value
Built-in processor	Yes
Processor frequency	400 MHz
Internal memory	512 MB
Flash memory	256 MB
Noise level	30 dB
Remarking priority	8
Mean time between failures (MTBF)	455.682 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	10 A
Power consumption (typical)	39.4 W
Power consumption (max)	623.6 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	505 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	2127.64 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	320 mm
Height	44 mm
Weight	4.79 kg

Certificates

Specification	Value
Certification	EN55032:2012+AC:2013, EN55024:2010+A1:2015, EN61000-3-2:2014, EN61000-3-3:2013, VCCI-CISPR 32:2016, RCM, AS/NZS CISPR 32:2015, ICES-003:2016
