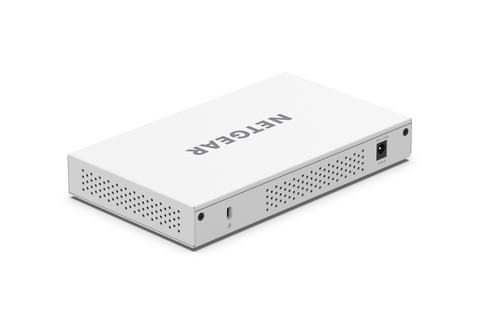

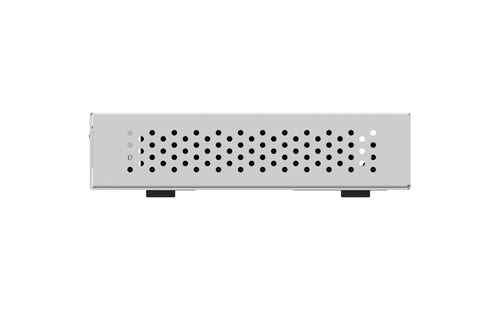

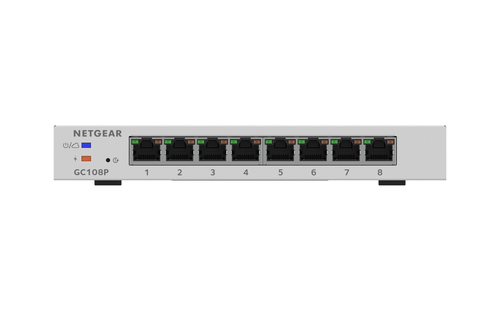

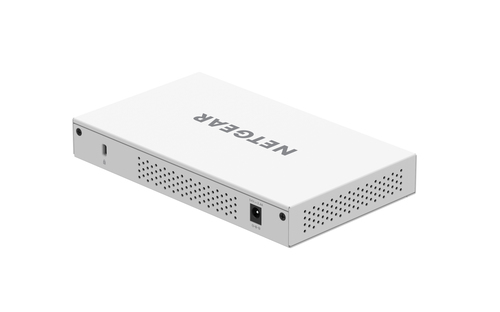

8-port PoE Gigabit Ethernet Smart Switch with Insight Cloud Management (GC108P)
Model GC108PPart no. GC108P-100UKSEAN 10606449140207
66 specifications
- Memory128 MB
- Weight520 g
- ColourWhite
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
Overview
- Memory
- 128 MB
- Weight
- 520 g
- Colour
- White
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- GC108P
- Part numbers
- GC108P-100UKS, GC108P-100NAS, GC108P-100PES
- EAN / UPC
- 10606449140207, 606449140187, 10606449140184, 606449140194 +2 more
- Also known as
- NETGEAR 8-port PoE Gigabit Ethernet Smart Switch with Insight Cloud Management (GC108P)
Specifications
66 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 100 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
| Static port security | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Power, Speed |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 500 MHz |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 2635395 h |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 54 V |
| Input current | 1.25 A |
| Power consumption (typical) | 4.9 W |
| Power consumption (max) | 66.7 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 228.11 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 188 mm |
| Depth | 110 mm |
| Height | 27 mm |
| Weight | 520 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC |
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 215 mm |
| Package depth | 269 mm |
| Package height | 73 mm |
| Package weight | 520 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 237 mm |
| Master (outer) case length | 469 mm |
| Master (outer) case height | 306 mm |
| Master (outer) case gross weight | 8.24 kg |
