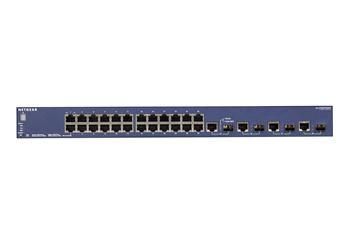

NETGEAR FSM7328PS-100NAS network switch Managed Power over Ethernet (PoE)
Model FSM7328PS-100NASEAN 606449051810
42 specifications
- Memory256 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise38.6 dB
- Weight3.77 kg
- Switch typeManaged
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 38.6 dB
- Weight
- 3.77 kg
- Switch type
- Managed
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- FSM7328PS-100NAS
- Part number
- FSM7328PS-100NAS
- EAN / UPC
- 606449051810
- Also known as
- NETGEAR FSM7328PS-100NAS network switch Managed Power over Ethernet (PoE)
Specifications
42 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 512 |
Data transmission
| Specification | Value |
|---|---|
| Store-and-forward | Yes |
| Number of trunks | 6 |
| Number of queues | 8 |
| Number of static routes | 128 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Safety | CE mark, EN 60950-1, UL/cUL 60950-1 |
| Electromagnetic compatibility | CE mark, EN 55022 Class A - Emissions, EN 55024 - Immunity, FCC Part 15 Class A, VCCI Class A, C-Tick |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 16 MB |
| Noise level | 38.6 dB |
| Mean time between failures (MTBF) | 210.685 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 285 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
| Connectivity LEDs | Yes |
| Dimensions (W x D x H) (imperial) | 439.9 x 257 x 43.2 mm (17.3 x 10.1 x 1.7") |
| Weight (imperial) | 3.77 kg (8.32 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 1 - 90% |
| Storage relative humidity (H-H) | 1 - 95% |
| Operating temperature (T-T) | 32 - 122 °F |
| Heat dissipation | 979 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.77 kg |
