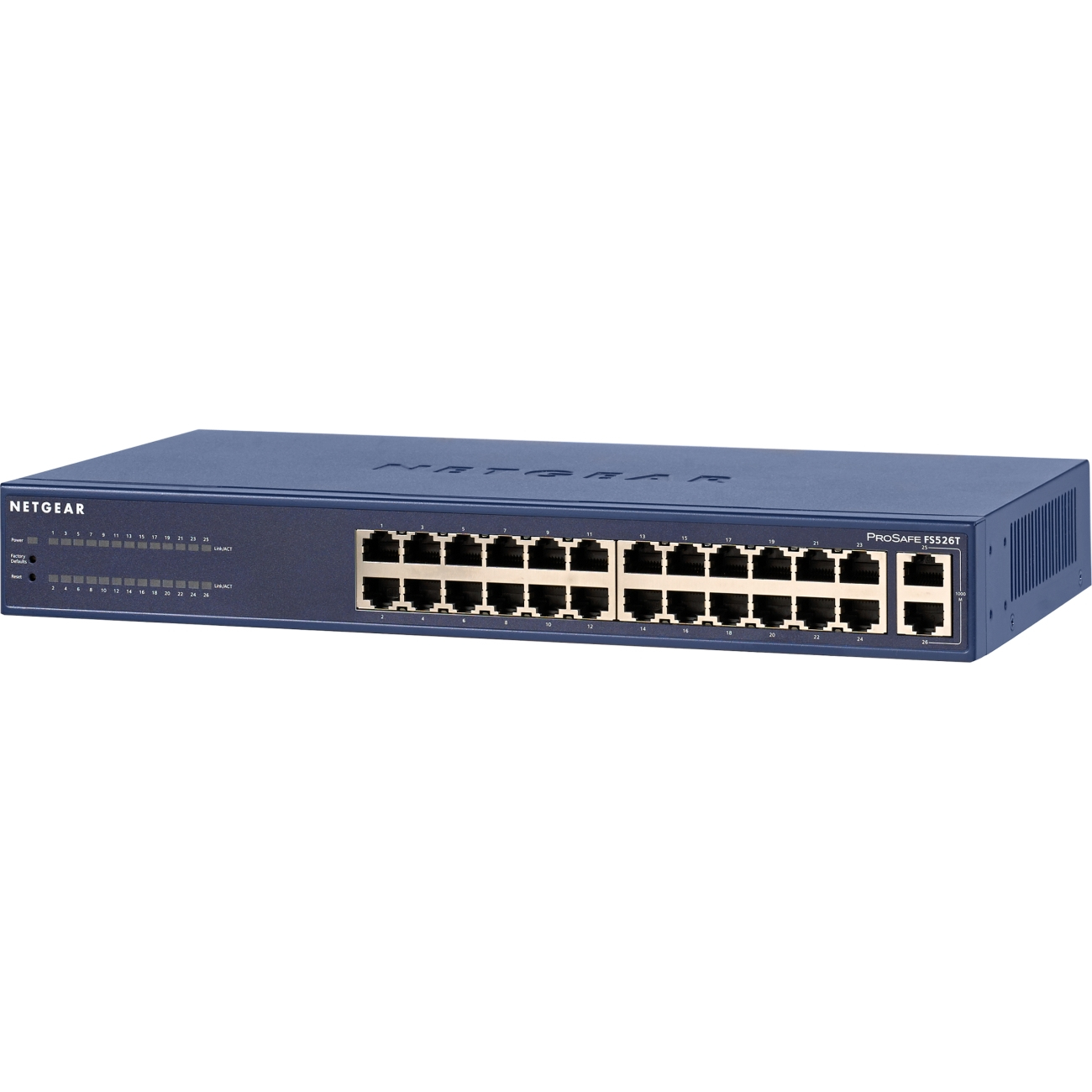

NETGEAR FS526T Unmanaged L3 Fast Ethernet (10/100) Blue
Model FS526TPart no. FS526T-200NASEAN 6064490974368
33 specifications
- Weight1.35 kg
- ColourBlue
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 1.35 kg
- Colour
- Blue
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- FS526T
- Part numbers
- FS526T-200NAS, FS526T-200EUS
- EAN / UPC
- 6064490974368, 606449097429, 5052916666936, 5054484618881 +3 more
- Also known as
- NETGEAR FS526T Unmanaged L3 Fast Ethernet (10/100) Blue
Specifications
33 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3z |
| 10G support | No |
| Rate limiting | Yes |
| VLAN support | Yes |
| Number of VLANs | 128 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 128 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Blue |
| Safety | 802.1x, DHCP, Port security, ACL filtering |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 334.168 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 326 mm |
| Depth | 168 mm |
| Height | 43 mm |
| Weight | 1.35 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
| User guide | Yes |
