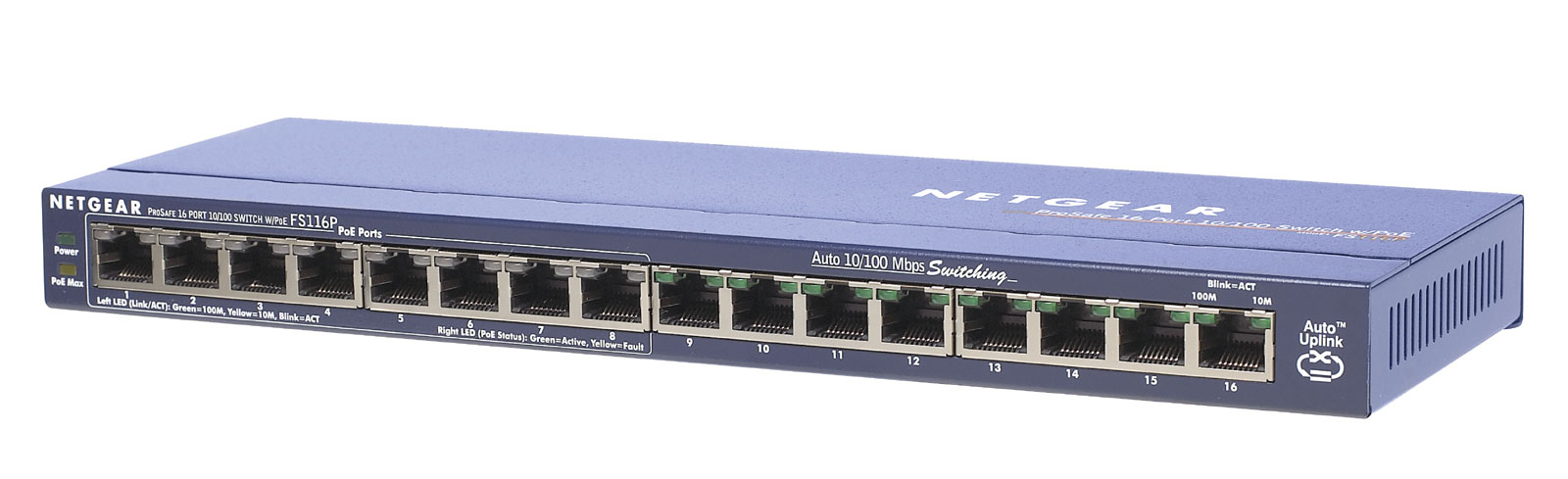

FS116PEU network switch Fast Ethernet (10/100) Power over Ethernet (PoE)
Model FS116PEUEAN 7330381351242
27 specifications
- Speed0.1 Gbit/s
- Weight828 g
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table1000 entries
- Data link protocolsEthernet, Fast Ethernet
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 828 g
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 1000 entries
- Data link protocols
- Ethernet, Fast Ethernet
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- FS116PEU
- Part number
- FS116PEU
- EAN / UPC
- 7330381351242, 060644904171, 606449041729, 5051964008248 +3 more
- Also known as
- NETGEAR FS116PEU network switch Fast Ethernet (10/100) Power over Ethernet (PoE)
Specifications
27 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 3.2 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.096 MB |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | CE; CE/LVD EN60950 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 116009 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 80 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
Other features
| Specification | Value |
|---|---|
| Latency | 20 µs for 64-byte frames |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 287 x 103 x 27 mm |
| Power requirements | 48VDC, 4.5 power output |
| Electromagnetic emissions | CE mark, commercial, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22) Class A, C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Storage relative humidity (H-H) | 95 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 286 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 828 g |
