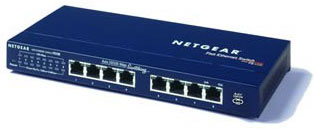

FS108 10/100 Mbps Fast Ethernet Switch
Model FS108 10/100 Mbps Fast Ethernet SwitchPart no. FS108GEEAN 606449003222
20 specifications
- Speed0.1 Gbit/s
- Weight490 g
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
- MAC address table1000 entries
- LED indicatorsLink, Power
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 490 g
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- MAC address table
- 1000 entries
- LED indicators
- Link, Power
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- FS108 10/100 Mbps Fast Ethernet Switch
- Part number
- FS108GE
- EAN / UPC
- 606449003222
- Also known as
- NETGEAR FS108 10/100 Mbps Fast Ethernet Switch
Specifications
20 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1.6 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.096 MB |
Design
| Specification | Value |
|---|---|
| LED indicators | Link, Power |
| Safety | UL1950/cUL, IEC1950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows, Linux, MacOS |
| Mean time between failures (MTBF) | 168300 h |
| Minimum system requirements | Network cables Network card for each PC or server Network sofware (e.g., Windows, Linux, MacOS) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12.5 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 158 x 103 x 27 mm |
| Power requirements | AC power adapter |
| Electromagnetic emissions | CE mark, commercial, FCC part 15 class A, EN 55 022 class A, VCCI class A, C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 490 g |
