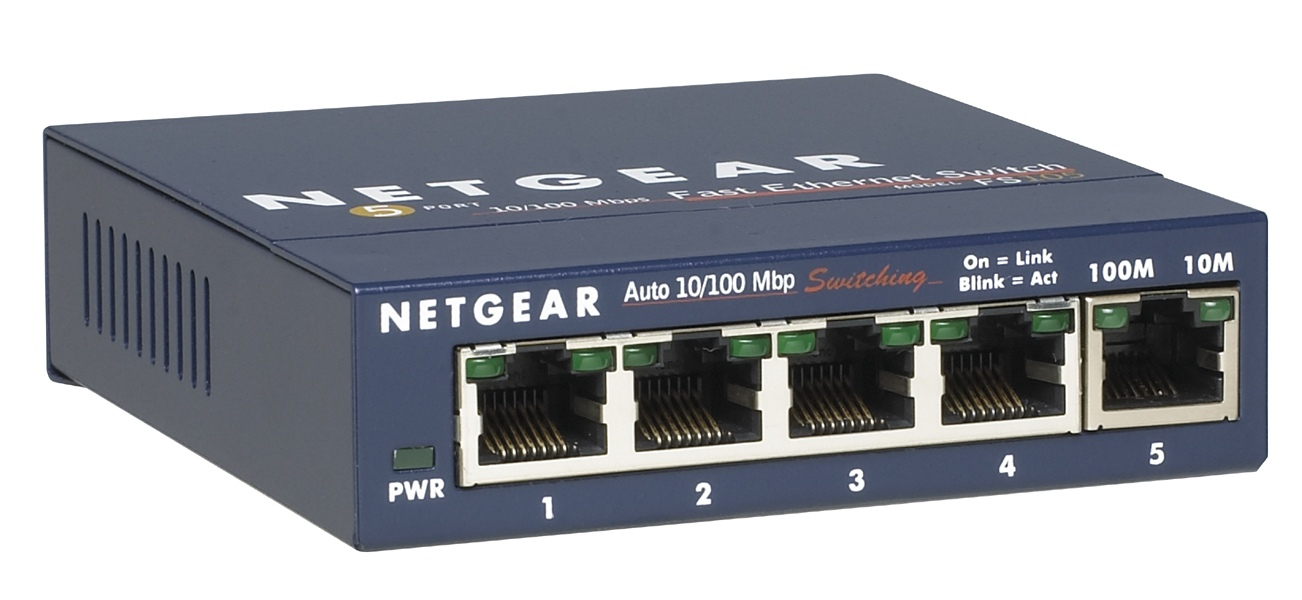

NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue
Model FS105-300PESEAN 606449104806
38 specifications
- Weight275 g
- ColourBlue
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Copper ethernet cabling technology100BASE-TX, 10BASE-T
- MAC address table1024 entries
Overview
- Weight
- 275 g
- Colour
- Blue
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Copper ethernet cabling technology
- 100BASE-TX, 10BASE-T
- MAC address table
- 1024 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- FS105-300PES
- Part number
- FS105-300PES
- EAN / UPC
- 606449104806, 5425656728743
- Also known as
- NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue
Specifications
38 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 20 µs |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Blue |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
| Mean time between failures (MTBF) | 4.262794 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 0.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 275 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
What people say
Reviews & ratings
NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue
No reviews yet
Be the first to tell others how NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue
All network switch comparisons- NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue vsNETGEAR GS608 Unmanaged Gigabit Ethernet (10/100/1000) WhiteCompare specs
- NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue vsNETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) BlueCompare specs
- NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue vsNETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) GreyCompare specs
- NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue vsNETGEAR M6100-44G3-POE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Black, GreyCompare specs
- NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue vsStarTech.com 5-Port Industrial Ethernet Switch - DIN Rail Mountable - TAACompare specs

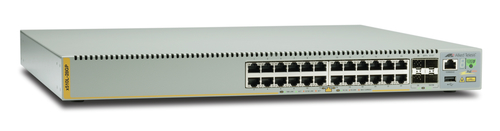

- NETGEAR FS105-300PES network switch Unmanaged L2 Fast Ethernet (10/100) Blue vsAllied Telesis AT-x510L-28GP-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
