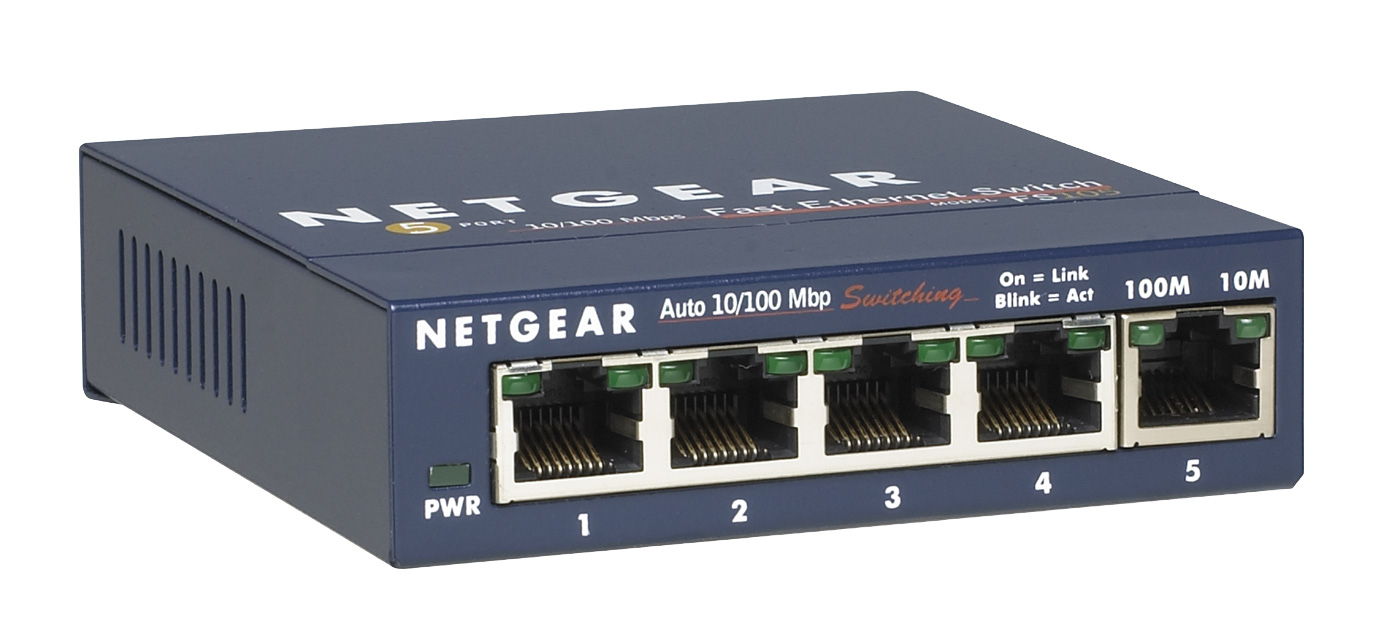

NETGEAR FS105-200PES network switch Unmanaged
Model FS105-200PESEAN 9154400086728
27 specifications
- Speed0.1 Gbit/s
- Weight280 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3u, IEEE 802.3x
- MAC address table1000 entries
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 280 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- MAC address table
- 1000 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- FS105-200PES
- Part number
- FS105-200PES
- EAN / UPC
- 9154400086728, 606449020168, 606449021271, 606449064230 +5 more
- Also known as
- NETGEAR FS105-200PES network switch Unmanaged
Specifications
27 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL 1950/cUL; IEC950/EN60950 |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Windows, Linux, Mac OS |
| Mean time between failures (MTBF) | 390000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 20 µs |
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 94 x 27 x 103 mm |
| Power requirements | 7.5V, 1A |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | CE, FCC part 15 Class A; EN55 022 (CISPR22), Class A; VCCI Class A; C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 280 g |
