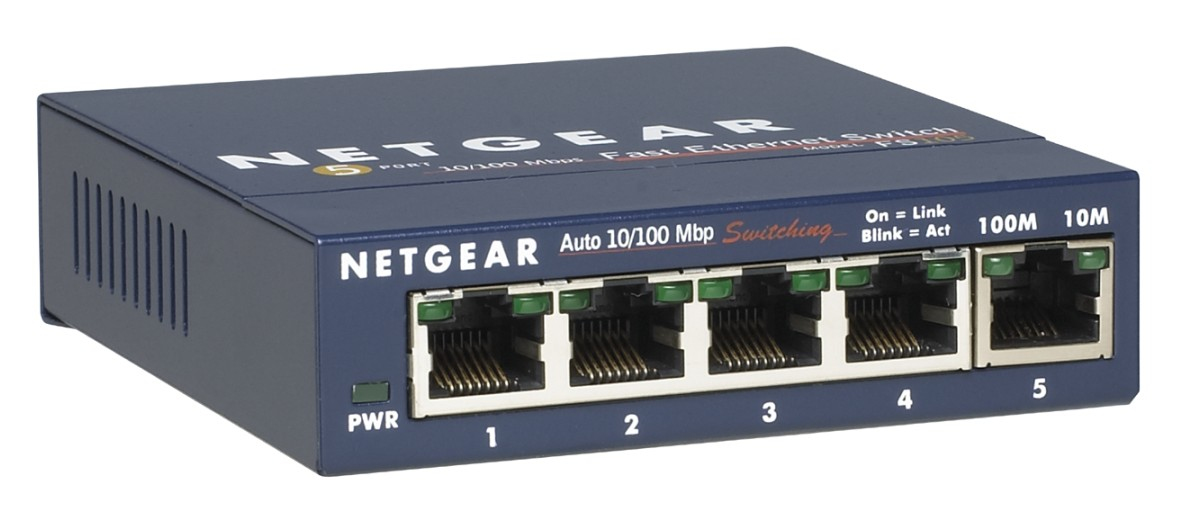

NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue
Model FS105Part no. FS105-300UKSEAN 606449104813
45 specifications
- Weight275 g
- ColourBlue
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table1024 entries
Overview
- Weight
- 275 g
- Colour
- Blue
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 1024 entries
- Brand
- NETGEAR
- Category
- Network Switch
- Model
- FS105
- Part number
- FS105-300UKS
- EAN / UPC
- 606449104813, 5054629999868
- Also known as
- NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue
Specifications
45 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Blue |
| Housing material | Metal |
Performance
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
| Mean time between failures (MTBF) | 4262794 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 0.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 275 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 155 mm |
| Package depth | 239 mm |
| Package height | 63 mm |
| Package weight | 510 g |
Technical details
| Specification | Value |
|---|---|
| Layers per pallet (air) | 3 pc(s) |
| Layers per pallet (sea) | 5 pc(s) |
| Master (outer) cases per pallet layer | 10 pc(s) |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case height | 36 cm |
| Shipping (inner) case length | 26.5 cm |
| Shipping (inner) case net weight | 5.77 kg |
| Shipping (inner) case width | 34.7 cm |
What people say
Reviews & ratings
NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue
No reviews yet
Be the first to tell others how NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue
All network switch comparisons- NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue vsNETGEAR FS108-300PES network switch Unmanaged L2 Fast Ethernet (10/100) BlueCompare specs
- NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue vsNETGEAR FS608-400PES network switch Unmanaged L2 Fast Ethernet (10/100) WhiteCompare specs

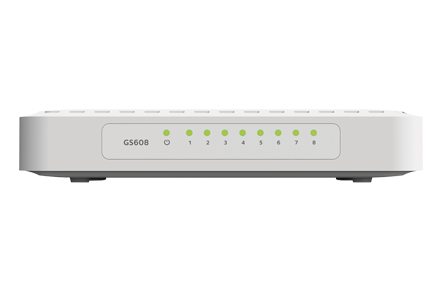

- NETGEAR FS105 Unmanaged L2 Fast Ethernet (10/100) Blue vsNETGEAR GS608 Unmanaged Gigabit Ethernet (10/100/1000) WhiteCompare specs
