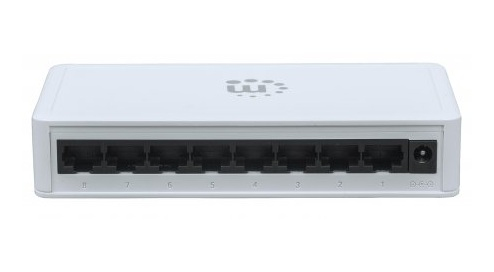

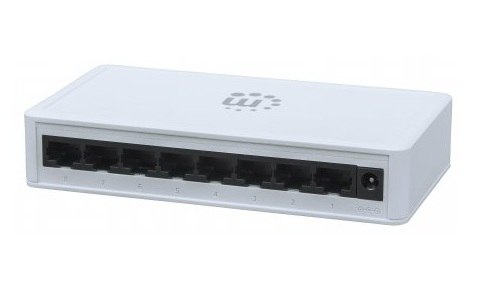

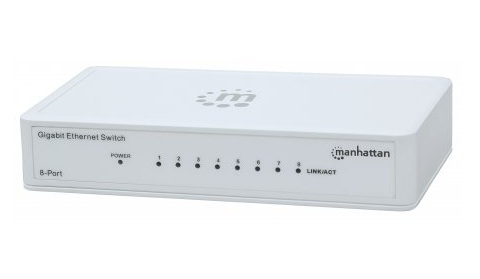

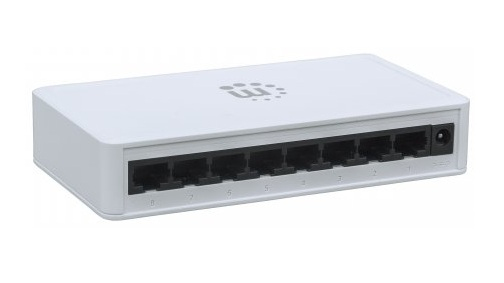

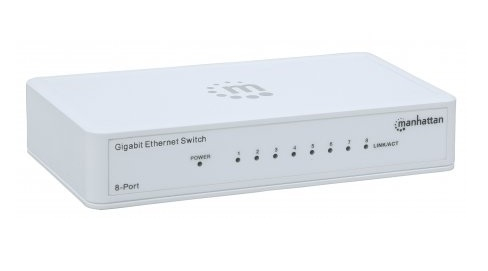

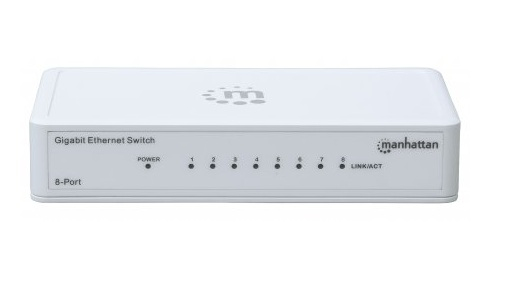

Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box
Model 560702EAN 766623560702
35 specifications
- Weight328.5 g
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table2048 entries
- Buffer size256 KB
Overview
- Weight
- 328.5 g
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 2048 entries
- Buffer size
- 256 KB
- Brand
- Manhattan
- Category
- Network Switch
- Model
- 560702
- Part number
- 560702
- EAN / UPC
- 766623560702, 7666235607020
- Also known as
- Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box
Specifications
35 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 16 Gbit/s |
| Throughput | 200 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14800 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | White |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Buffer size | 256 KB |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 78 mm |
| Depth | 140 mm |
| Height | 28 mm |
| Weight | 328.5 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box
No reviews yet
Be the first to tell others how Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box
All network switch comparisons- Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box vsManhattan 5-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, BoxCompare specs
- Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box vsManhattan 561815 network switch Unmanaged Gigabit Ethernet (10/100/1000) BlackCompare specs

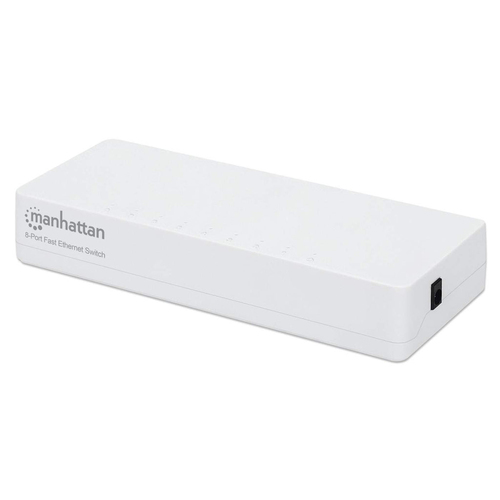

- Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box vsManhattan 8-Port Fast Ethernet Switch, Plastic, Three Year Warranty, BoxCompare specs

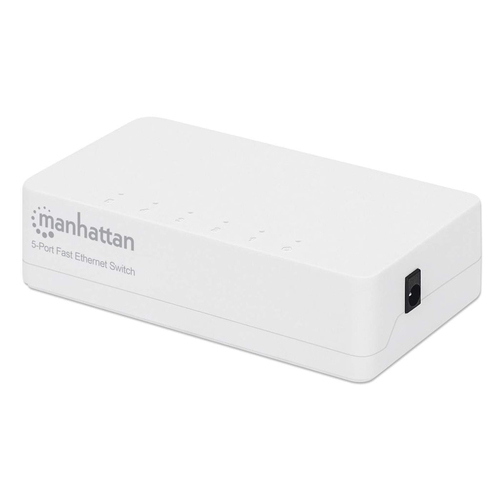

- Manhattan 8-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box vsManhattan 5-Port Fast Ethernet Switch, Plastic, Three Year Warranty, BoxCompare specs
