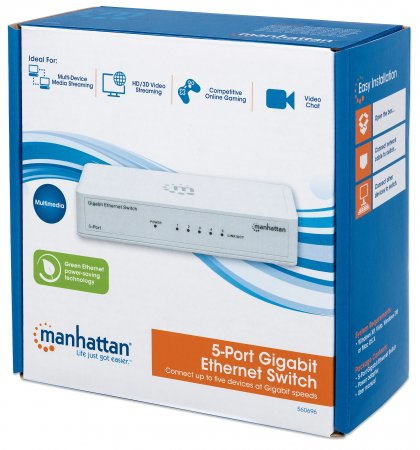

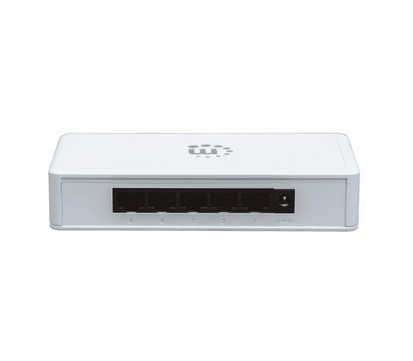

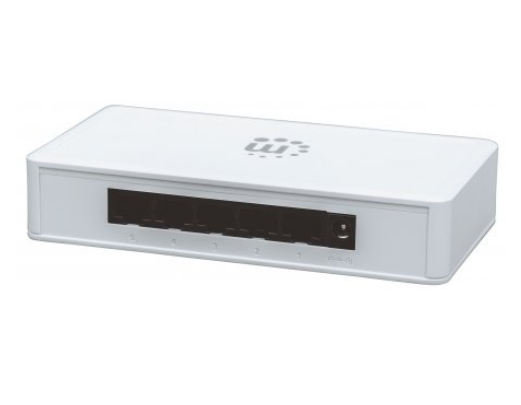

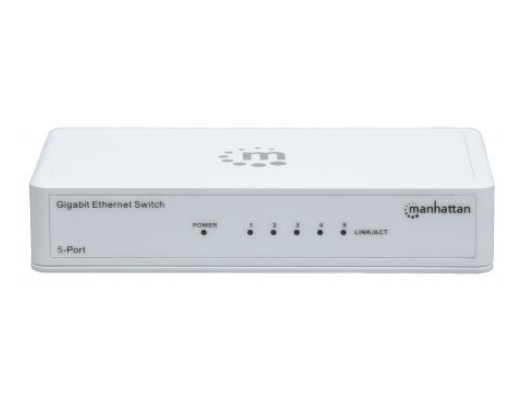

Manhattan 5-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box
Model 560696EAN 7666235606962
42 specifications
- Weight328.5 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2048 entries
Overview
- Weight
- 328.5 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2048 entries
- Brand
- Manhattan
- Category
- Network Switch
- Model
- 560696
- Part number
- 560696
- EAN / UPC
- 7666235606962, 563875083313, 613326801178, 682644671121 +9 more
- Also known as
- Manhattan 5-Port Gigabit Ethernet Switch, Desktop Size, Plastic, IEEE 802.3az (Energy Efficient Ethernet), Three Year Warranty, Box
Specifications
42 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 256 KB |
| Compatible operating systems | Windows, Mac |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 1 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 78 mm |
| Depth | 140 mm |
| Height | 28 mm |
| Weight | 328.5 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
