NS204 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Model NS204EAN 4052792070460
34 specifications
- Weight360 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- Full duplexYes
- MAC address table2000 entries
Overview
- Weight
- 360 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Full duplex
- Yes
- MAC address table
- 2000 entries
- Brand
- LogiLink
- Category
- Network Switch
- Model
- NS204
- Part number
- NS204
- EAN / UPC
- 4052792070460
- Also known as
- LogiLink NS204 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| Half duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 14 Gbit/s |
| Forwarding rate | 10.5 Mpps |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 300000 h |

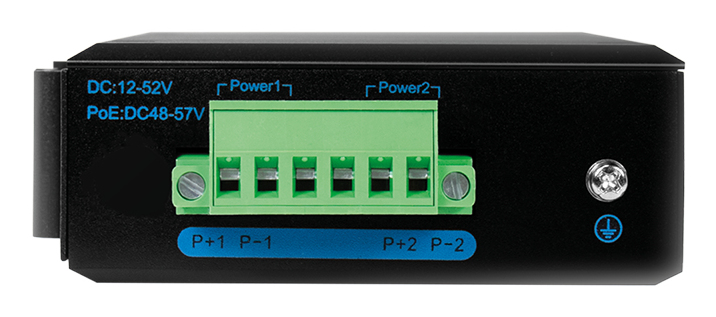

Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 - 52 V |
| Power consumption (max) | 3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | -40 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 86 mm |
| Height | 33.5 mm |
| Weight | 360 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 165 mm |
| Package depth | 135 mm |
| Package height | 54 mm |
| Package weight | 460 g |
