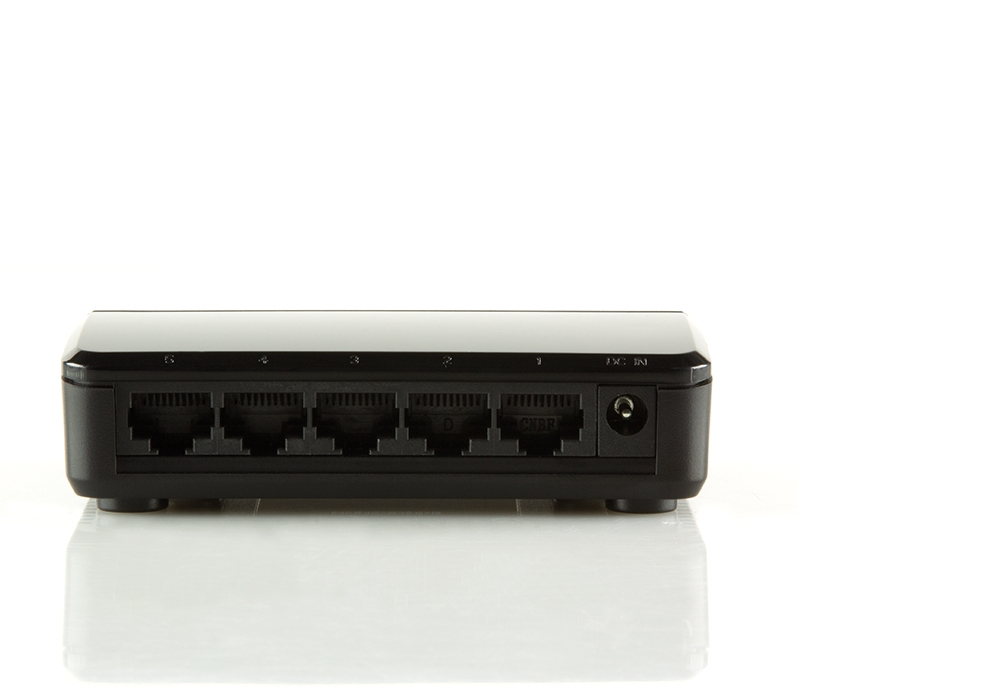

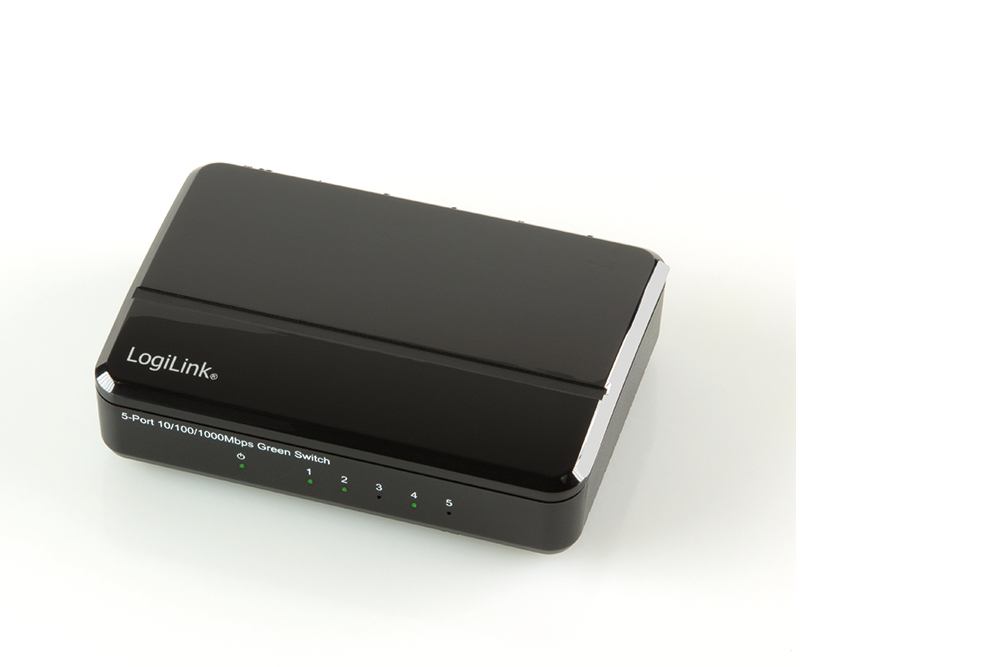

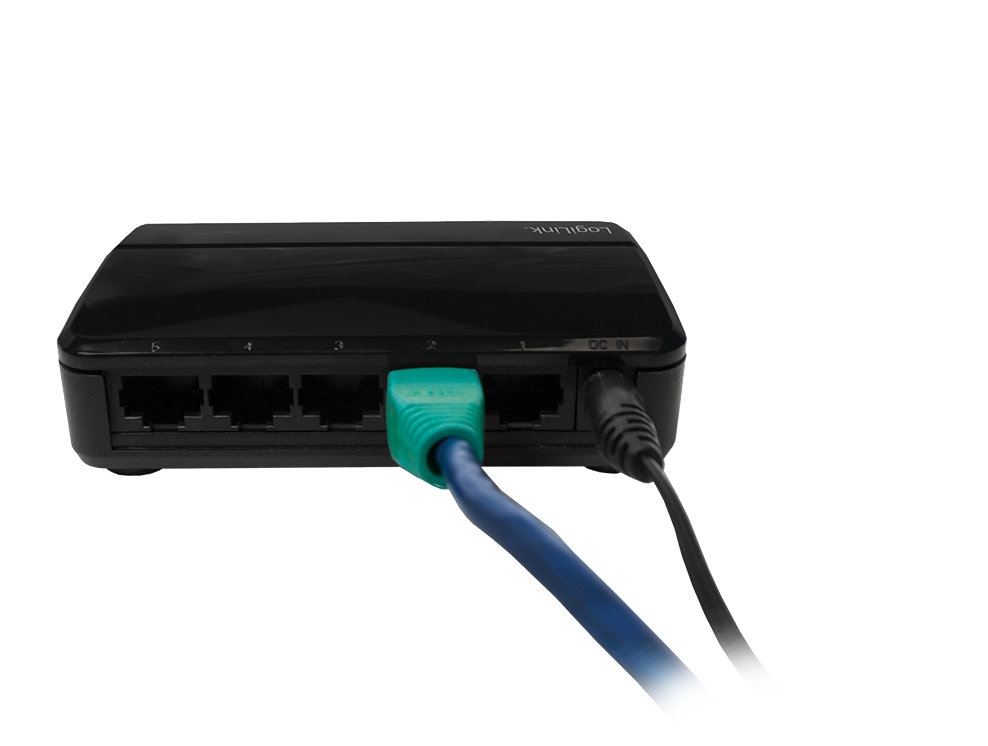

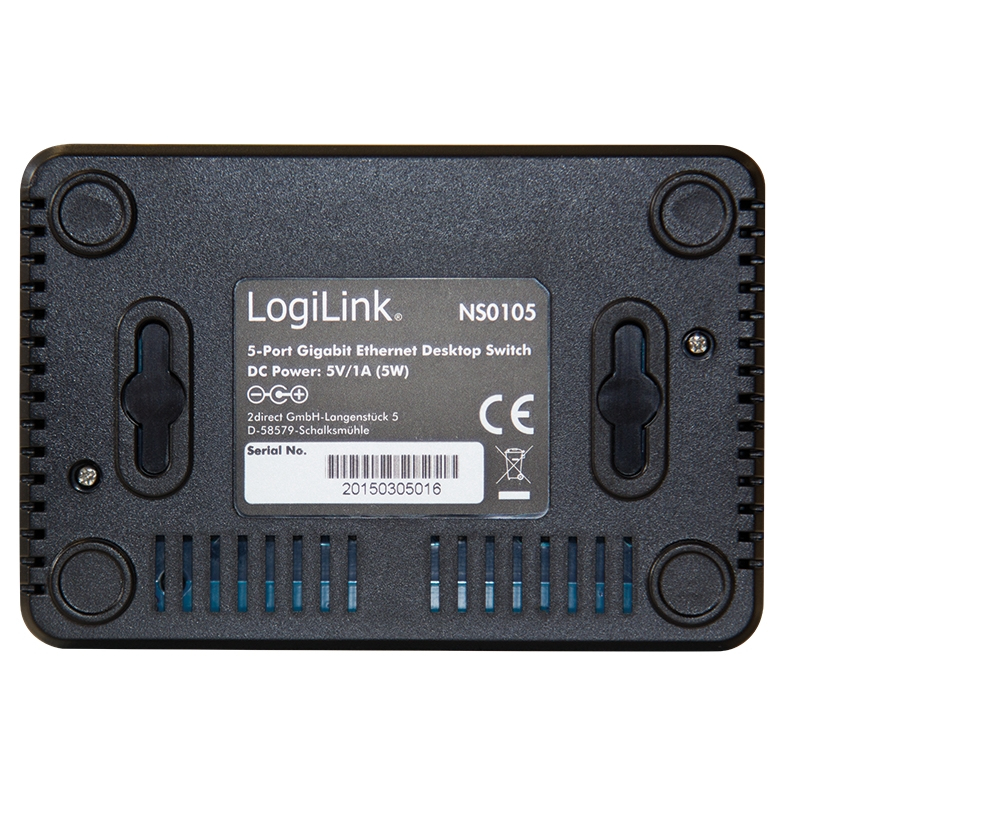

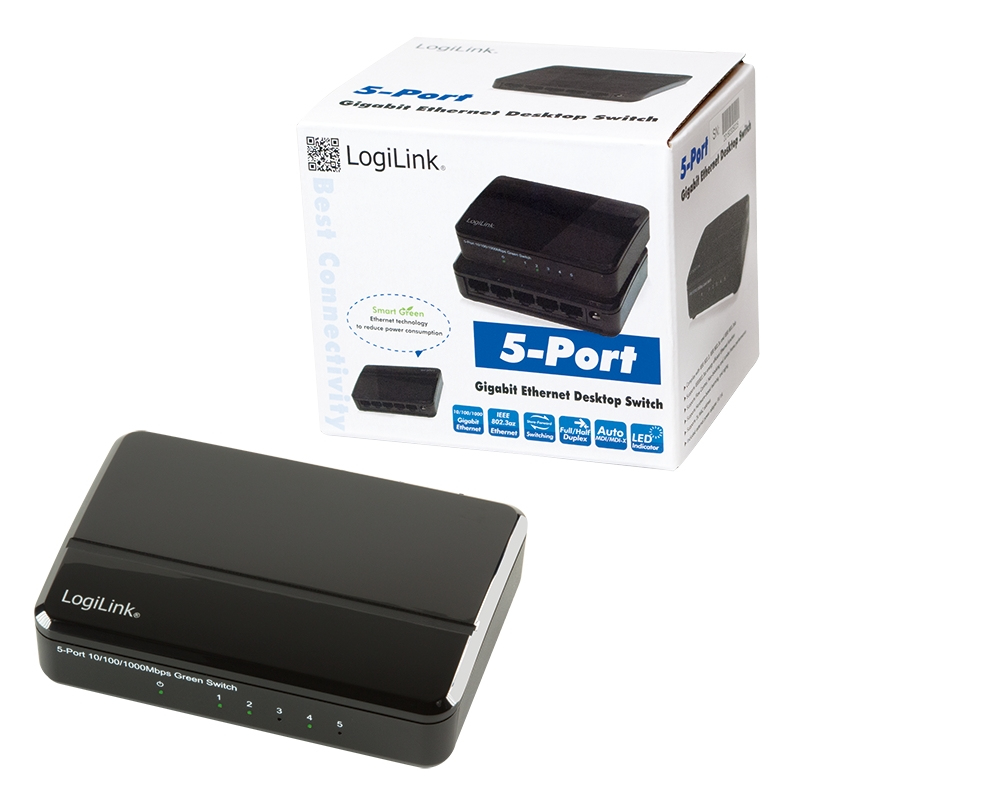

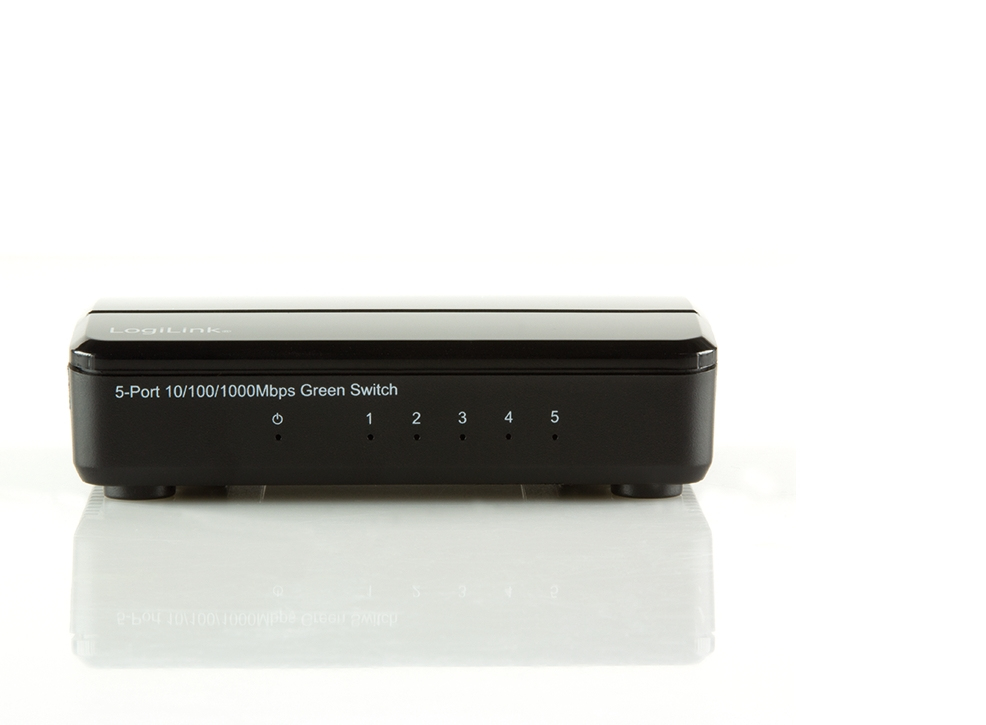

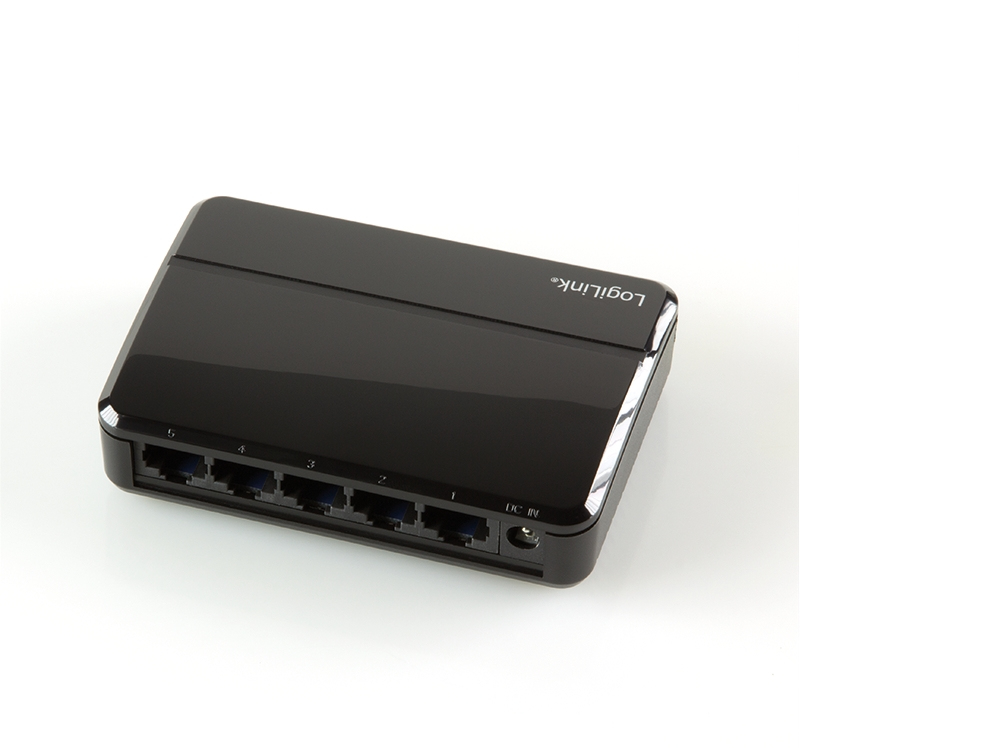

LogiLink NS0105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Model NS0105EAN 4052792033755
37 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Full duplexYes
- MAC address table2048 entries
- Rack mountingNo
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Full duplex
- Yes
- MAC address table
- 2048 entries
- Rack mounting
- No
- Brand
- LogiLink
- Category
- Network Switch
- Model
- NS0105
- Part number
- NS0105
- EAN / UPC
- 4052792033755
- Also known as
- LogiLink NS0105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Specifications
37 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Safety | CE, LVD |
Performance
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 2.129 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 67.6 mm |
| Height | 24.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 103 mm |
| Package depth | 82 mm |
| Package height | 87 mm |
| Package weight | 225 g |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
