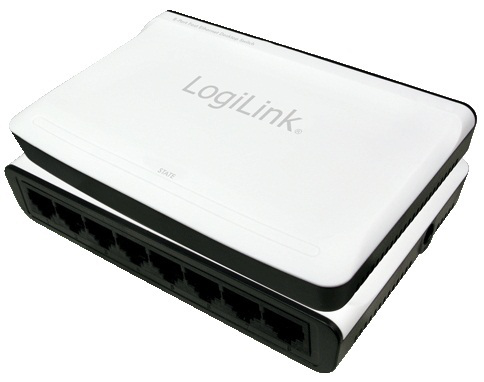

LogiLink NS0062 network switch Unmanaged
Model NS0062EAN 4014619334070
41 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table2000 entries
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- LogiLink
- Category
- Network Switch
- Model
- NS0062
- Part number
- NS0062
- EAN / UPC
- 4014619334070, 4052792008012, 4260113575871
- Also known as
- LogiLink NS0062 network switch Unmanaged
Specifications
41 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-T, 100BASE-TX, 10BASE-T |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Number of power supply units | 1 |
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (typical) | 3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 133 x 87 x 23.5 mm |
| Connectivity technology | Wired |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Power requirements | 100 - 240 V, 50 - 60 Hz |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 202 mm |
| Package depth | 160 mm |
| Package height | 60 mm |
| Package weight | 550 g |
