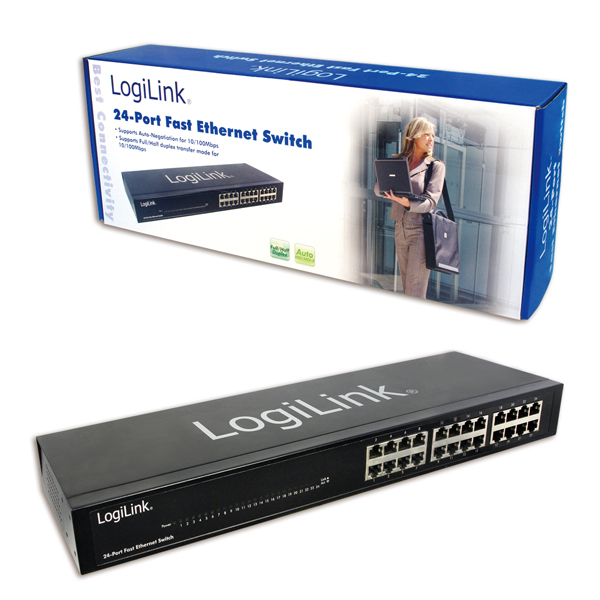

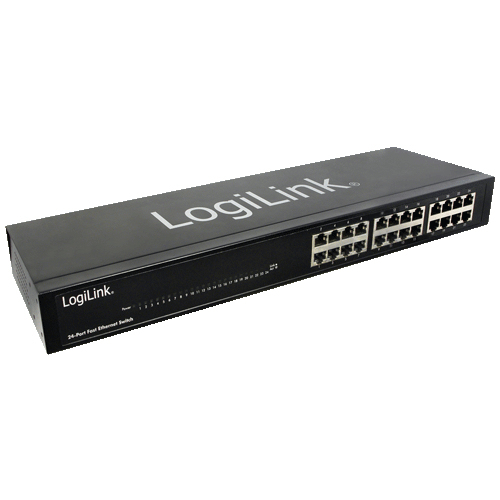

LogiLink NS0025A network switch Unmanaged Black
Model NS0025AEAN 4260112572925
30 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Networking standardsIEEE 802.3, IEEE 802.3u
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Networking standards
- IEEE 802.3, IEEE 802.3u
- Brand
- LogiLink
- Category
- Network Switch
- Model
- NS0025A
- Part number
- NS0025A
- EAN / UPC
- 4260112572925
- Also known as
- LogiLink NS0025A network switch Unmanaged Black
Specifications
30 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/20/100/200 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 20 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Bandwidth | 4.8 Gbit/s |
| Input frequency | 50/60 Hz |
| Networking features | Fast Ethernet |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 183 mm |
| Package height | 86 mm |
| Package weight | 1.94 kg |
