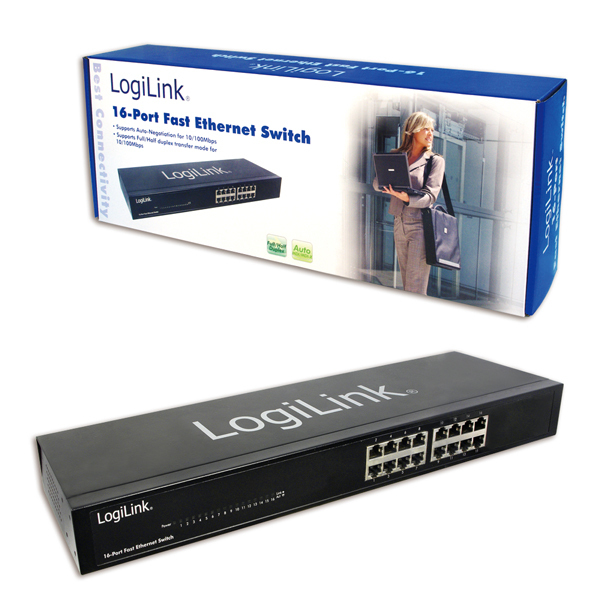

LogiLink 16 Port Switch
Model 16 Port SwitchPart no. NS0029AEAN 4052792005509
28 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- Weight190 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- Networking standardsIEEE 802.3, IEEE 802.3u
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Weight
- 190 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Networking standards
- IEEE 802.3, IEEE 802.3u
- Brand
- LogiLink
- Category
- Network Switch
- Model
- 16 Port Switch
- Part number
- NS0029A
- EAN / UPC
- 4052792005509, 4260113572917
- Also known as
- LogiLink 16 Port Switch Black
Specifications
28 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.1 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10, 20, 100, 200 |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA, CD |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Output power | 20 W |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 200 Mbit/s |
| Dimensions (WxDxH) | 490 x 183 x 86 mm |
| Connectivity technology | Wired |
| Bandwidth | 3.2 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 190 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 508 x 201 x 454 mm |
| Package weight | 1.07 kg |
What people say
Reviews & ratings
LogiLink 16 Port Switch
No reviews yet
Be the first to tell others how LogiLink 16 Port Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LogiLink 16 Port Switch
All network switch comparisons- LogiLink 16 Port Switch vsLogiLink NS0025A network switch Unmanaged BlackCompare specs
- LogiLink 16 Port Switch vsLogiLink Fast Ethernet Desktop SwitchCompare specs
- LogiLink 16 Port Switch vsLogiLink NS0052 network switch Unmanaged WhiteCompare specs
- LogiLink 16 Port Switch vsLogiLink NS0053 network switch Unmanaged WhiteCompare specs
- LogiLink 16 Port Switch vsD-Link 8-Port Gigabit PoE Unmanaged Desktop SwitchCompare specs
- LogiLink 16 Port Switch vsIntellinet 520409 network switch BlackCompare specs

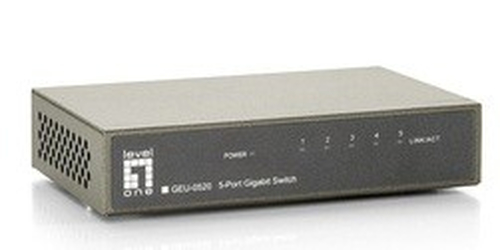

- LogiLink 16 Port Switch vsLevelOne GEU-0520 network switch Unmanaged GreyCompare specs
