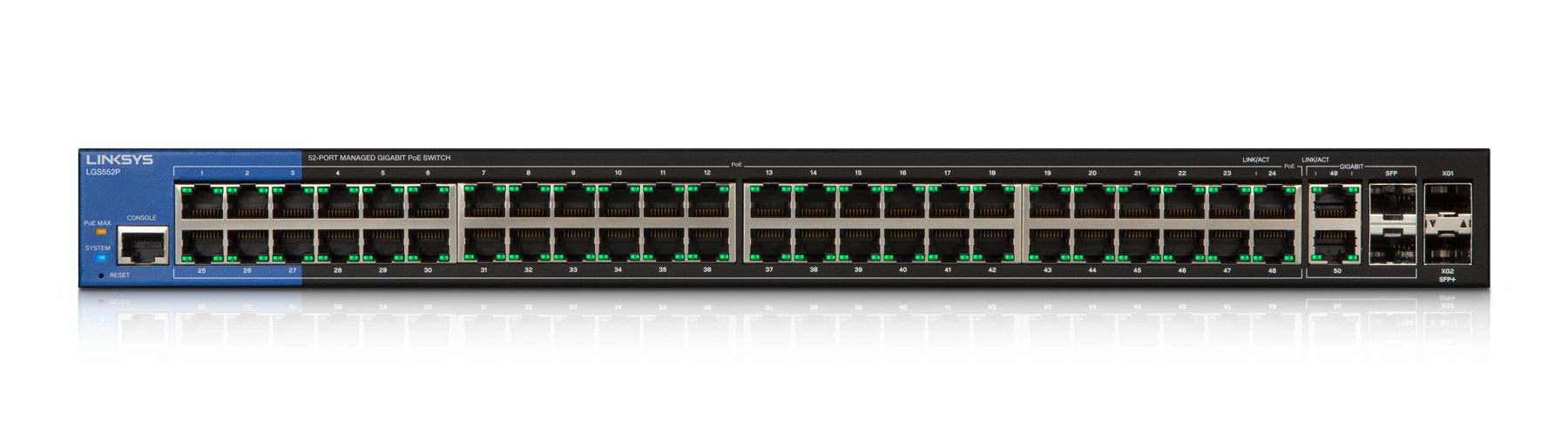

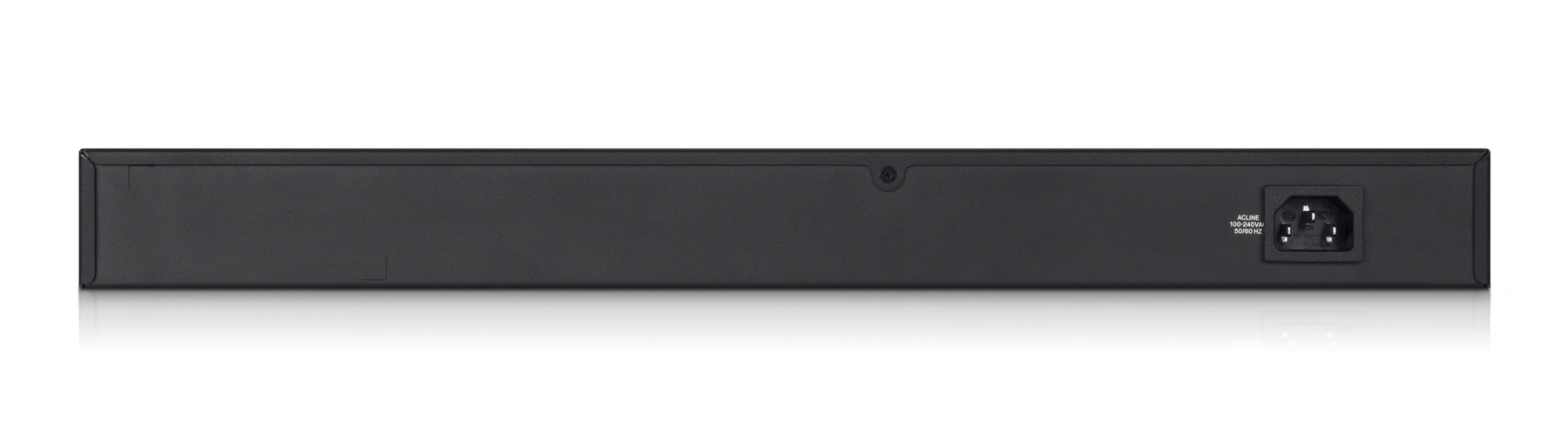

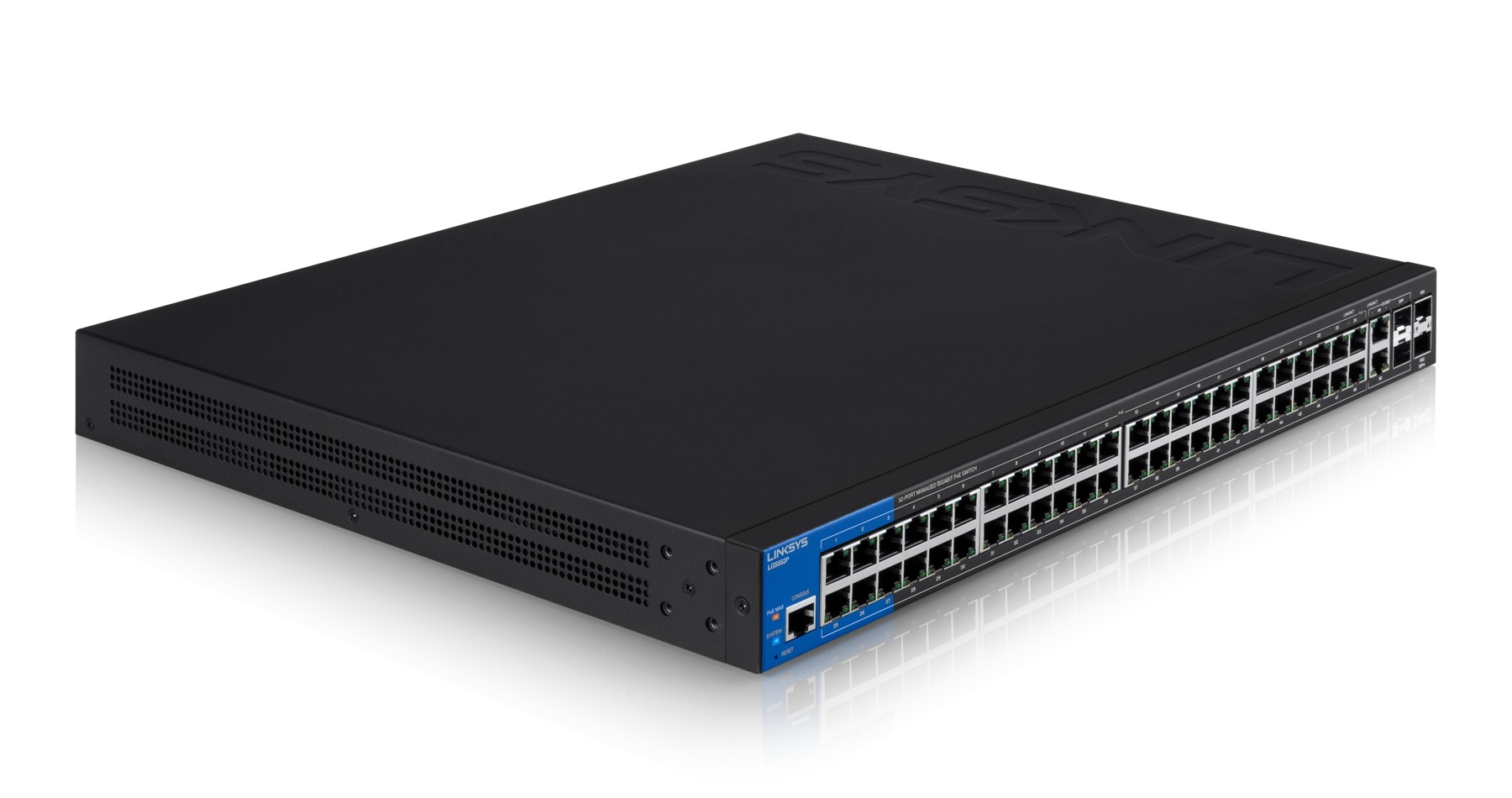

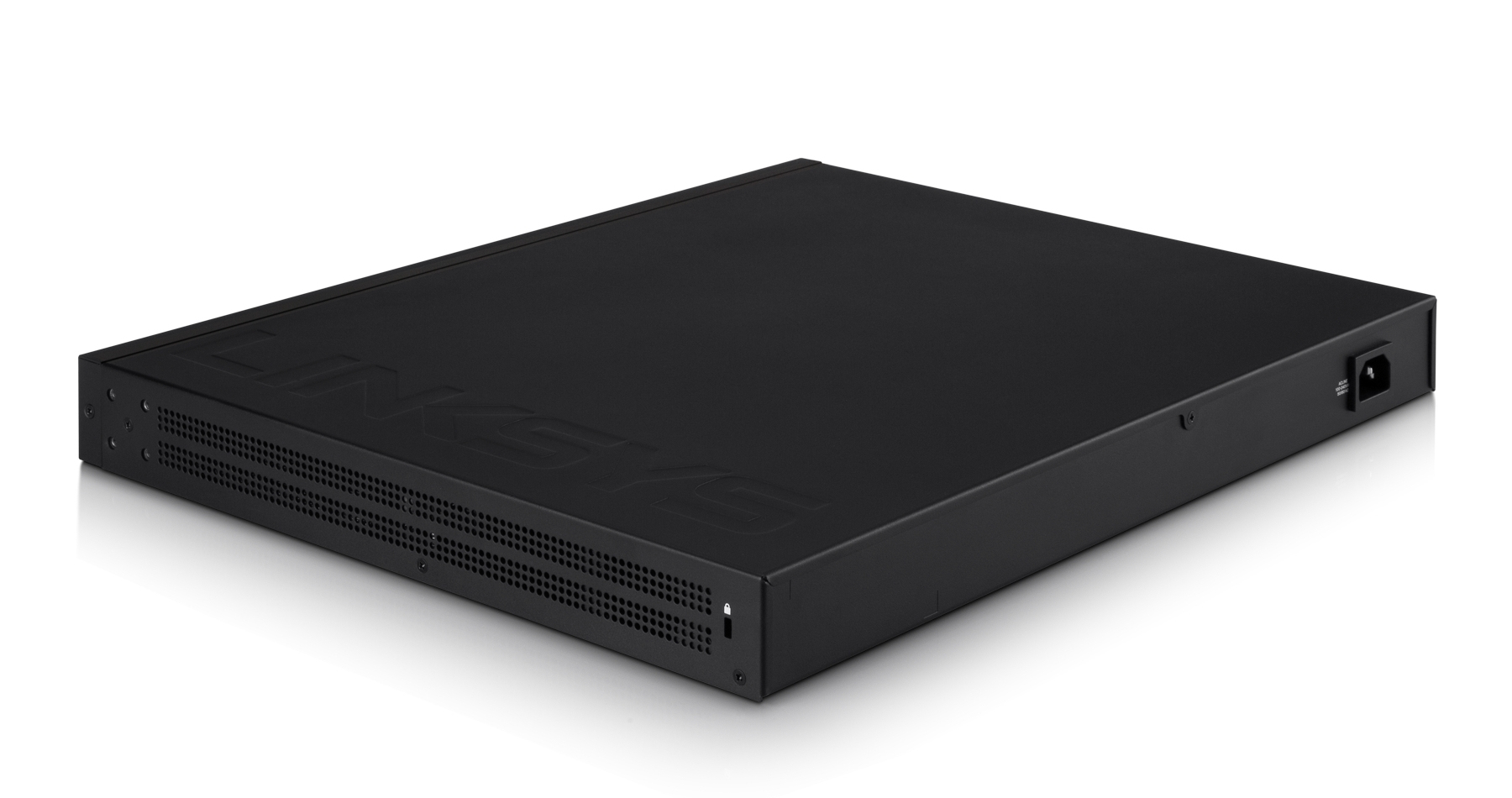

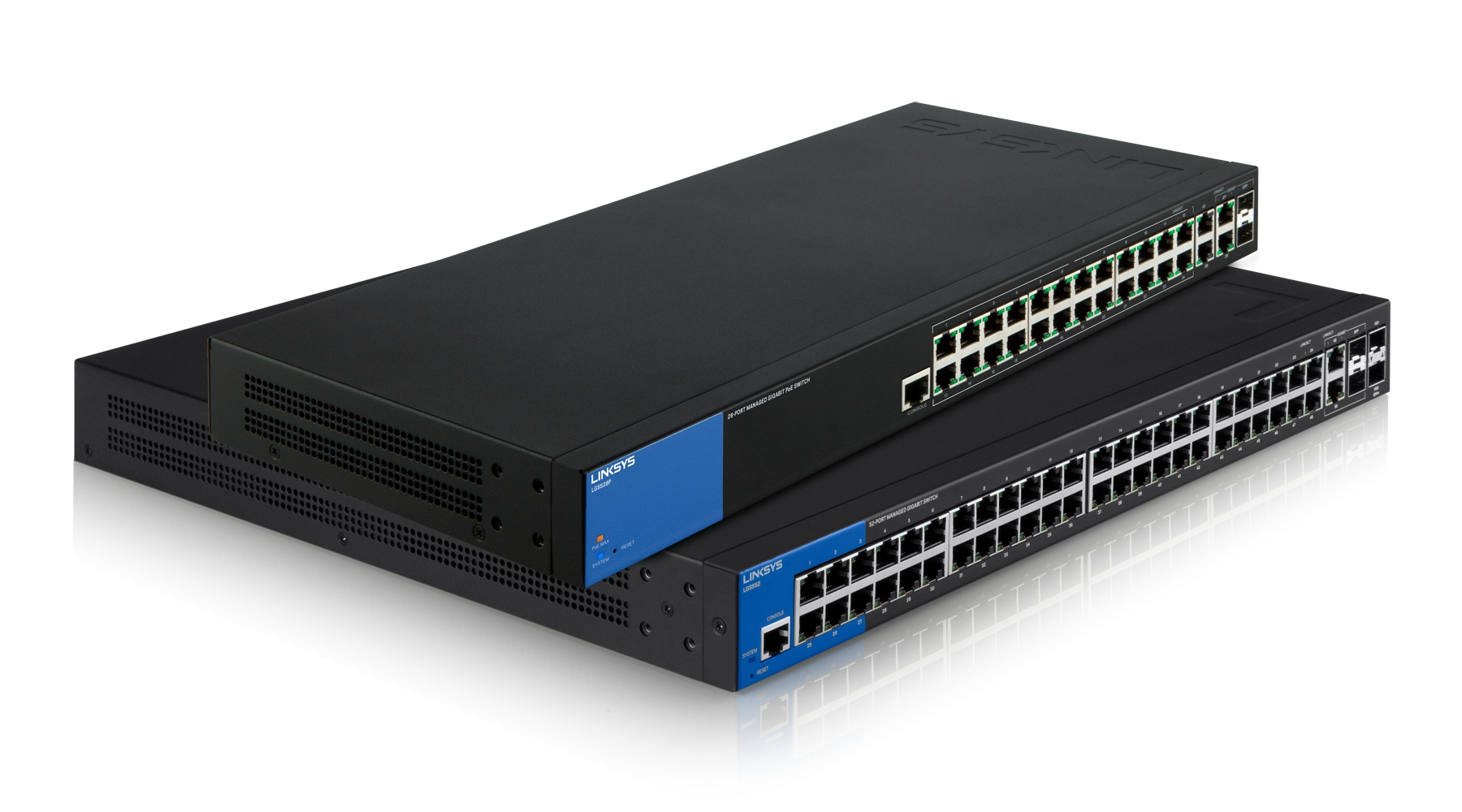

Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P)
Model LGS552P-EUEAN 745883635337
61 specifications
- Memory128 MB
- Type1U
- Weight5.32 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity50
Overview
- Memory
- 128 MB
- Type
- 1U
- Weight
- 5.32 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 50
- Brand
- Linksys
- Category
- Network Switch
- Model
- LGS552P-EU
- Part number
- LGS552P-EU
- EAN / UPC
- 745883635337, 4112015030159, 4260184664085, 6092015015852
- Also known as
- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P)
Specifications
61 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 50 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 52 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | MiniGBIC, SFP+ |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 140 Gbit/s |
| Throughput | 104.16 Mpps |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP/HTTPS, Telnet, TFTP, PING, SNTP, SNMP v1/ v2c |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, System |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 128 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8.4 A |
| Power consumption (typical) | 66.62 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 375 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44.5 mm |
| Weight | 5.32 kg |
What people say
Reviews & ratings
Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P)
No reviews yet
Be the first to tell others how Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P)
All network switch comparisons- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsLinksys 18-Port Smart Gigabit PoE+ Switch (LGS318P)Compare specs

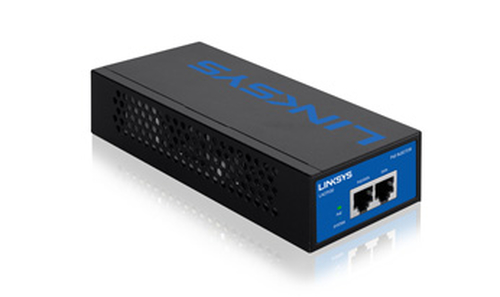

- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsLinksys LACPI30 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs

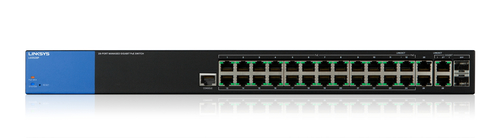

- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsLinksys 28-Port Managed PoE+ Gigabit Switch (LGS528P)Compare specs

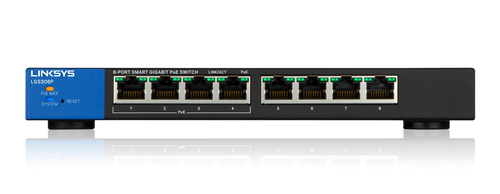

- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsLinksys 8-Port Smart Gigabit PoE+ Switch (LGS308P)Compare specs
- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsAllied Telesis GS950/48PS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, GreyCompare specs
- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsAllied Telesis GS950/16PS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, GreyCompare specs
- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsNETGEAR FS728TLP-100NAS network switch Managed L2+/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U BlackCompare specs

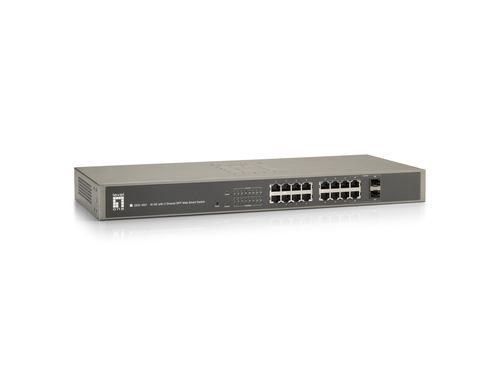

- Linksys 52-Port Managed PoE+ Gigabit Switch (LGS552P) vsLevelOne 16-Port Web Smart Gigabit Ethernet Switch, 2 Ports SFP/RJ45 ComboCompare specs
