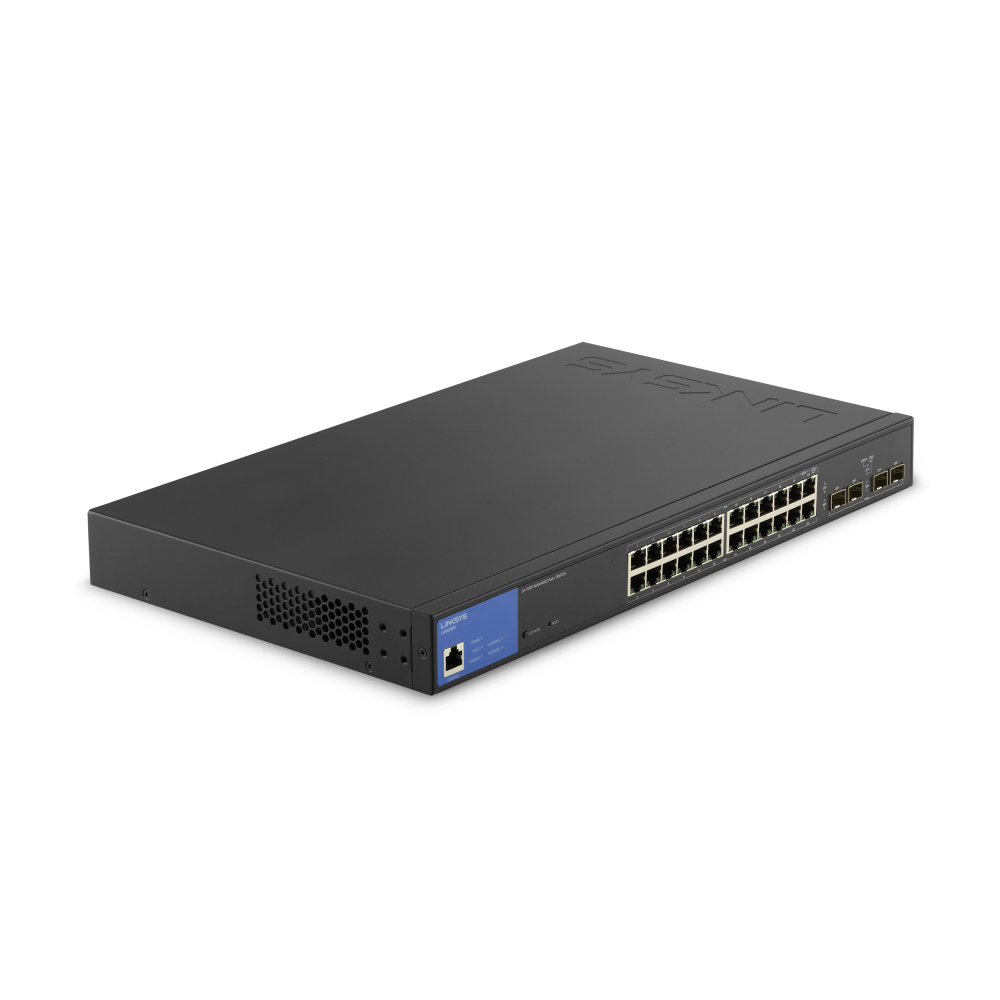

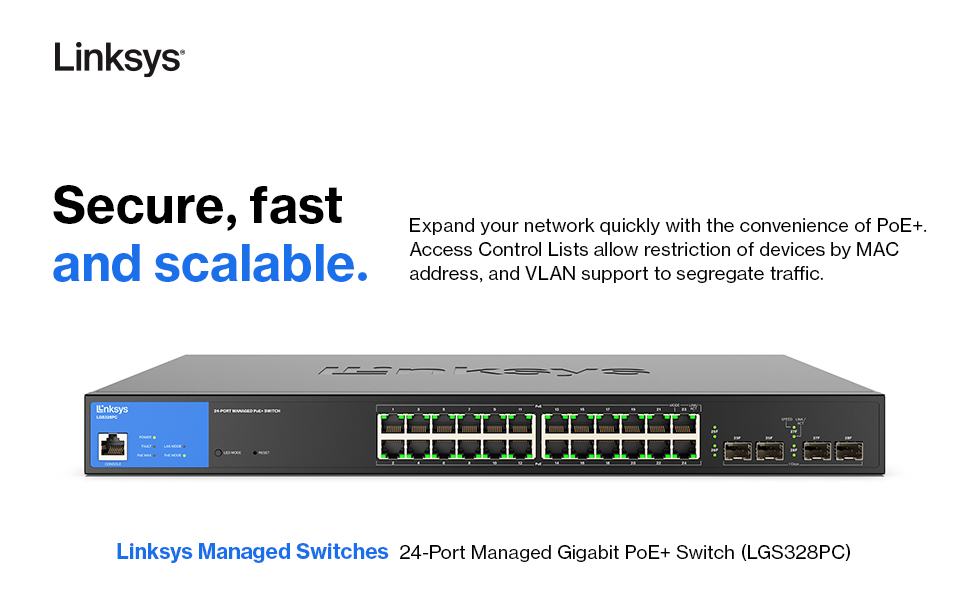

24 Port Gigabit Managed Network Switch with
4 x 1Gb Uplink SFP Slots
Model LGS328PCEAN 745883822287
73 specifications
- Memory250 MB
- Weight3.94 kg
- ColourBlack, Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Networking standardsIEEE 802.1Q, IEEE 802.1p
Overview
- Memory
- 250 MB
- Weight
- 3.94 kg
- Colour
- Black, Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Networking standards
- IEEE 802.1Q, IEEE 802.1p
- Brand
- Linksys
- Category
- Network Switch
- Model
- LGS328PC
- Part number
- LGS328PC
- EAN / UPC
- 745883822287, 745883822294, 4260184672394, 4260184673513
- Also known as
- Linksys 24 Port Gigabit Managed Network Switch with 4 x 1Gb Uplink SFP Slots
Specifications
73 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |

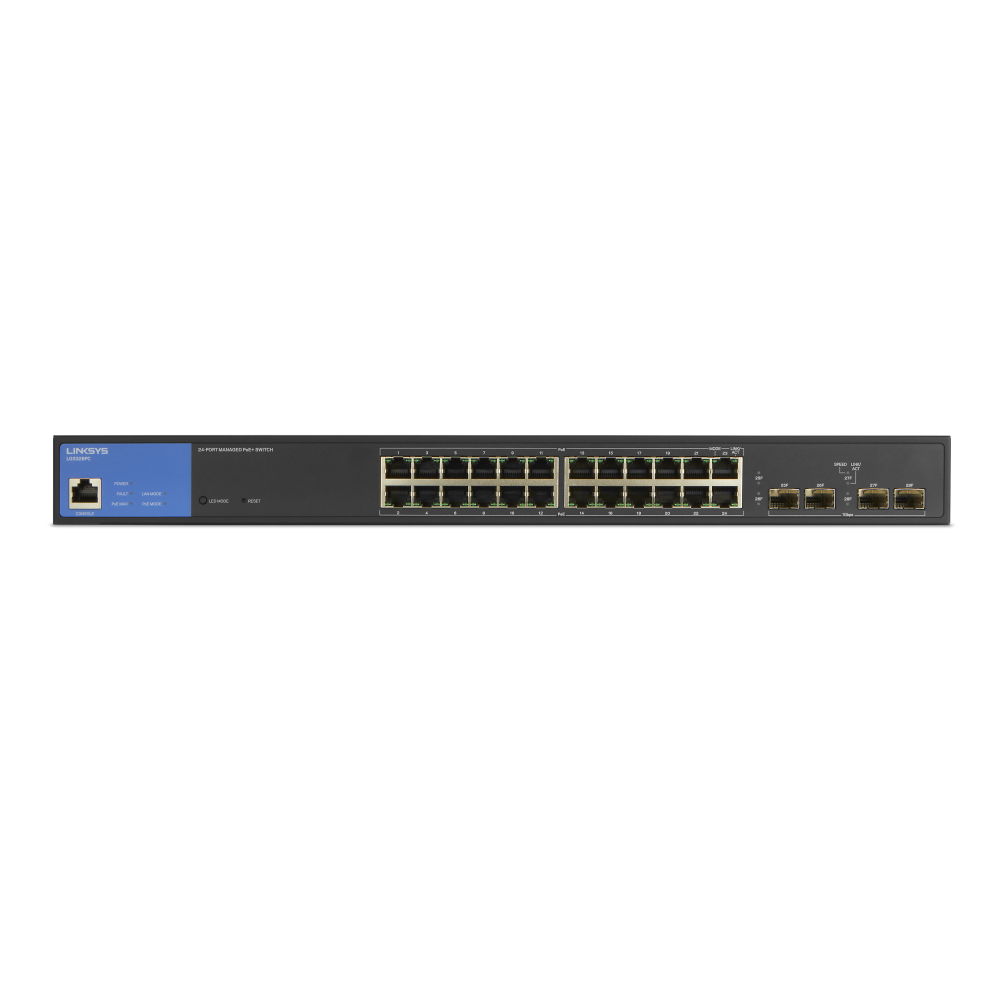

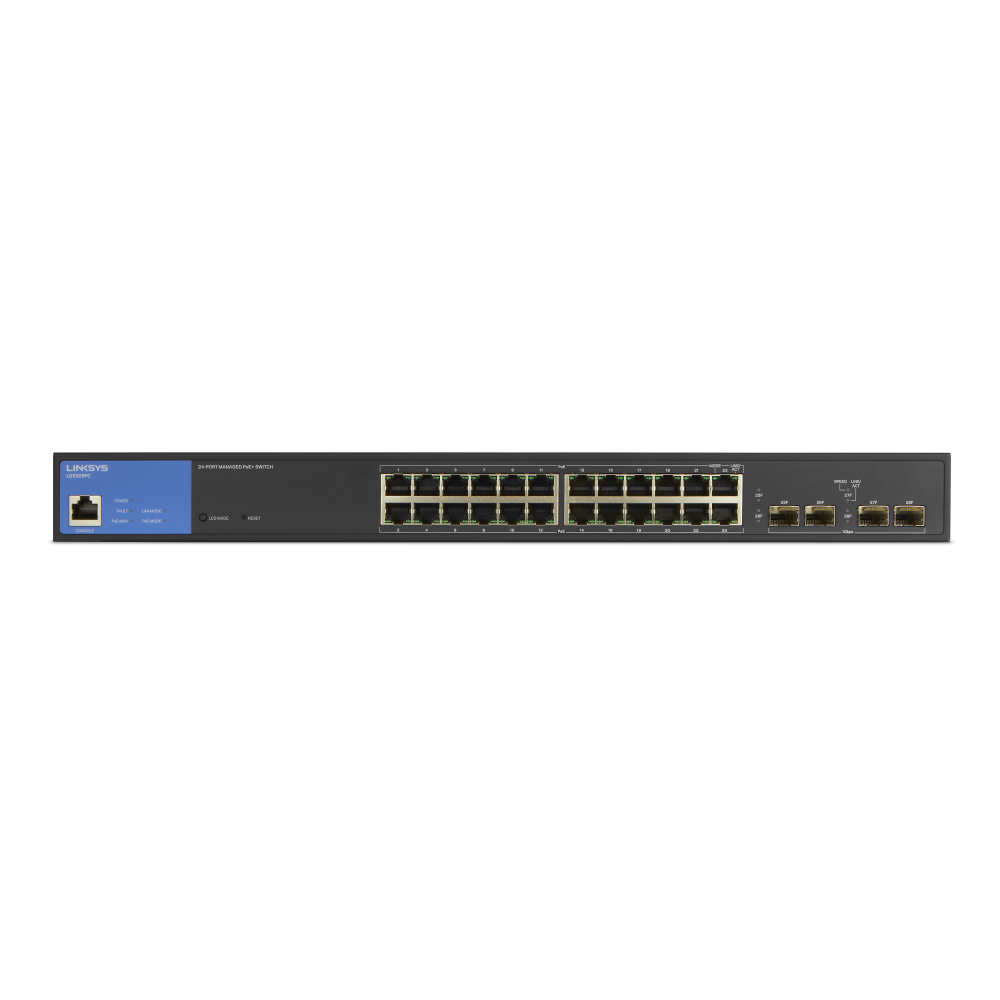

Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN |
| Authentication type | RADIUS |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP, HTTPS |
| IPv4 FIB entries | 63 |
| IPv6 FIB entries | 21 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black, Blue |
| Housing material | Metal |
| LED indicators | Fault, Power |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 250 MB |
| Firmware upgradeable | Yes |

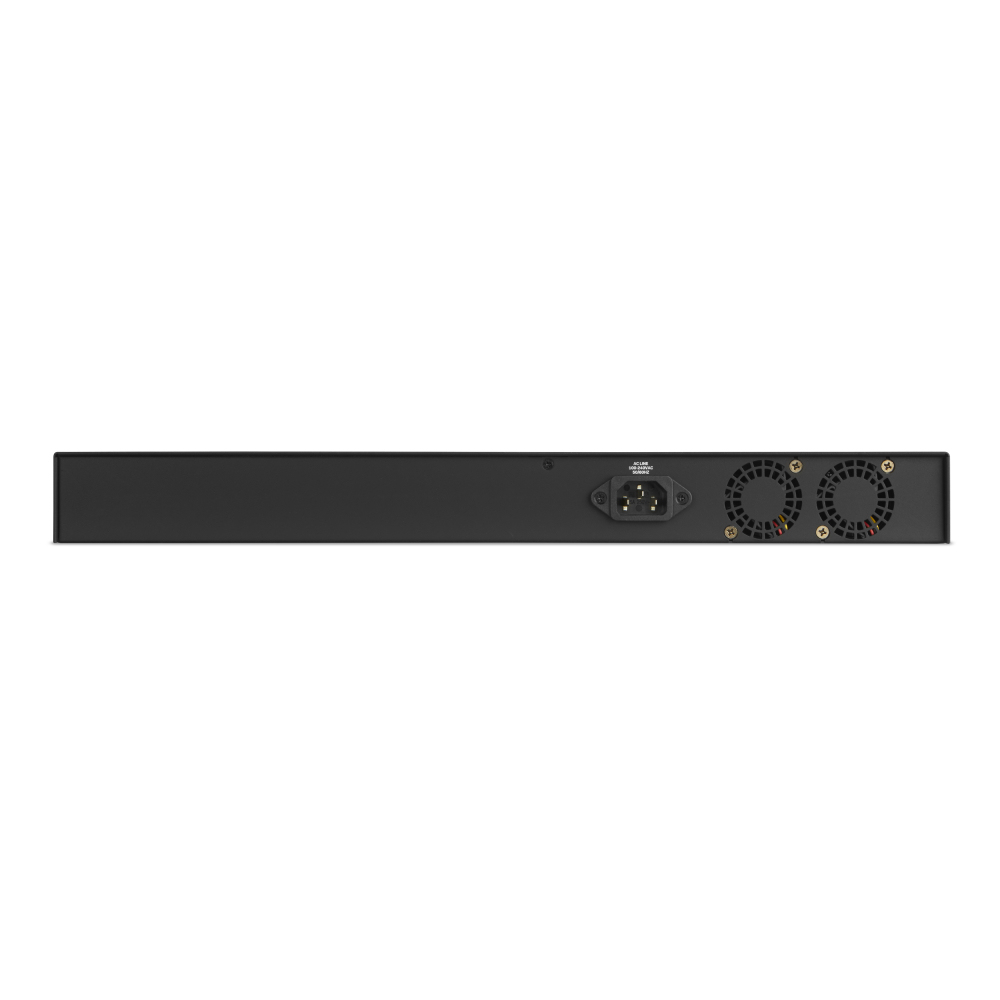

Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Power consumption (max) | 305.24 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Total Power over Ethernet (PoE) budget | 250 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433.8 mm |
| Depth | 253.5 mm |
| Height | 44.7 mm |
| Weight | 3.94 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 522 mm |
| Package depth | 364.5 mm |
| Package height | 99.1 mm |
| Package weight | 4.55 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 541.8 mm |
| Master (outer) case length | 332 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 392.2 mm |
| Master (outer) case gross weight | 14.6 kg |
| Products per master (outer) case | 3 pc(s) |
