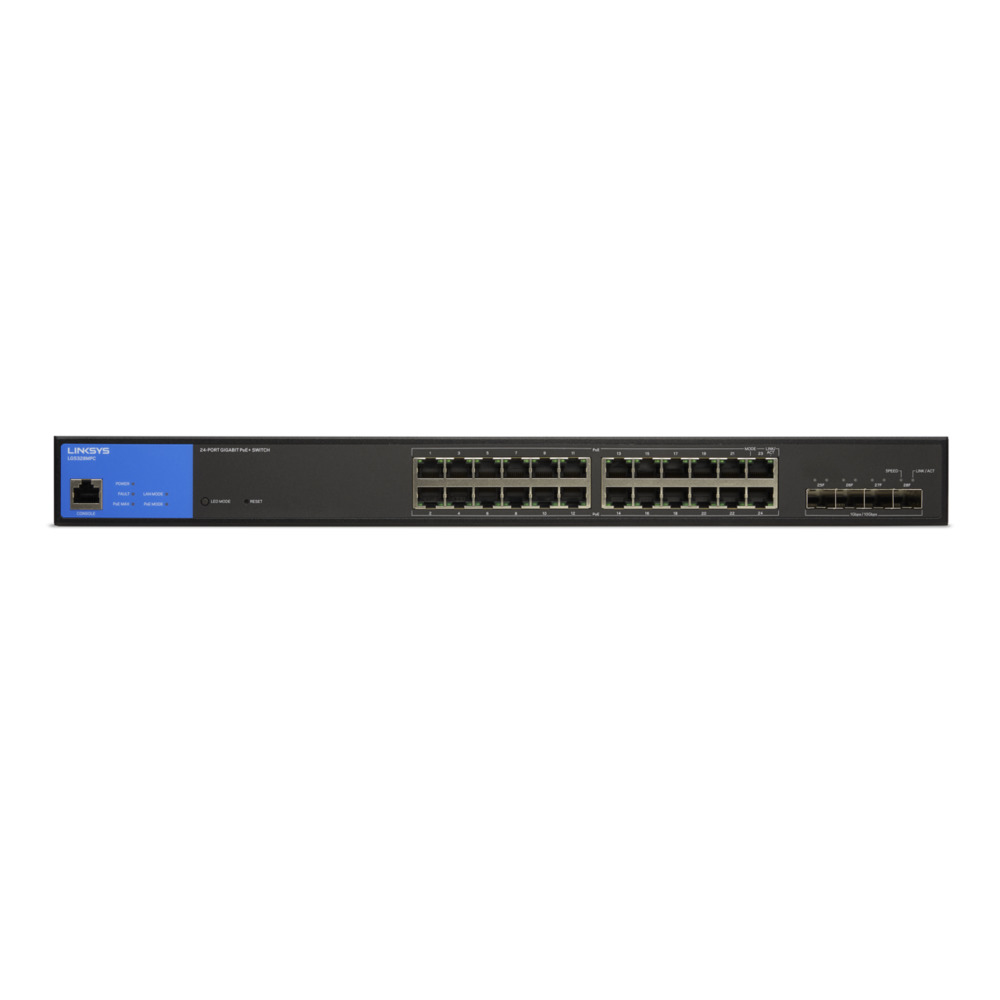

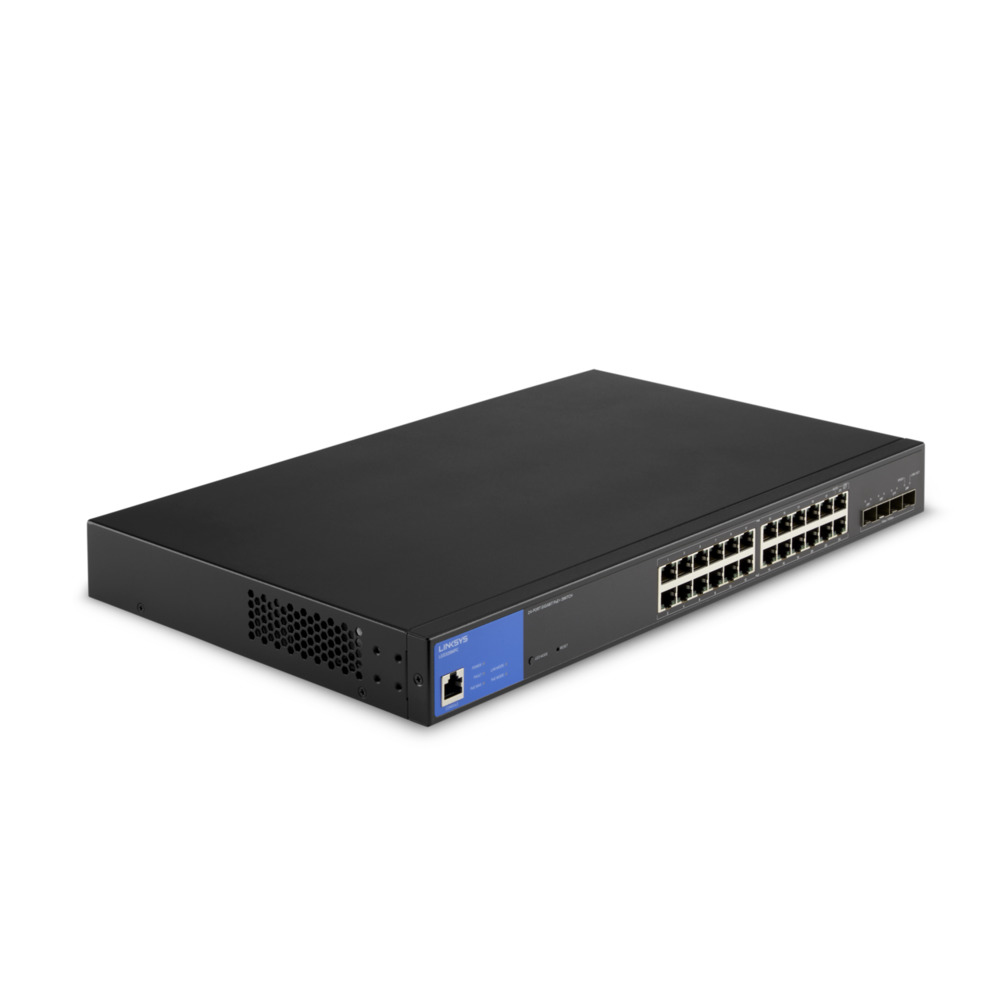

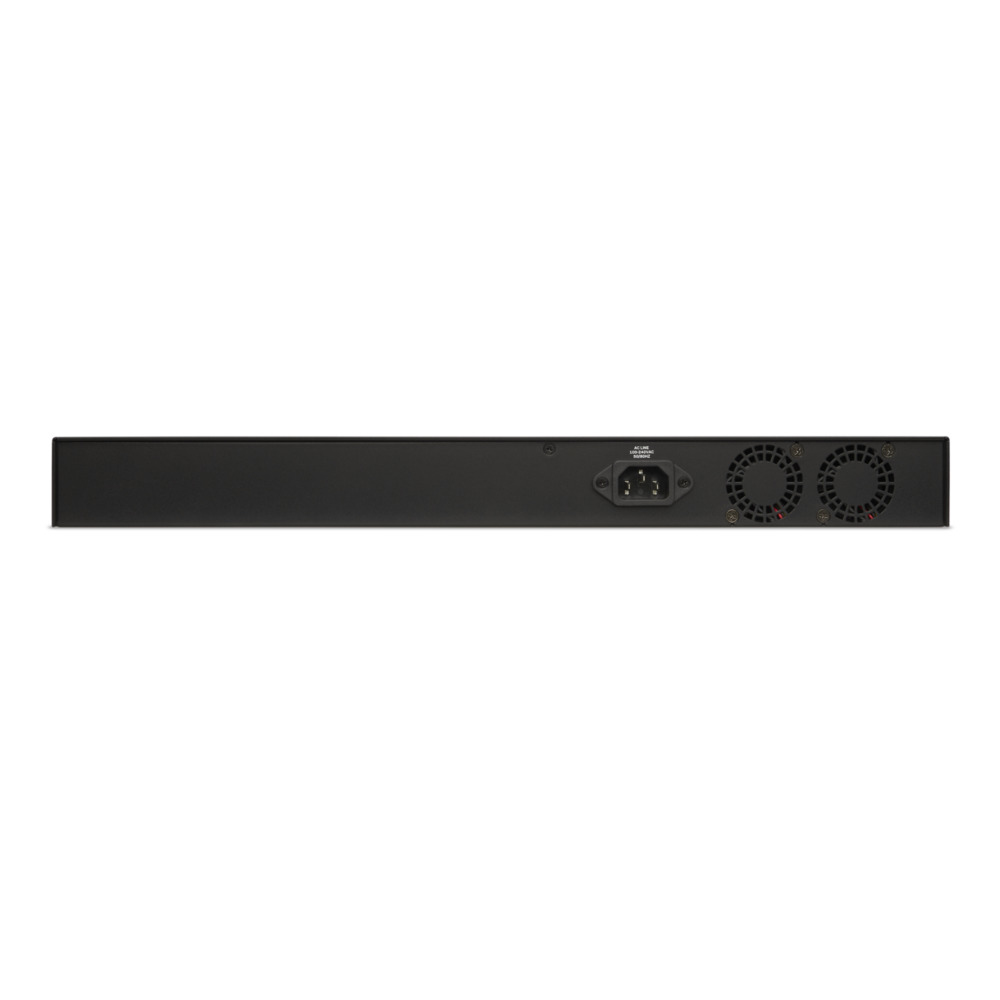

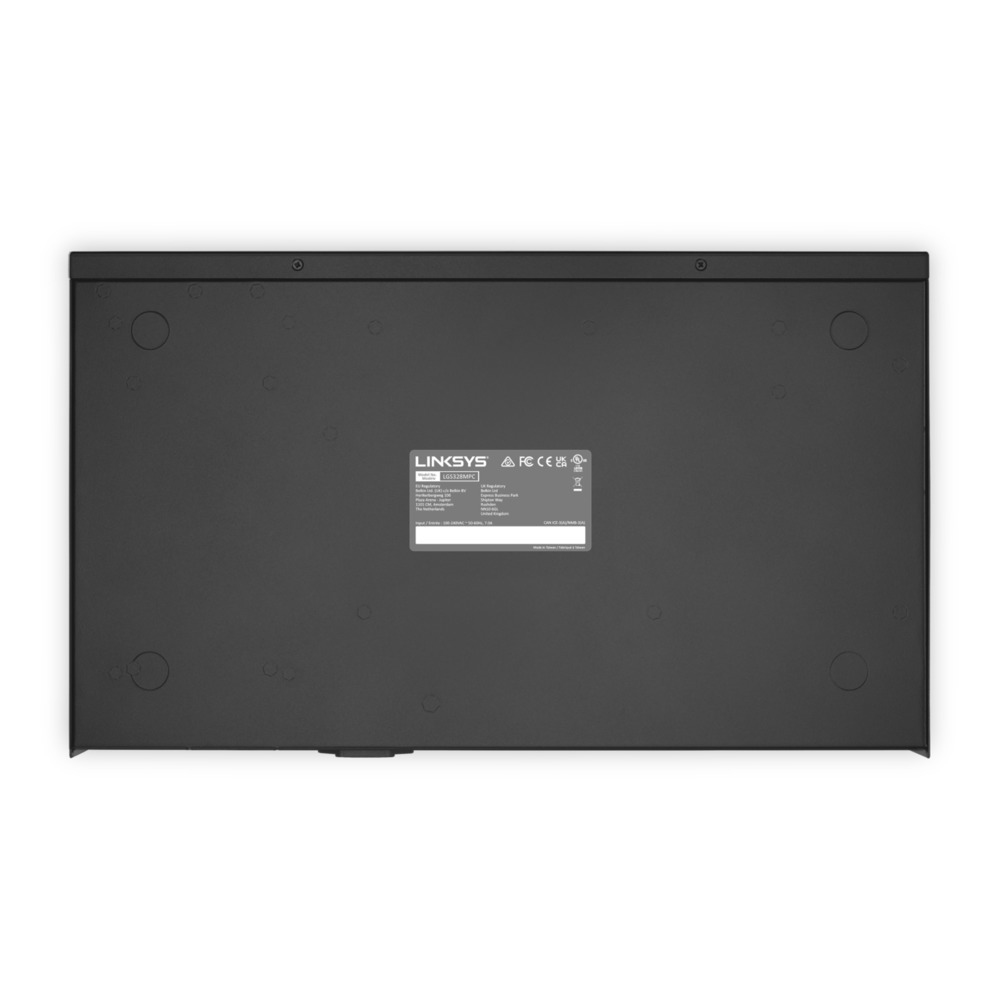

LGS328MPC network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Blue
Model LGS328MPCEAN 745883810178
50 specifications
- Memory512 MB
- Weight3.8 kg
- ColourBlack, Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Memory
- 512 MB
- Weight
- 3.8 kg
- Colour
- Black, Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- Linksys
- Category
- Network Switch
- Model
- LGS328MPC
- Part numbers
- LGS328MPC, LGS328MPC-EU
- EAN / UPC
- 745883810178, 745883814596, 4260184670666
- Also known as
- Linksys LGS328MPC network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Blue
Specifications
50 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.4 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Security algorithms | HTTPS, SNMP |
Protocols
| Specification | Value |
|---|---|
| Multicast protocols | IGMP, MLD |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue |
| LED indicators | Fault, LAN, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 7 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 257 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 3.8 kg |
